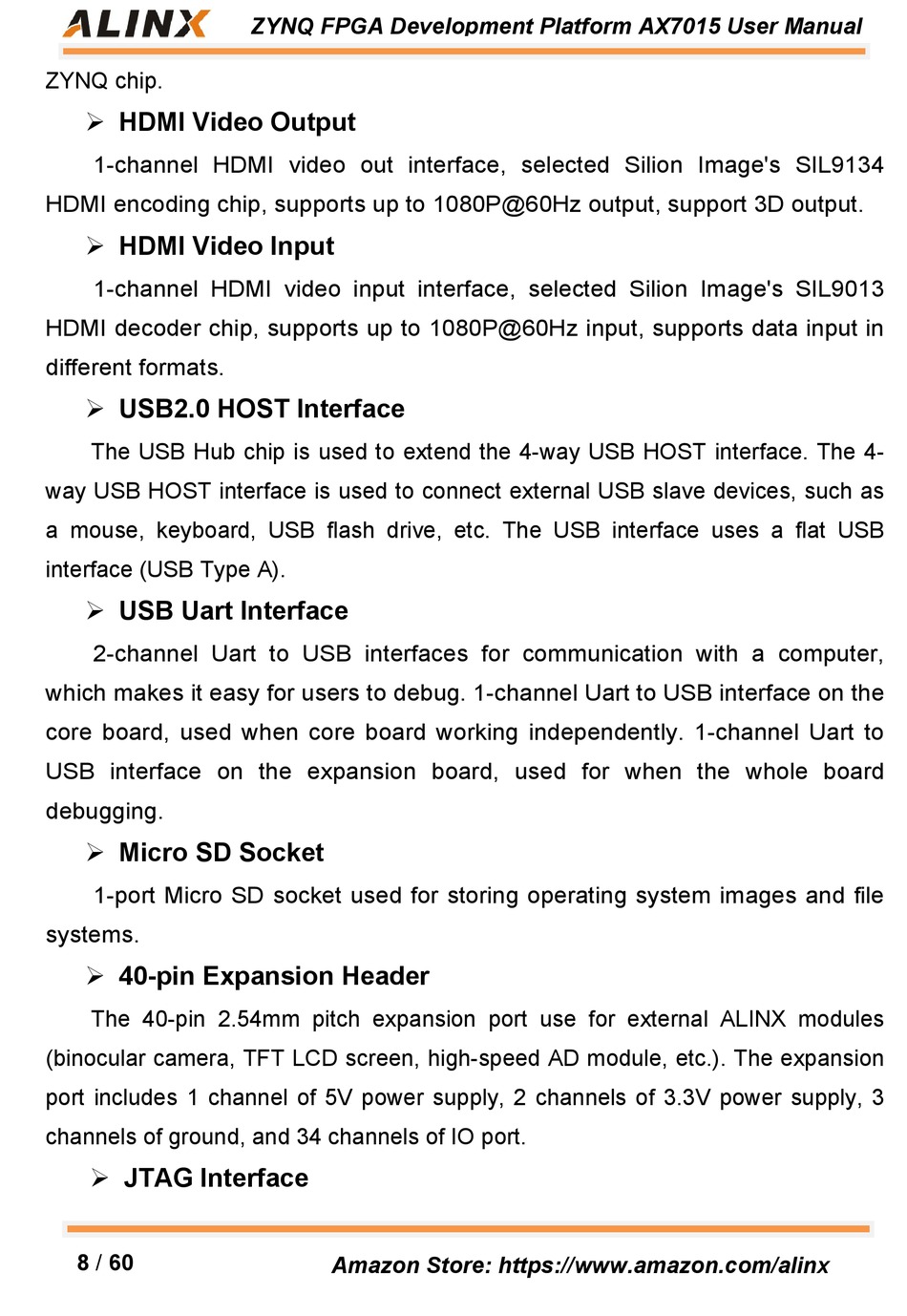

ZYNQ chip.
 HDMI Video Output
1-channel HDMI video out interface, selected Silion Image's SIL9134
HDMI encoding chip, supports up to 1080P@60Hz output, support 3D output.
 HDMI Video Input
1-channel HDMI video input interface, selected Silion Image's SIL9013
HDMI decoder chip, supports up to 1080P@60Hz input, supports data input in
different formats.
 USB2.0 HOST Interface
The USB Hub chip is used to extend the 4-way USB HOST interface. The 4-
way USB HOST interface is used to connect external USB slave devices, such as
a mouse, keyboard, USB flash drive, etc. The USB interface uses a flat USB
interface (USB Type A).
 USB Uart Interface
2-channel Uart to USB interfaces for communication with a computer,
which makes it easy for users to debug. 1-channel Uart to USB interface on the
core board, used when core board working independently. 1-channel Uart to
USB interface on the expansion board, used for when the whole board
debugging.
 Micro SD Socket
1-port Micro SD socket used for storing operating system images and file
systems.
 40-pin Expansion Header
The 40-pin 2.54mm pitch expansion port use for external ALINX modules
(binocular camera, TFT LCD screen, high-speed AD module, etc.). The expansion
port includes 1 channel of 5V power supply, 2 channels of 3.3V power supply, 3
channels of ground, and 34 channels of IO port.
