Part 3.4: HDMI Output Interface

The HDMI output interface is implemented by Silion Image's SIL9134 HDMI
(DVI) encoding chip, which supports up to 1080P@60Hz output and supports 3D
output.
Among them, the SIL9134 video digital interface, audio digital interface and
I2C configuration interface are connected with the BANK34/35 IO of the
ZYNQ7000 PL part. The ZYNQ7000 system initializes and controls the SIL9134
through the I2C pin.

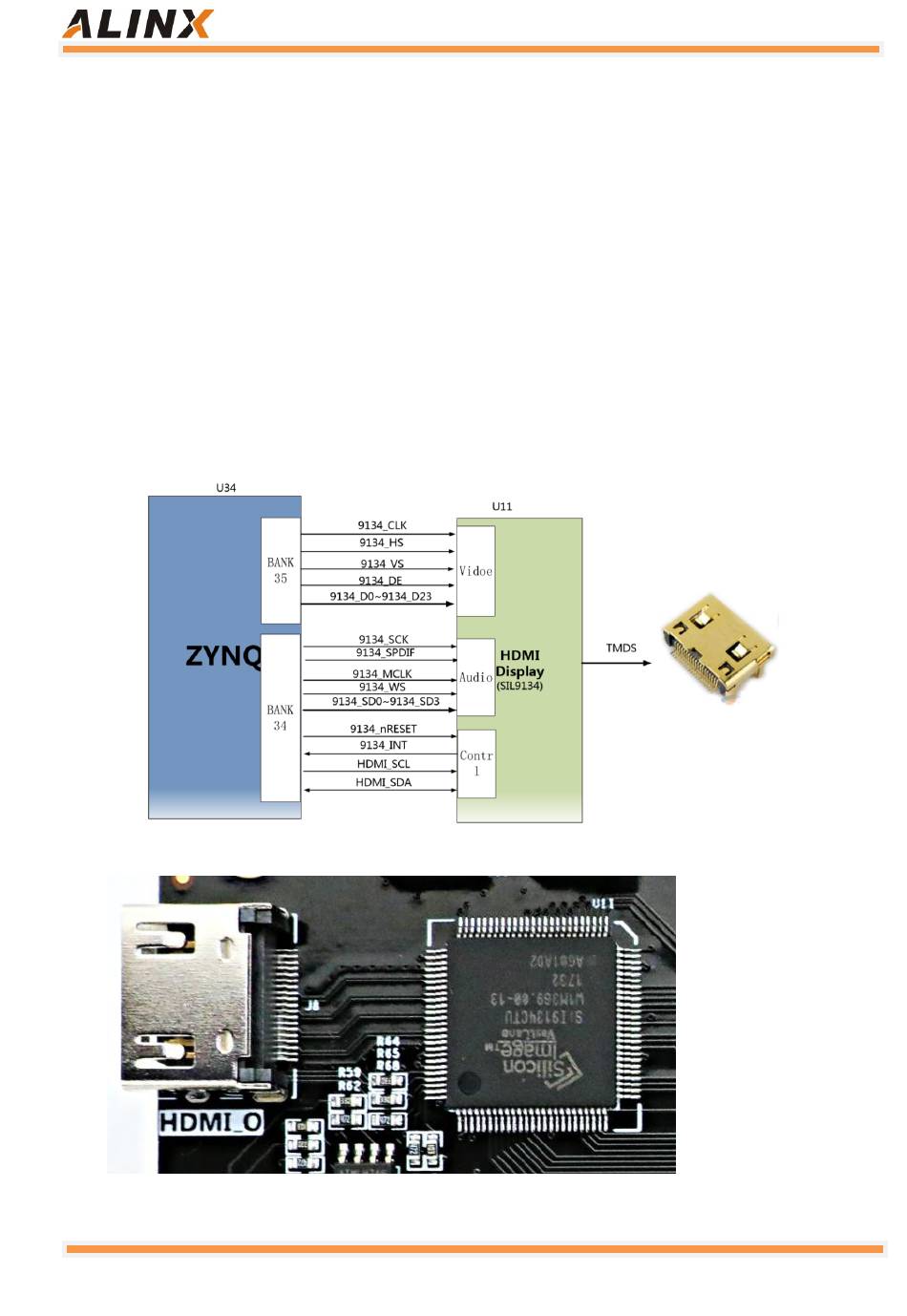

The hardware connection diagram of SIL9134 chip and ZYNQ7000 is shown
in Figure 3-4-1.
Figure3-4-1: The hardware connection of SIL9134 chip and ZYNQ7000
Figure3-4-2: The HDMI Output Interface on the Expansion Board
