SHB150R LGA1151 Full-size CPU Card

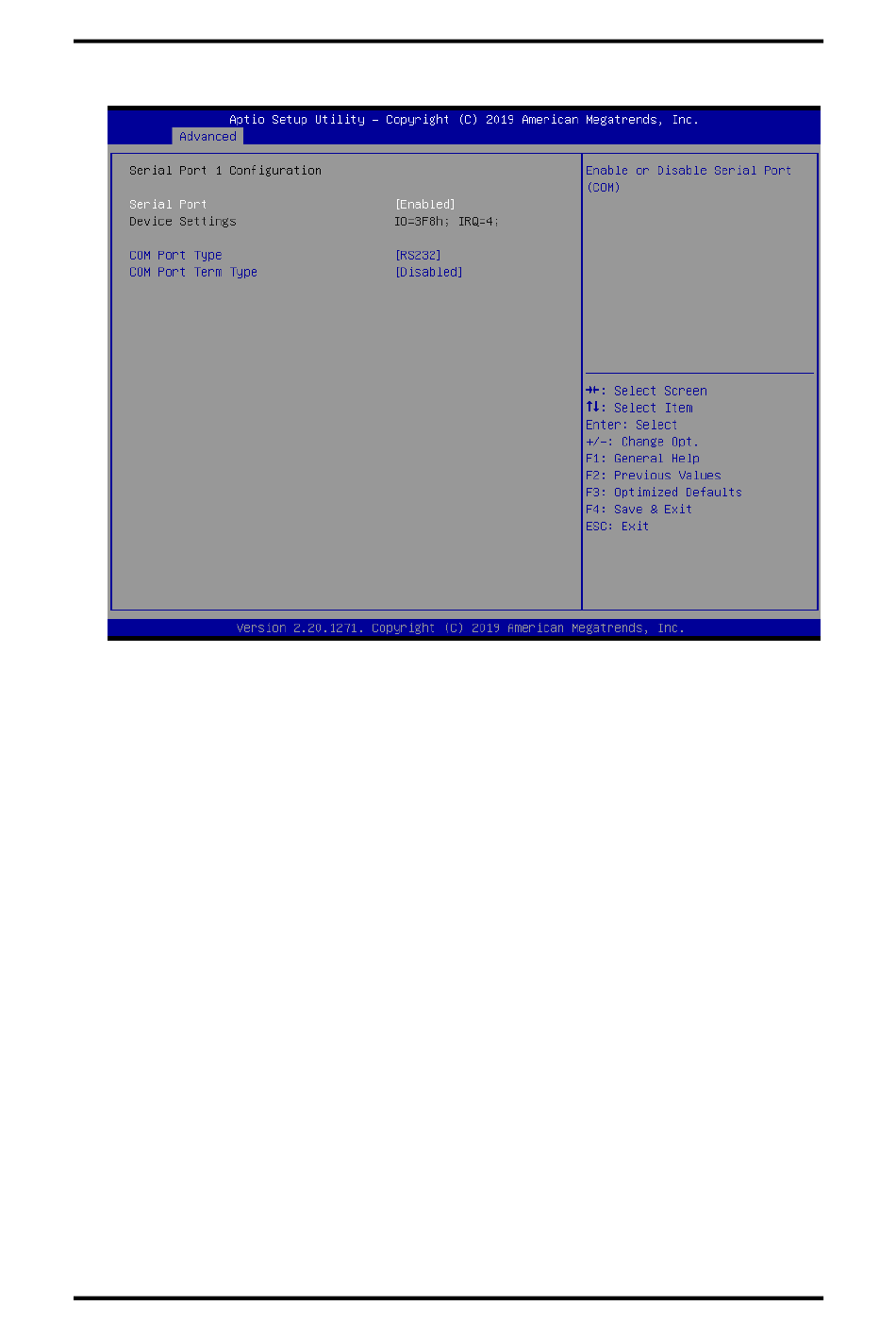

Serial Port 1 Configuration
Serial Port
Enable or disable serial port 1. The optimal setting for base I/O address is 3F8h and for
interrupt request address is IRQ4.
Change Settings
Use this item to change base I/O address and IRQ settings.
COM Port Type
Select RS-232/422/485 communication mode for serial port 1.
COM Port Term Type
Enable or disable serial port termination.
AMI BIOS Setup Utility
33
