Step 3 Processor installation:
 Lift the processor package from shipping media by grasping the substrate edges.

Scan the processor package gold pads for any presence of foreign material. If necessary,
the gold pads can be wiped clean with a soft lint-free cloth and isopropyl alcohol.
 Locate connection 1 indicator on the processor which aligns with connection 1 indicator
chamfer on the socket, and notice processor keying features that line up with posts along
socket walls.

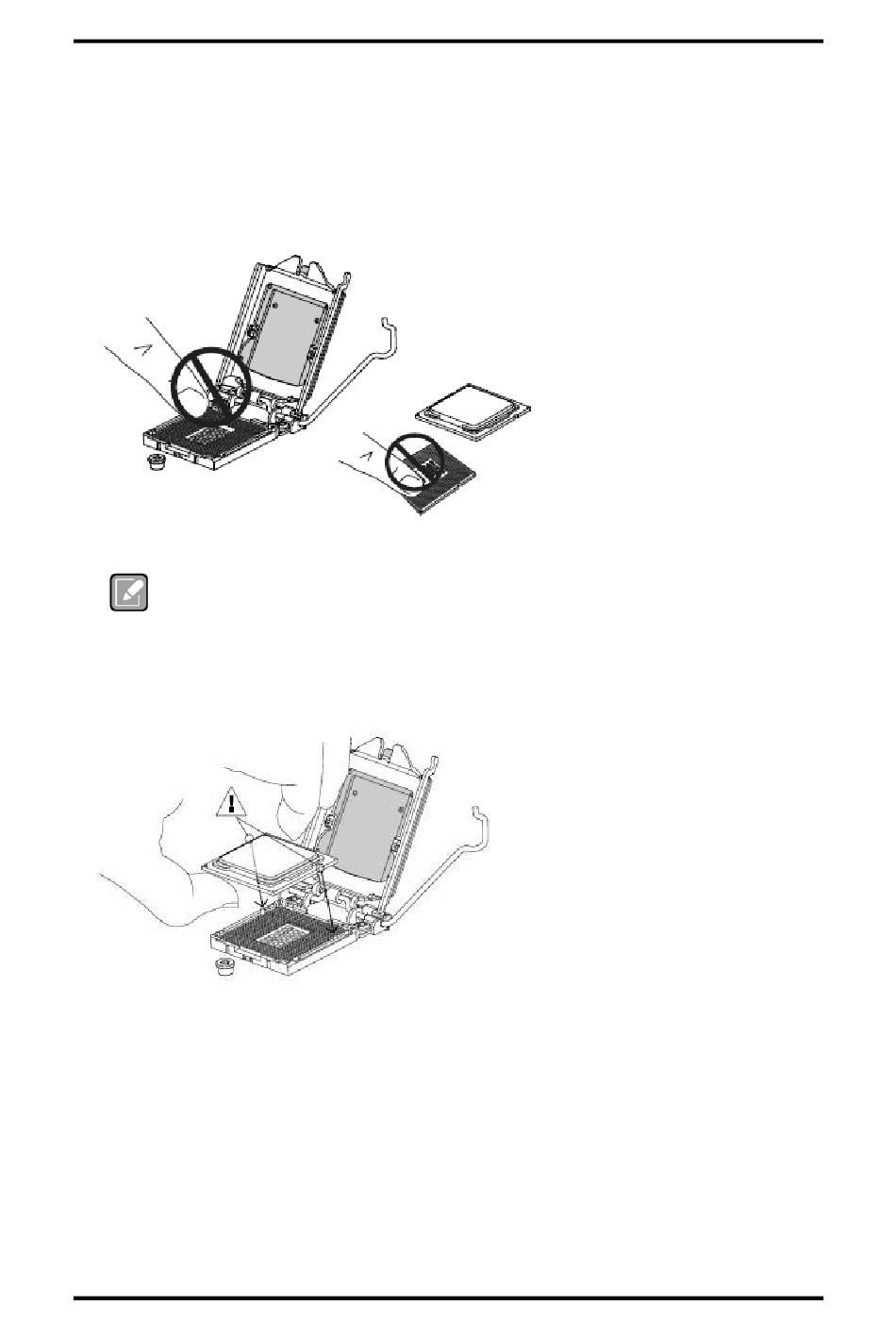

Never touch fragile socket contacts to avoid damage and do not touch processor
sensitive contacts at any time during Installation.
Note
 Carefully place the processor into the socket body vertically (see image below).
Hardware Installation
SHB150R LGA1151 Full-size CPU Card
