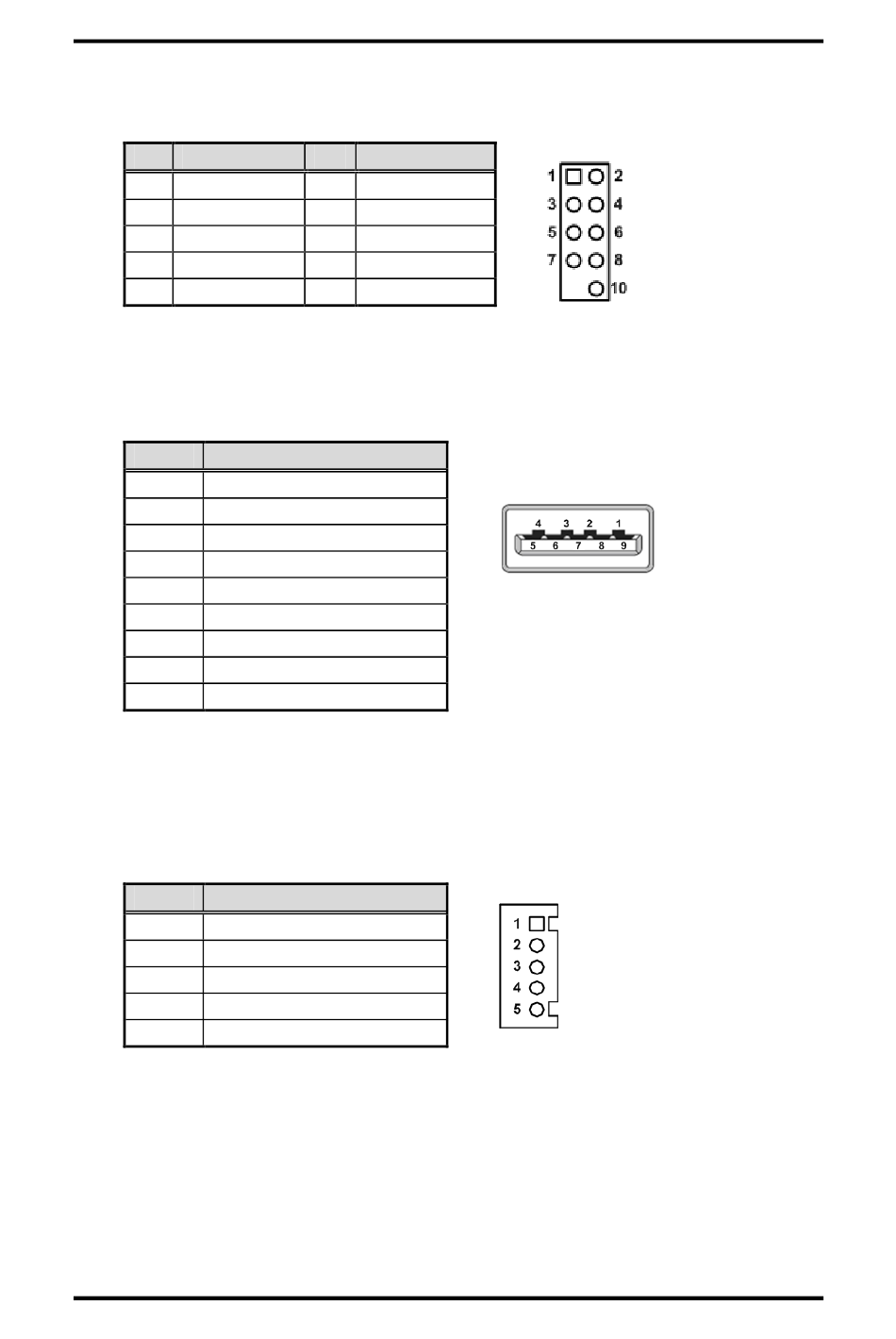

2.4.5

Internal USB 2.0 Connectors (CN10)

These are 5x2-pin p=2.54mm headers for USB 2.0 interface.
Pin Signal
1 USB_PWR
3 USB -
5 USB +
7 GND
2.4.6

Rear I/O USB 3.1 (Gen1) Connectors (CN12 and CN15)

These are standard USB (Universal Serial Bus) 3.0 connectors on the rear I/O for
installing USB peripherals such as a keyboard, mouse, scanner, etc.
Pin Signal
1 VCC
2 D-
3 D+
4 GND
5 StdA_SSRX-
6 StdA_SSRX+
7 GND_DRAIN
8 StdA_SSTX-
9 StdA_SSTX+
2.4.7 Internal PS/2 Keyboard and Mouse Connectors (CN13 and
CN14)
The board has two 5-pin connectors for PS/2 keyboard (CN14) and mouse (CN13)
interfaces.
Pin Signal
1 Clock
2 DATA
3 No connector
4 GND
5 5VSBY
Board and Pin Assignments
Pin Signal
2 USB_PWR
4 USB -
6 USB +
8 GND
10 GND
SHB150R LGA1151 Full-size CPU Card
CN12: USB 3.0 port 0
CN15: USB 3.0 port 1
13
