SHB150R LGA1151 Full-size CPU Card
2.4.18

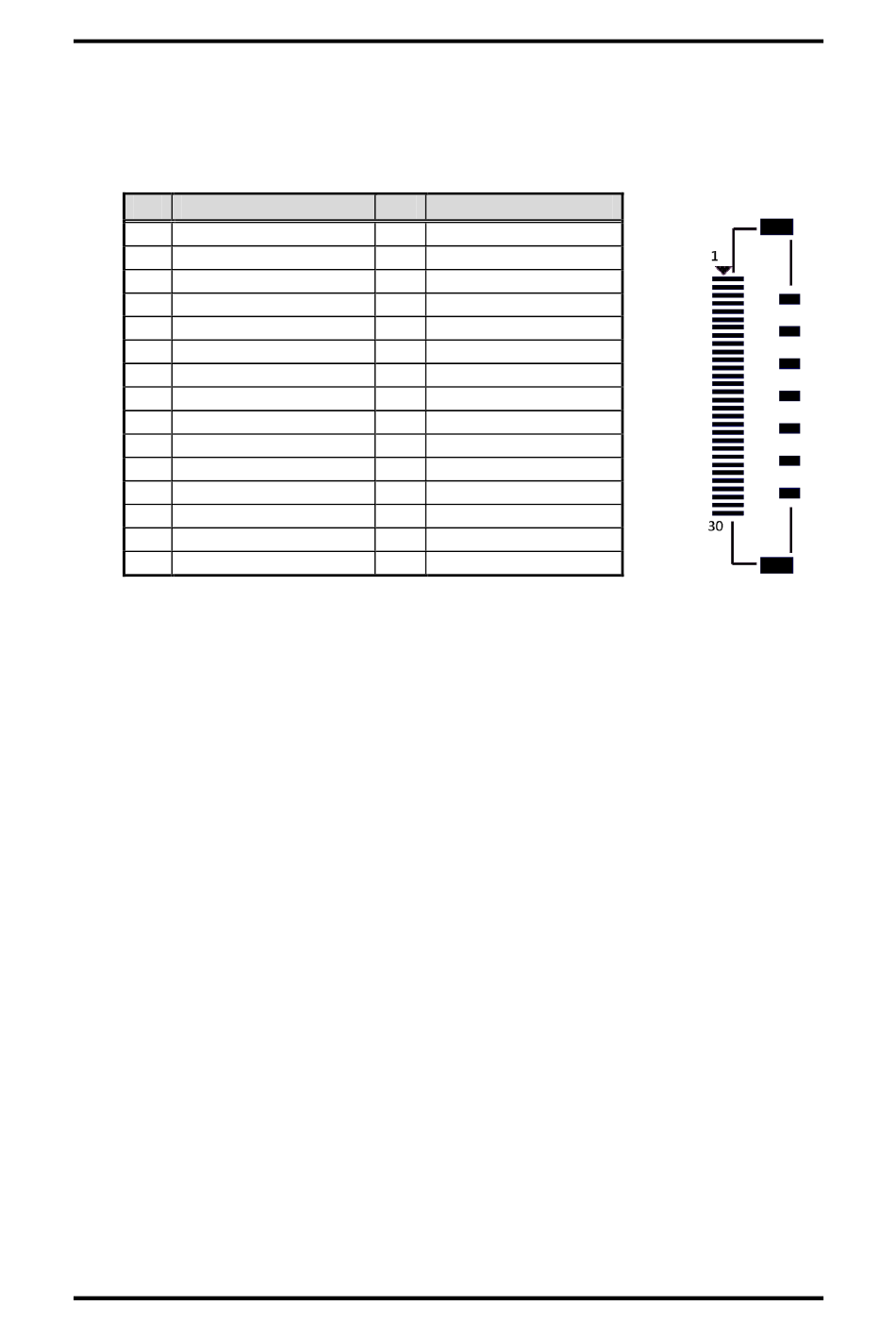

Display Port 1.4 Connector (CN11)

The CN11 is an internal box connector which is defined by Axiomtek for installing Display
Port 1.4 Connector peripherals. The Display Port 1.4 Connector peripherals are
available as an optional kit.
Pin Signal
1 GND
2 DDSP_TX_0_D+
3 DDSP_TX_0_D-
4 GND
5 DDSP_TX_1_D+
6 DDSP_TX_1_D-
7 GND
8 DDSP_TX_2_D+
9 DDSP_TX_2_D-
10 GND
11 DDSP_TX_3_D+
12 DDSP_TX_3_D-
13 GND
14 HDMI_C_DNG_DETECT
15 GND
20
Pin Signal
16 DPC_AUX_D+
17 DPC_AUX_D-
18 +5VS
19 DDPD_HPD_C
20 +3.3VS
21 +3.3VS
22 +3.3VS
23 +3.3VS
24 GND
25 GND
26 GND
27 GND
28 +5VS
29 +5VS
30 +5VS
Board and Pin Assignments
