SHB150R LGA1151 Full-size CPU Card
2.4.4

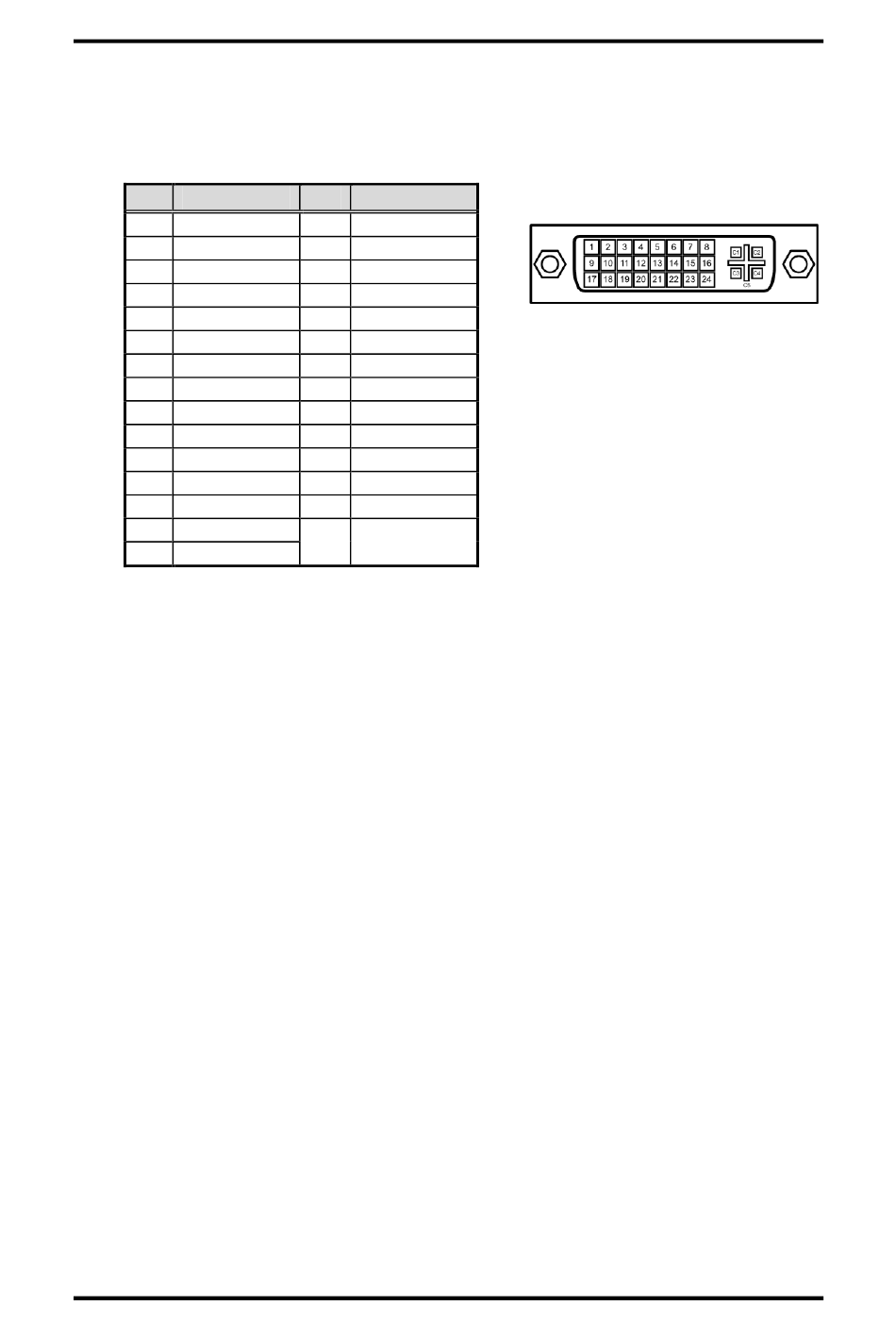

DVI-I Connector (CN8)

DVI-I (integrated, combining digital and analog in the same connector; digital may be
single or dual link) provides transmission of fast and high quality digital video between a
source device (graphics card) and a display device.
Pin Signal
1 DVI_DATA2-
3 GND
5 N.C.
7 DVI_SPD
9 DVI_DATA1-
11 GND
13 N.C.
15 GND
17 DVI_DATA0-
19 GND
21 N.C.
23 DVI_CLK+
C1 Analog red
C3 Analog blue
C5 Analog ground
12
Pin Signal
2 DVI_DATA2+
4 N.C.
6 DVI_SPC
8 N.C.
10 DVI_DATA1+
12 N.C.
14 +5V
16 DVI_HTPLG
18 DVI_DATA0+
20 N.C.
22 GND
24 DVI_CLK-
C2 Analog green
Analog
C4
horizontal sync
Board and Pin Assignments
