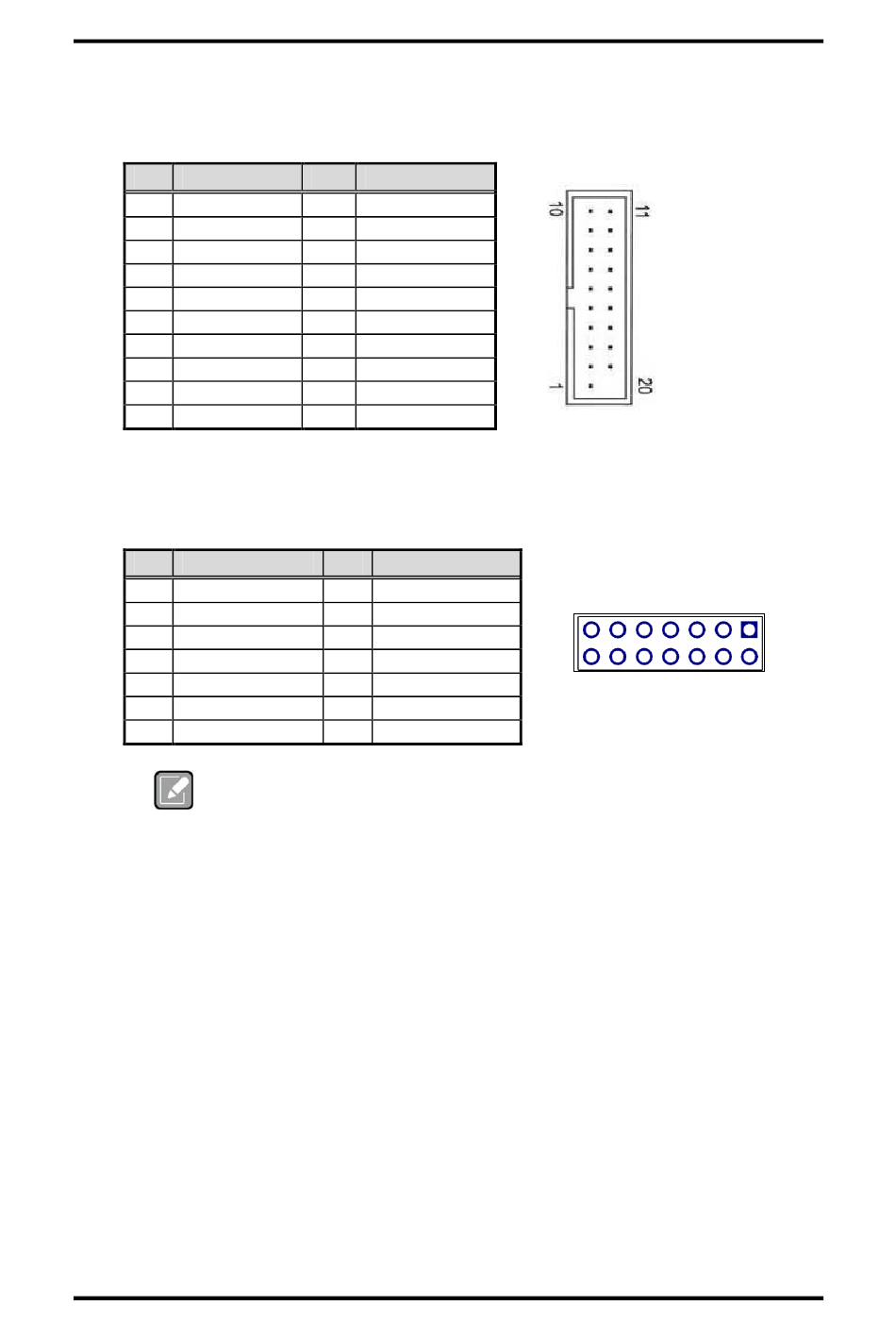

Internal USB 3.1 Gen1 Connector (CN3)

The CN3 is a 19-pin internal connector for installing versatile USB 3.1 compliant
peripherals.
Pin Signal
1 USB3_PWR56
2 SSRX5-
3 SSRX5+
4 GND
5 SSTX5-
6 SSTX5+
7 GND
8 USB10-
9 USB10+
10 ID
2.4.14

TPM Pin Header (CN2)

These are 7x2-pin p=2.0mm headers for SPI interface with an AX93515 TPM module.
Pin Signal
1 VCC3P3
3 MOSI
5 CLK
7 RST
9 PP
11 NC
13 NC
The screw type is M2*0.4.
Note
16
Pin Signal
19 VBUS1
18 SSRX6-
17 SSRX6+
16 GND
15 SSTX6-
14 SSTX6+
13 GND
12 USB11-
11 USB11+
Pin Signal
2 GND
4 MISO
6 CS2
8 PIRQ
10 NC
12 NC
14 MC
13 11 9 7 5 3 1
14 12 10 8 6 4 2
