Make sure the CPU fan is plugged to the CPU fan connector.
3.
3.2

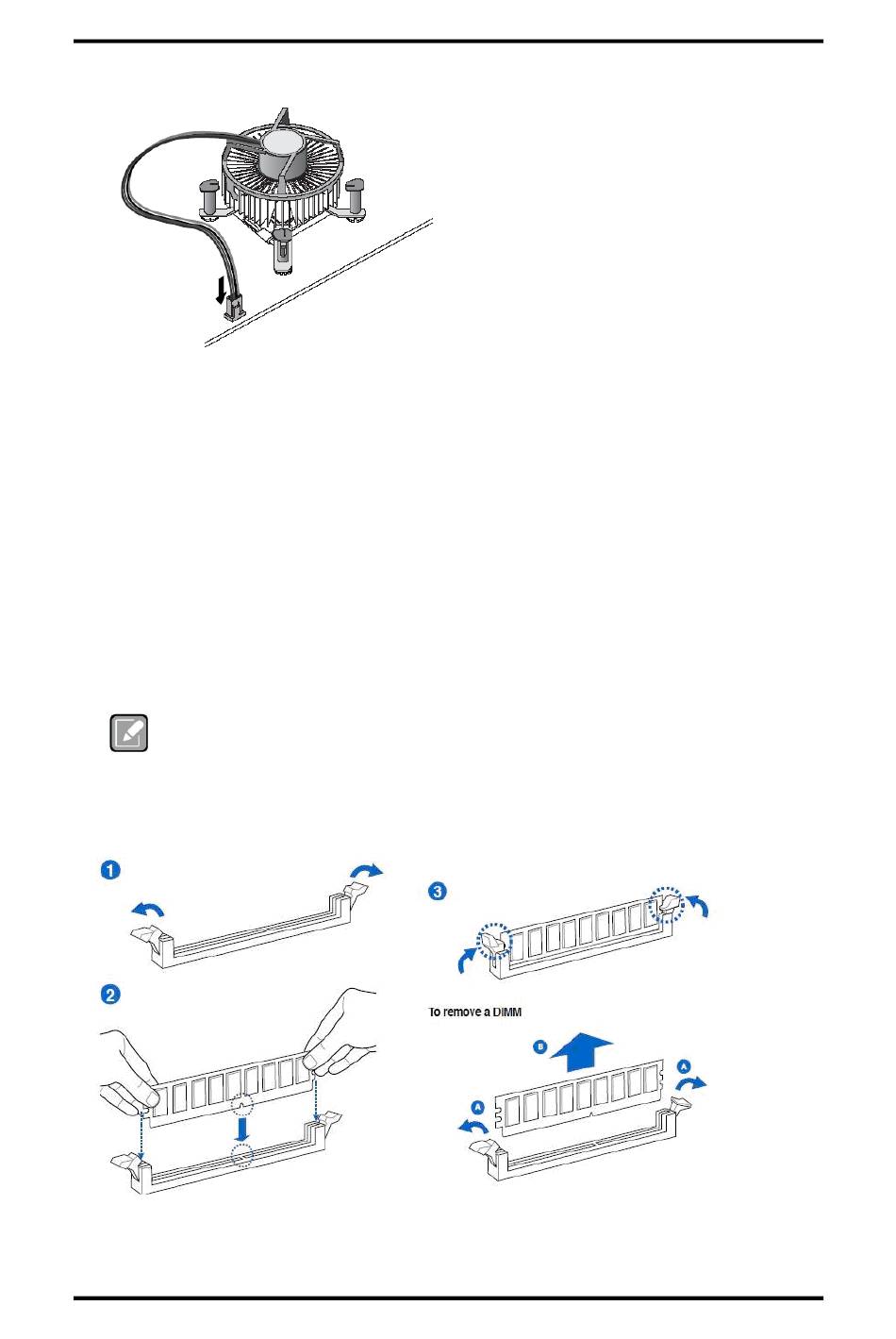

Installing the Memory

The board supports two 288-pin DDR4 DIMM memory sockets with maximum memory
capacity up to 64GB.
Please follow steps below to install the memory modules:
 Push down latches on each side of the DIMM socket.
 Align the memory module with the socket to ensure that notches of the memory module
match the socket keys for a correct installation.
 Install the memory module into the socket and push it firmly down until it is fully seated.
The socket latches are levered upwards and clipped on to the edges of the DIMM.
 Install any remaining DIMM modules.
To remove a DIMM, push down the latches on each side of the DIMM socket to
loosen the DIMM, and then lift the DIMM carefully.
Note
Hardware Installation
SHB150R LGA1151 Full-size CPU Card
