2.4.17

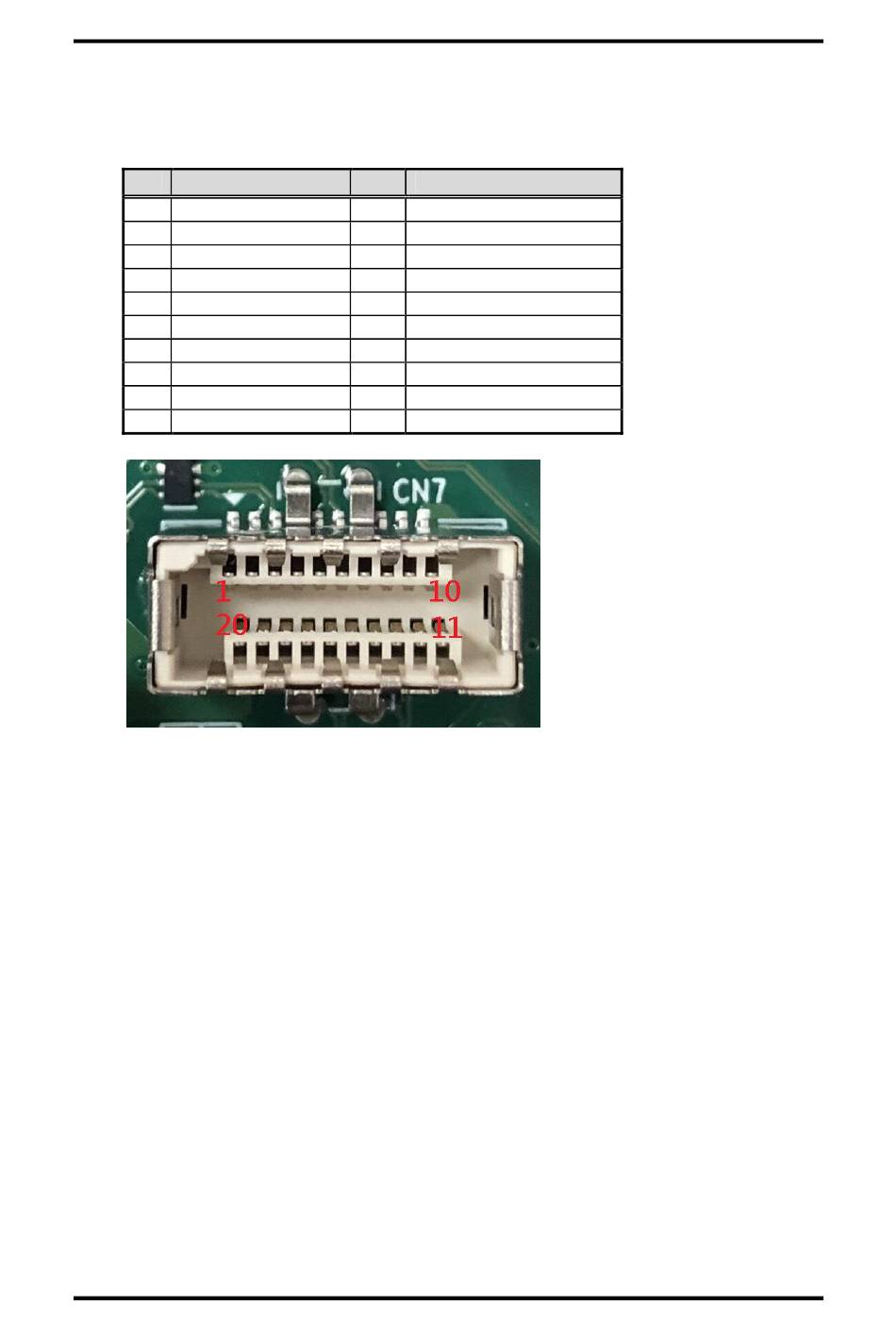

Internal USB 3.1 Gen2 Connector (CN7)
The CN7 is an internal box connector for installing versatile USB 3.1 Gen2 compliant
peripherals.
Pin
Signal
1
GND
2
SSTX2+
3
SSTX2-
4
GND
5
SSRX2+
6
SSRX2-
7
GND
8
USBP3P_C
9
USBP3N_C
10
GND
Board and Pin Assignments
SHB150R LGA1151 Full-size CPU Card
Pin
Signal
11
GND
12
SSTX3-
13
SSTX3+
14
GND
15
SSRX3-
16
SSRX3+
17
GND
18
USBP4P_C
19
USBP4N_C
20
+3.3VS
19
