3.1

Installing the Processor

The LGA1151 processor socket comes with a cover to protect the processor. Please install the
processor into the CPU socket step by step as illustrated below:
Make sure that you install the correct CPU designed for the LGA1151 socket only.
DO NOT install a CPU designed for LGA1156, LGA1155 or LGA1150 CPU on the
LGA1151 socket.
Note

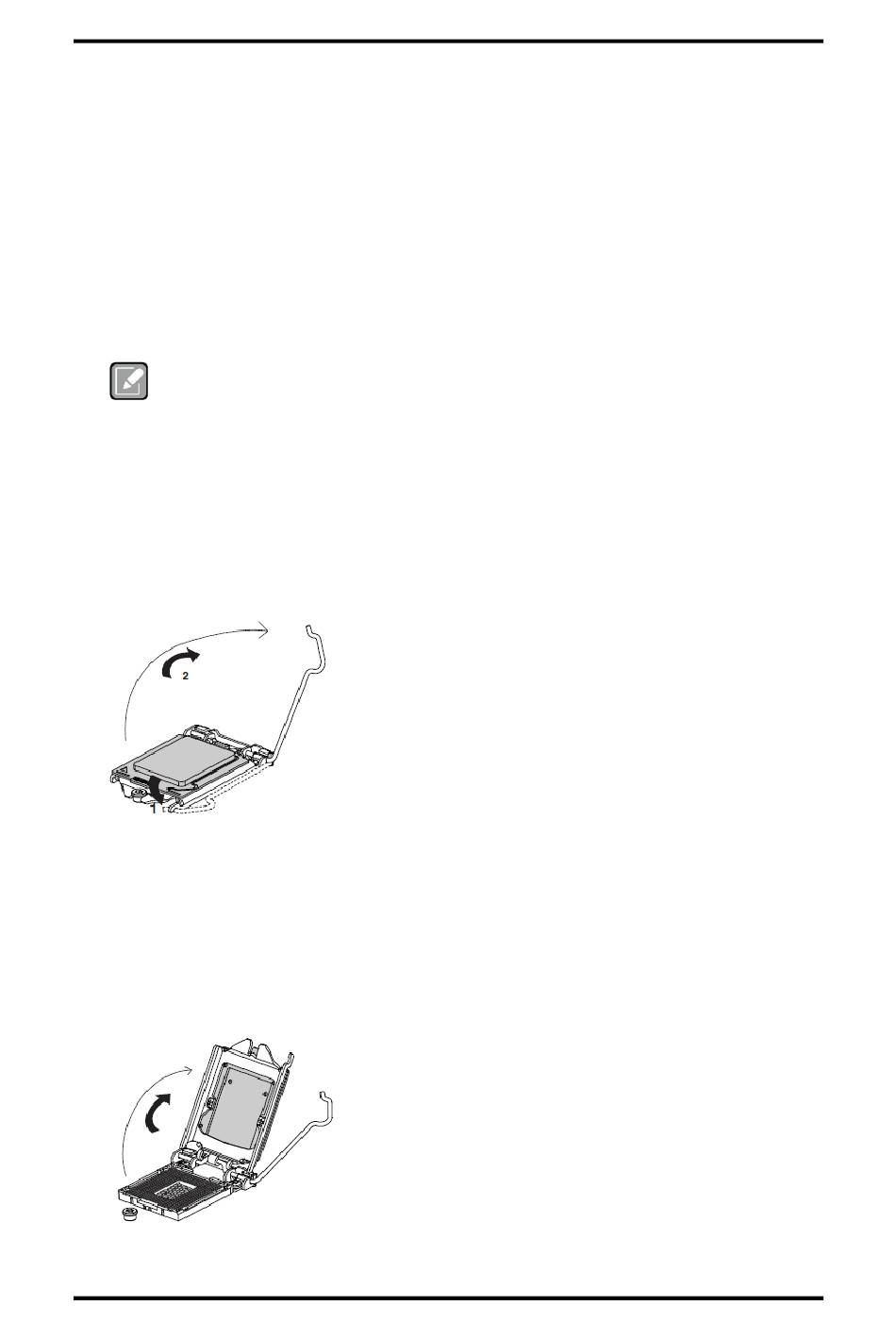

Step 1 Opening the socket:
 Disengage the load lever by pressing the lever down and pulling it slightly away by the
hook. This will release the load lever from the retention tab.
 Rotate the load lever to open position at approximately 135°.
 Rotate the load plate to open position at approximately 150°.
Step 2 Removing the socket protective cover:
 Place the thumb against the front edge of the protective cover and rest the index finger on
the rear grip to maintain control of the cover.
 Lift the front edge of the protective cover to disengage from the socket. Keep control of the
cover by holding the rear grip with the index finger.
 Lift the protective cover away from the socket, being careful not to touch the electrical
contacts.
