- Page 1 SmartSwitch 9000 9H423-26 Local Management Appendix 9032227-01...
-
Page 3: Modifying Fields And User Privileges

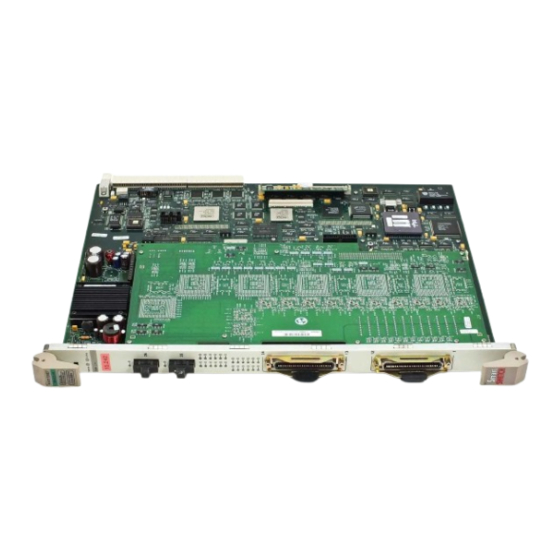

Introduction This appendix contains local management information that is specific to the 9H423-26 Fast Ethernet Switch Module. The 9H423-26 Switch Module has 26 ports: • 24 ports (two fixed RJ21 connectors) • 2 ports (two fixed MMF SC connectors) This module can operate in either full duplex or half duplex mode. -
Page 4: Module Interfaces
9H423-26 Module Specific Information Module Interfaces The 9H423-26 Fast Ethernet Switch Module has 31 interfaces. Table 1 lists the identifying number, name, and description of each interface. Interface Interface Number FENET1 FENET2 FENET3 FENET4 FENET5 FENET6 FENET7 FENET8 FENET9 FENET10... - Page 5 Table 1. 9H423-26 Module Interfaces (Continued) Interface Interface Number Name FENET19 FENET20 FENET21 FENET22 FENET23 FENET24 FENET25 FENET26 Use the numbers listed in Table 1 to configure the module’s default interface (see the General Configuration Screen). 9H423-26 Module Specific Information Interface Description Fast Ethernet Front Panel Port 19...
-
Page 6: Port Configuration Screen
9H423-26 Module Specific Information Port Configuration Screen The 9H423-26 Port Configuration Screen (Figure 1), displays configuration information about each port on the module (one port at a time). Module Name: 9H423-26 Slot Number: 1 Port Type Link Status Current Operation Mode Desired Operation Mode Advertised Ability SAVE... - Page 7 Port Configuration Screen Fields The following information briefly explains each Port Configuration Screen field. Slot # (Modifiable) Indicates the slot that the board occupies in the chassis. Port # (Read-only ) Indicates the current port for which statistics are displayed. Port Type (Read-only) Displays one of the following values: •...
- Page 8 9H423-26 Module Specific Information Operating Full Duplex 100 Mbps Fast Ethernet over two strands of multimode fiber cable. Desired Operation Mode (Toggle) Displays one of the following values: • Auto-Negotiation • 10Base-T manual • 10Base-TFD manual • 100Base-TX manual • 100Base-TXFD manual •...
- Page 9 Displaying Configuration Information for a Different Port To display configuration information for a different port: 1. Use the arrow keys to highlight the Port # field at the bottom of the Port Configuration Screen. 2. Press the Space Bar to increment (or press the Delete key to decrement) the port number.
-
Page 10: Port Statistics Screen
9H423-26 Module Specific Information Port Statistics Screen The 9H423-26 Port Statistics Screen (Figure 2), displays statistical information for each port (one port at a time). Module Name: 9H423-36 Slot Number: 1 Bytes: 3390336996 Frames: Total Errors: Collisions: CRC/Align Errors: Undersize Packets: Oversize Packets: Fragments: Jabbers:... - Page 11 9H423-26 Module Specific Information Port Statistics Screen Fields The following information briefly explains each Port Statistics Screen field. Port # (Read-only) Indicates the current port for which statistics are displayed. Bytes (Read-only) Displays the number of bytes transmitted and received. Frames (Read-only) Displays the number of frames transmitted and received.
- Page 12 Displays Bridging, indicating that the port is operating as a bridge with a high-speed backbone connection. Switching (SFS) may also be displayed indicating that the port is operating as a switch. Operation Mode (Read-only) Displays one of the following values: •...
- Page 13 Displaying Statistics for a Different Port To display statistics for a different port: 1. Use the arrow keys to highlight the Port # field at the bottom of the Port Statistics Screen. 2. Press the Space Bar to increment (or press the Delete key to decrement) the port number.
- Page 14 9H423-26 Module Specific Information...
