Cabletron Systems MMAC-Plus 9F116-01 User Manual

Hide thumbs Also See for MMAC-Plus 9F116-01:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Reference Manual
SmartSwitch 9000
9F116-01 User's Guide
9031184-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MMAC-Plus 9F116-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cabletron Systems MMAC-Plus 9F116-01

Summary of Contents for Cabletron Systems MMAC-Plus 9F116-01

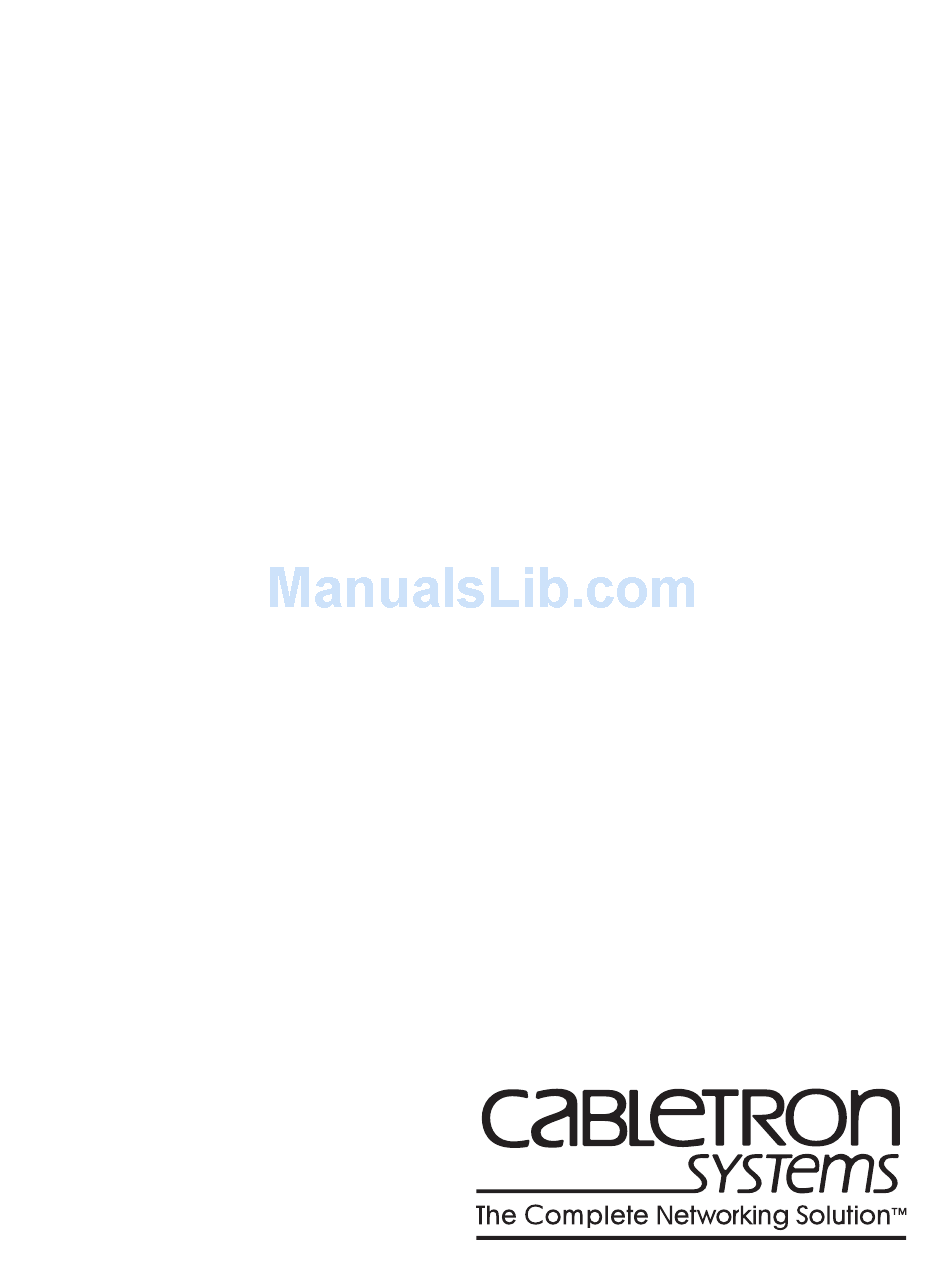

  • Page 1 SmartSwitch 9000 9F116-01 User’s Guide 9031184-01...
  • Page 3 Notice Notice Cabletron Systems reserves the right to make changes in specifications and other information contained in this document without prior notice. The reader should in all cases consult Cabletron Systems to determine whether any such changes have been made. The hardware, firmware, or software described in this manual is subject to change without notice.

  • Page 4: Fcc Notice

    Notice FCC Notice This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules.

  • Page 5: Declaration Of Conformity

    Notice DECLARATION OF CONFORMITY ADDENDUM Application of Council Directive(s): 89/336/EEC 73/23/EEC Manufacturer’s Name: Cabletron Systems, Inc. Manufacturer’s Address: 35 Industrial Way PO Box 5005 Rochester, NH 03867 European Representative Name: Mr. J. Solari European Representative Address: Cabletron Systems Limited Nexus House, Newbury Business Park London Road, Newbury Berkshire RG13 2PZ, England Conformance to Directive(s)/Product Standards:...
  • Page 6 Notice...

  • Page 7: Table Of Contents

    Contents Chapter 1 Introduction Features........................... 1-1 Related Manuals......................1-4 Getting Help ........................1-4 Chapter 2 Installing the MicroLAN Modules The Reset Switch ......................2-3 User-Accessible Components..................2-4 Setting the Module Card DIP Switch ................. 2-5 Installing an FPIM......................2-7 Chapter 3 Operation Flexible Network Bus (FNB)..................
  • Page 8 Contents...

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction The 9F116-01 MicroLAN™ Module (shown in Figure 1-1) is a two port FDDI bridge/router used to connect an external FDDI network to one of the two FNB networks, FNB-1 or FNB-2, on the SmartSwitch 9000 FNB backplane. Another configuration option allows the module to bridge/route between FNB-1 and FNB-2 on the FNB backplane.
  • Page 10 Introduction Spanning Tree Algorithm The 9F116-01 supports both IEEE 802.1d and DEC Spanning Tree Algorithm (STA) protocols. Connectivity The 9F116-01 provides one FDDI dual attached connector pair from the module front panel. This connector pair allows the 9F116-01 to act as a DAS (with two FPIMs installed) or a SAS (with one FPIM) on the SmartSwitch 9000 FNB.
  • Page 11 Introduction FDDI 9F116-01 Figure 1-1. The 9F116-01 Module...

  • Page 12: Related Manuals

    Introduction Related Manuals The manuals listed below should be used to supplement the procedures and technical data contained in this manual. SmartSwitch 9000 Installation Guide SmartSwitch 9000 Operations Guide SmartSwitch 9000 9C300-1 Environmental Module User’s Guide SmartSwitch 9000 9C214-1 AC Power Supply User’s Guide SmartSwitch 9000 Module Local Management User’s Guide Getting Help For additional support related to this device or document, contact the Cabletron Systems Global Call...

  • Page 13: Installing The Microlan Modules

    Chapter 2 Installing the MicroLAN Modules SmartSwitch 9000 MicroLAN Modules can be installed in any of the 14 slots that are available. To install, follow the steps below: Remove the blank panel, covering the slot in which the MicroLAN Module will be installed.
  • Page 14 Installing the MicroLAN Modules Plastic Tab Jack for ESD Wrist Strap Metal Back-Panel Module Module Guides Warning: Ensure that the circuit card is between the card guides. Lock down the top and bottom plastic tabs at the same time, applying even pressure. Figure 2-1.

  • Page 15: The Reset Switch

    Installing the MicroLAN Modules The Reset Switch The Reset switch is located on the front panel, under the top plastic tab as shown in Figure 2-2. It serves two functions: • Pressing the Reset switch twice within three seconds causes the processor (i960) to reset.

  • Page 16: User-Accessible Components

    Installing the MicroLAN Modules User-Accessible Components Figure 2-3 shows the various components that are accessible to the user. These consist of an eight position dip switch (explained in the next section), replaceable PROMs, and sockets for RAM. These will be used for future upgrades. Instructions for installing the components will be supplied with the upgrade kit.

  • Page 17: Setting The Module Card Dip Switch

    Installing the MicroLAN Modules Setting the Module Card DIP Switch An eight switch DIP switch is located on the module card as shown in Figure 2-3 and Figure 2-4. The functions of the switches are listed in Table 2-1. Figure 2-4. Location of Module DIP Switch...
  • Page 18 Installing the MicroLAN Modules See the Cautions at the end of this table. Table 2-1. Function of DIP Switch Switch Function Description When toggled, this switch clears user-entered Clear passwords stored in NVRAM and restores the Password default passwords. Once reset you can use the defaults or enter new passwords.

  • Page 19: Installing An Fpim

    Installing the MicroLAN Modules Installing an FPIM The 9F116-01 MicroLAN module is shipped without FPIMs. To install an FPIM, follow the procedure below: Remove the module if it is installed in the SmartSwitch 9000 chassis. Remove the blank front cover over the FPIM slot. Install the FPIM as shown in Figure 2-5.
  • Page 20 Installing the MicroLAN Modules...

  • Page 21: Chapter 3 Operation

    Chapter 3 Operation The 9F116-01 provides connectivity between two of the three available interfaces: the front panel and both FDDI rings on the FNB backplane (FNB-1 and FNB-2). Bridging/routing can occur between any two interfaces, front panel to either FNB ring or between the FNB rings (FNB-1 and FNB-2) as shown in Figure 3-1.

  • Page 22: System Management Buses

    Operation System Management Buses There are two management channels within the SmartSwitch 9000 system: the SMB-1 and the SMB-10. These buses provide out-of-band management and inter- module management communication. SMB-1 Bus The SMB-1 is a 1 Mbps management bus located within the SmartSwitch 9000. This bus is utilized by all diagnostic controllers in the system including connectivity modules, power supply modules and the environmental module.

  • Page 23: Dc/Dc Converter

    Operation DC/DC Converter The DC/DC converter converts the 48 VDC on the system power bus to the necessary operating voltages for its host network services module. The diagnostic controller controls the operation of the DC/DC converter. FNB Interface SmartSwitch 9000 modules are designed with one of two attachment policies. One allows dual attachment of a module to either FNB-1 or FNB-2;...
  • Page 24 Operation...

  • Page 25: Lanview Leds

    Chapter 4 LANVIEW LEDs The front panel LANVIEW LEDs indicate the status of the module and may be used as an aid in troubleshooting. Shown in Figure 4-1 are the LANVIEW LEDs of the 9F116-01 module. FDDI 9F116-01 FNB Status System Status (Receive) FNB Status...
  • Page 26 LANVIEW LEDs The functions of the System Management Bus (SMB) and CPU LEDs are listed in Table 4-1. Table 4-1. SMB and CPU LEDs LED Color State Description Green Functional Fully operational Yellow Crippled Not fully operational (i.e., one bad port) Yellow/Green Booting Blinks yellow and green while booting...
  • Page 27 LANVIEW LEDs The FDDI status LEDs display the status when bridging to the front panel port from either FNB ring. The “A” and “B” LEDs indicate the status of the A and B ports. The “P” and “S” LEDs indicate the status of the primary and secondary FDDI rings.
  • Page 28 LANVIEW LEDs Table 4-4. FDDI Status LEDs (Continued) STATE Green Yellow Yellow WRAP A, No MAC on Primary Yellow Green Green WRAP B, MAC on Primary Yellow Yellow Green WRAP B, No MAC on Primary Green Green Green WRAP AB, MAC on Primary Green Green BYPASS Primary &...

  • Page 29: General Specifications

    Chapter 5 General Specifications The specifications of the 9F116-01 MicroLAN Module are as follows: Safety It is the responsibility of the person who sells the system to which the module will be a part to ensure that the total system meets allowed limits of conducted and radiated emissions.

  • Page 30: Physical

    General Specifications Physical Dimensions: 35.0 D x 44.0 H x 3.0 W centimeters (13.8 D x 17.4 H x 1.2 W inches) Weight: Unit: 1.36 kg. (3 lb) Shipping: 1.81 kg. (4 lb)

  • Page 31: Appendix A Fpim Specifications

    Appendix A FPIM Specifications This SmartSwitch 9000 module uses Fiber Port Interface Modules (FPIM) to provide front panel cable connections. The FPIMs are user-installable. See the section titled Installing an FPIM on page 2-7. FPIM-00 The FPIM-00 has a MIC style connector supporting a multimode fiber connection. The specifications are listed in Table A-1.

  • Page 32: Fpim-02 And Fpim-04

    FPIM Specifications Transmitter power parameters are listed in Table A-2. Table A-2. Transmitter Power Parameters Worst Worst Case Typical Parameter Typical Value Case Budget Budget 50/125 µm -13.0 dBm -15.0 dBm 13.0 dB 17.5 dB fiber 62.5/125 µm -10.0 dBm -12.0 dBm 16.0 dB 20.5 dB...
  • Page 33 FPIM Specifications FPIM-05 The FPIM-05 has a MIC style connector supporting a Single-mode fiber connection. The specifications are listed in Table A-4. Table A-4. FPIM-05 Specifications Parameter Typical Minimum Maximum Transmitter Peak Wave 1300 nm 1270 nm 1330 nm Length 60 nm 100 nm Spectral Width...
  • Page 34 FPIM Specifications...
