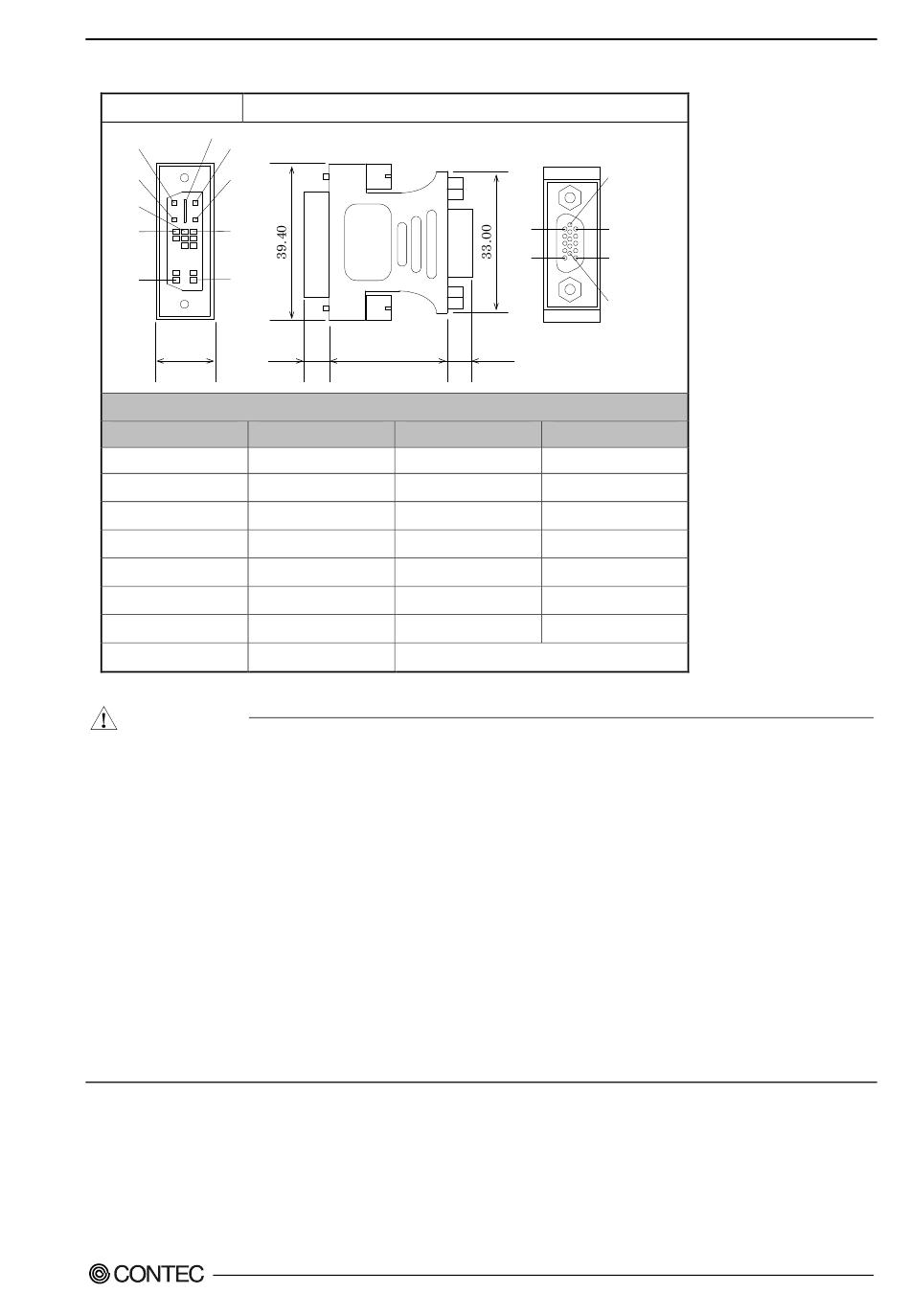

Table 4.10. DVI-analog RGB conversion adapter
Connector type
C5
C4
C2
C3
C1
16
8
24
17
1
15.00
Pin No.
1
2
3
4
5
6
7
8
CAUTION
- You need to set the screen resolution if the display cable is not connected to this DVI-D interface at
OS startup, but connected after OS startup (hereinafter referred to as "Late Insertion").
- When the analog display is used, Windows MS-DOS may not be properly displayed in full-screen
mode.
This is because the frequency and resolution of Windows and MS-DOS (full-screen display) are the
same due to the screen settings while the display parameters are different.
For display, as only one parameter can be stored for one frequency or resolution, only either of
Windows or MS-DOS screen can be displayed properly.
In this case, change the resolution or display frequency of Windows so that it is not the same as for
the MS-DOS display.
- When using a digital display, an analog display may be detected even though no analog display is
connected. This will not affect how the digital display appears. However, change the multi-display
settings as necessary.
- To change the settings from digital output to analog output, change the settings from the standard
Windows properties screen.
PT-956SxX Series User's manual
DVI-I 29 pin
6.20 30.00
Signal on analog RGB
Signal name
RED
GREEN
BLUE
N.C.
GND
GND
GND
GND
6
1 11
5
15
10
5.80
[mm]
Pin No. Signal name
9 +5V
10 GND
11 N.C.
12 DDC DATA
13 HSYNC
14 VSYNC
15 DDC CLK
4. Each Component Function
