4. Each Component Function

DVI Interface: DVI-I

A DVI interface is provided. You can use it to connect a CRT (even a D-SUB 15 pin connector is
acceptable by using the bundled DVI-analog RGB adapter) or a CONTEC flat panel display. The
connector is named DVI (DVI-I 29-pin connector).

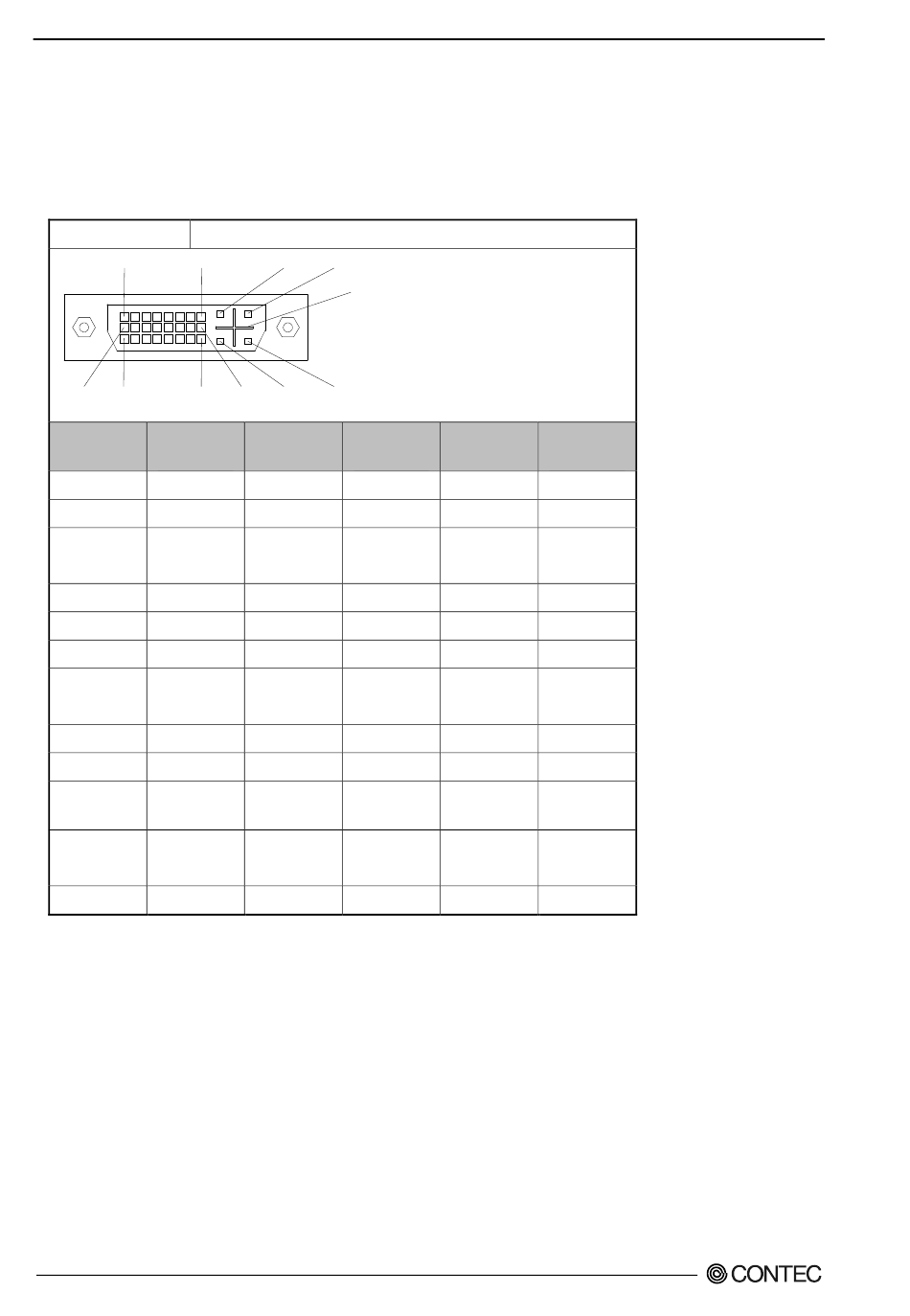

Table 4.9. DVI Connector
Connector type
1
8
24
17
9
Signal
Pin No.
name
1 DATA2-
2 DATA2+
DATA2
3
SHIELD
4 N.C.
5 N.C.
6 DDC CLK
DDC
7
DATA
8 VSYNC
9 DATA1-
10 DATA1+
DATA1
11
SHIELD
12 N.C.
32
DVI-I 29 pin
C1
C2
C5
C4
16 C3
Signal
Pin No.
name
13 N.C.
14 +5V
15 N.C.
16 HPD
17 DATA0-
18 DATA0+
DATA0
19
SHIELD
20 N.C.
21 N.C.
DATA0
22
SHIELD
23 CLK+
24 CLK-
Signal
Pin No.
name
C1 RED
C2 GREEN
C3 BLUE
C4 HSYNC
C5 GND
