IPC Series

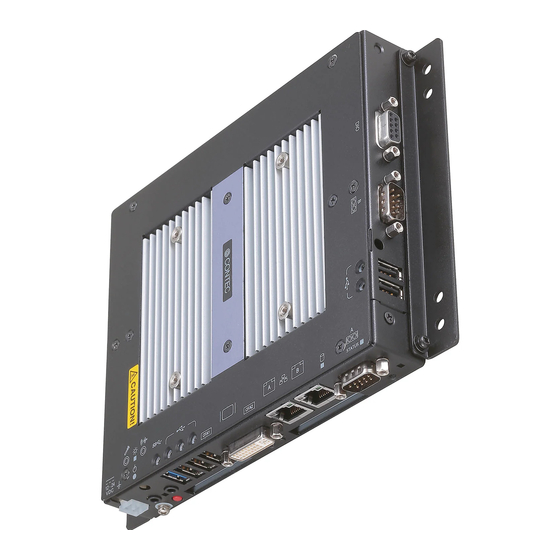

BOX-PC
for BX-956S Series
CentOS7.3 64bit
Operational Check Manual
CONTEC CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Contec IPC Series

Summary of Contents for Contec IPC Series

  • Page 1 IPC Series BOX-PC for BX-956S Series CentOS7.3 64bit Operational Check Manual CONTEC CO., LTD.

  • Page 2: Trademarks

    No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document.

  • Page 3: Table Of Contents

    Table of Contents Copyright ..............................i Trademarks ..............................i Table of Contents ............................ii INTRODUCTION About the Product ..........................1 Caution on the BX-956S Series ......................1 Security Warning ..........................2 OPERATING ENVIRONMENT Distribution............................3 Configuration ............................3 LIST OF OPERATIONAL CHECKS Operational Checks and Results ........................
  • Page 4 4.12 Power Management Operational Check ..................21 4.12.1 S0, S3, and S4 States Check ....................21 4.12.2 S5 State Check ........................21 ADD THIS LINE 5.1 CPU Information (/proc/cpuinfo) ...................... 23 5.2 Memory Information (free , /proc/meminfo) ..................26 5.3 PCI Device Information (lspci) ......................28 5.4 Runlevel Information (sysv-rc-conf) ....................
  • Page 5 BX-956S CentOS7.3 64bit Operational Check Manual...

  • Page 6: Introduction

    Make sure you thoroughly conduct operational checks when using the content of this manual. CONTEC shall not be held liable for damages suffered by you due to the installation or use of the Linux OS based on the content of this manual.

  • Page 7: Security Warning

    1 Introduction Security Warning When connecting to the network, be aware of security-related problems. See the examples of Security measures below and set up the product properly along with the network devices. [Information security risks] - Unauthorized access from the outside through a network could cause the system halt, data damage, or exposure to malware - Invaded and used as a stepping stone, a device might attack the others through networks.

  • Page 8: Operating Environment

    The distributions used and their version information are as follows. CentOS7.3 64bit ( CentOS-7-x86_64-DVD-1611.iso ) [root@localhost contec]# cat /proc/version Linux version 3.10.0-514.el7.x86_64 (builder@kbuilder.dev.centos.org) (gcc version 4.8.5 20150623 (Red Hat 4.8.5-11) (GCC) ) #1 SMP Tue Nov 22 16:42:41 UTC 2016 [root@localhost contec]# uname –a...
  • Page 9 2 Operating Environment BX-956S CentOS7.3 64bit Operational Check Manual...

  • Page 10: List Of Operational Checks

    3 List of Operational Checks 3. List of Operational Checks Operational Checks and Results Only basic operations such as the installation and startup are verified as part of the operational checks. The operational checks were not conducted assuming all possible applications. This manual covers operational checks that were conducted for the items below.
  • Page 11 3 List of Operational Checks Status LED The status LED can be lit. ○ See 4.8 Watch dog timer Reset is possible after configuring timeout ○ See 4.9 CPU and system temperatures can be retrieved ○ See 4.10.1 Hardware monitoring Power-supply voltage can be retrieved ○...

  • Page 12: Operational Check Details

    4 Operational Check Details 4. Operational Check Details 4.1 Console Japanese Input Choose [Application] - [System Tool]-[Console], launch the console. Press “Ctrl” + “Space” or “half-width/full-width” in the console screen. Confirm that Japanese can be input. BX-956S CentOS7.3 64bit Operational Check Manual...

  • Page 13: Monitor Display Check

    4 Operational Check Details 4.2 Monitor Display Check 4.2.1 Analog RGB Choose [Application] – [System Tool] – [Setting], and launch the display configuration tool. Confirm that information about the manufacturer of the connected display as well as the recommended resolution are displayed.

  • Page 14: Dvi-D

    4 Operational Check Details 4.2.2 DVI-D Choose [Application] – [System Tool] – [Setting], and launch the display configuration tool. Confirm that information about the manufacturer of the connected display as well as the recommended resolution are displayed. In addition, confirm that the optional resolutions and rotation can be changed. Special note: The recommended resolution or the currently selected resolution may not be displayed if the DVI cable is connected while the OS is running.

  • Page 15: Audio Operational Check

    4 Operational Check Details 4.3 Audio Operational Check 4.3.1 LINE OUT Choose [System] – [Setting], and launch the sound configuration tool. When using DisplayPort, select “HDMI/DisplayPort (internal audio)” as the output destination, and press the [Test] button. The Figure 4.1 is displayed. Confirm that sound is output from the monitor by pressing the [Test] button.

  • Page 16: Cfast Operational Check

    Device mount information [root@localhost contec]# mount < Omission > /dev/sdb1 on /media/test/WES type fuseblk Read and write a text file. [root@localhost contec]# echo hello > /media/test/WES/hello.txt [root@localhost contec]# cat /media/test/WES/hello.txt hello 4.4.2 SMART Confirm that S.M.A.R.T. information can be retrieved.
  • Page 17 4 Operational Check Details General SMART Values: Offline data collection status: (0x00) Offline data collection activity was never started. Auto Offline Data Collection: Disabled. Total time to complete Offline data collection: 0) seconds. Offline data collection capabilities: (0x00) Offline data collection not supported. SMART capabilities: (0x0002) Does not save SMART data before...
  • Page 18 4 Operational Check Details 194 Temperature_Celsius 0x0022 Old_age Always 47 (Min/Max 25/62) SMART Error Log not supported SMART Self-test Log not supported Selective Self-tests/Logging not supported BX-956S CentOS7.3 64bit Operational Check Manual...

  • Page 19: Lan Operational Check

    Install the SSH server, and confirm that you can remotely log in from a Windows PC. SSH server installation [root@localhost contec]# yum install openssh-server Using Teraterm on a Windows PC, enter the IP of the box computer, and confirm that connection to the SSH server is possible.

  • Page 20: Ftp File Transfer Operations

    4.5.2 FTP File Transfer Operations Build a FTP server using vsftpd, and confirm that files can be transferred. Vsftpd server installation and environment [root@localhost contec]# yum install vsftpd ftp -y [root@localhost contec]# gedit /etc/vsftpd/vsftpd.conf ( uncomment below and two last line : )
  • Page 21 4 Operational Check Details Connect to the FTP server using the standard FTP client function on a Windows PC. Enter the username and password used in the Linux configuration. If everything is in order, connection will be completed as below, and the file can be transferred. BX-956S CentOS7.3 64bit Operational Check Manual...

  • Page 22: Serial Port Operational Check

    Enter the following command in the other console. The character string “aiueo” is sent from port B to port A. [root@localhost contec]# echo aiueo > /dev/ttyS1 If port A (listening port) successfully receives the data, the character string “aiueo” will be displayed on the console screen, as shown below.

  • Page 23: Dio Operational Check

    Launch a console window. Execute the sled sample as follows, and confirm that the status LED turns on/off in red. Refer to the Readme file for details about the sled sample. [root@localhost contec]# ./sled 1 [root@localhost contec]# ./sled 0 BX-956S CentOS7.3 64bit Operational Check Manual...

  • Page 24: Watchdog Timer Operations

    Launch a console window. Execute the WDT sample as follows, and confirm that the system is reset after WDT timeout. Refer to the Readme file for details about the WDT sample. [root@localhost contec]# ./wdt 60 Special note: The system will be reset about 60 seconds after executing the WDT sample.

  • Page 25: Rtc Operational Check

    4.11 RTC Operational Check Confirm that the date and time can be manually changed by entering the date command in the console screen. [root@localhost contec]# date –s “05/10 15:25 2017” 5月 10日 水曜日 15:25 00 JST 2017年 [root@localhost contec]# timedatectl set-local-rtc true The following shows how to synchronize the time using the ntpdate command with NTP installed and the NTP service temporarily stopped.

  • Page 26: Power Management Operational Check

    (Suspend to disk) Reference: “(linux-source)\Documentation\Power\state.txt” 4.12.2 S5 State Check Enter the following command in the console screen. After shutdown, confirm that power supply of the main unit turns off. [root@localhost contec]# shutdown –h now BX-956S CentOS7.3 64bit Operational Check Manual...
  • Page 27 4 Operational Check Details BX-956S CentOS7.3 64bit Operational Check Manual...

  • Page 28: Add This Line

    5 Add this line 5. Add this line 5.1 CPU Information (/proc/cpuinfo) [root@localhost contec]# cat /proc/cpuinfo processor vendor_id : GenuineIntel cpu family model : 55 model name : Intel(R) Atom(TM) CPU E3845 @ 1.91GHz stepping microcode : 0x901 cpu MHz : 1915.900...
  • Page 29 5 Add this line microcode : 0x901 cpu MHz : 1915.974 cache size : 1024 KB physical id siblings core id cpu cores apicid initial apicid : yes fpu_exception : yes cpuid level : 11 : yes flags : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 movbe popcnt tsc_deadline_timer aes rdrand lahf_lm 3dnowprefetch arat epb dtherm tpr_shadow vnmi flexpriority ept vpid tsc_adjust smep erms...
  • Page 30 5 Add this line cpuid level : 11 : yes flags : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good nopl xtopology nonstop_tsc aperfmperf pni pclmulqdq dtes64 monitor ds_cpl vmx est tm2 ssse3 cx16 xtpr pdcm sse4_1 sse4_2 movbe popcnt tsc_deadline_timer aes rdrand lahf_lm 3dnowprefetch arat epb dtherm tpr_shadow vnmi flexpriority ept vpid tsc_adjust smep erms bogomips...

  • Page 31: Memory Information (Free , /Proc/Meminfo)

    5 Add this line 5.2 Memory Information (free , /proc/meminfo) [root@localhost contec]# free total used free shared buff/cache available Mem: 3770172 627268 2221484 194808 921420 2651116 Swap: 3145724 3145724 [root@localhost contec]# cat /proc/meminfo MemTotal: 3770172 kB MemFree: 2221236 kB MemAvailable:...
  • Page 32 5 Add this line VmallocUsed: 552988 kB VmallocChunk: 34358423548 kB HardwareCorrupted: 0 kB AnonHugePages: 180224 kB HugePages_Total: HugePages_Free: HugePages_Rsvd: HugePages_Surp: Hugepagesize: 2048 kB DirectMap4k: 113356 kB DirectMap2M: 3969024 kB BX-956S CentOS7.3 64bit Operational Check Manual...

  • Page 33: Pci Device Information (Lspci)

    5 Add this line 5.3 PCI Device Information (lspci) [root@localhost contec]# lspci 00:00.0 Host bridge: Intel Corporation Atom Processor Z36xxx/Z37xxx Series SoC Transaction Register (rev 11) 00:02.0 VGA compatible controller: Intel Corporation Atom Processor Z36xxx/Z37xxx Series Graphics & Display (rev 11) 00:13.0 SATA controller: Intel Corporation Atom Processor E3800 Series SATA AHCI Controller (rev 11)

  • Page 34: Runlevel Information (Sysv-Rc-Conf)

    5 Add this line 5.4 Runlevel Information (sysv-rc-conf) [root@localhost contec]# chkconfig –list netconsole 0:off 1:off 2:off 3:off 4:off 5:off 6:off network 0:off 1:off 2:on 3:on 4:on 5:on 6:off [root@localhost contec]# systemctl list-unit-files UNIT FILE STATE proc-sys-fs-binfmt_misc.automount static dev-hugepages.mount static dev-mqueue.mount static proc-fs-nfsd.mount...
  • Page 35 5 Add this line anaconda-sshd.service static anaconda-tmux@.service static anaconda.service static arp-ethers.service disabled atd.service enabled auditd.service enabled auth-rpcgss-module.service static autofs.service disabled autovt@.service enabled avahi-daemon.service enabled blk-availability.service disabled bluetooth.service enabled brandbot.service static brltty.service disabled canberra-system-bootup.service disabled canberra-system-shutdown-reboot.service disabled canberra-system-shutdown.service disabled certmonger.service disabled cgconfig.service disabled cgdcbxd.service...
  • Page 36 5 Add this line dbus-org.freedesktop.login1.service static dbus-org.freedesktop.machine1.service static dbus-org.freedesktop.ModemManager1.service enabled dbus-org.freedesktop.network1.service dbus-org.freedesktop.NetworkManager.service enabled dbus-org.freedesktop.nm-dispatcher.service enabled dbus-org.freedesktop.timedate1.service static dbus.service static debug-shell.service disabled display-manager.service enabled dm-event.service disabled dmraid-activation.service enabled dnsmasq.service disabled dracut-cmdline.service static dracut-initqueue.service static dracut-mount.service static dracut-pre-mount.service static dracut-pre-pivot.service static dracut-pre-trigger.service static dracut-pre-udev.service static...
  • Page 37 5 Add this line initial-setup.service disabled initrd-cleanup.service static initrd-parse-etc.service static initrd-switch-root.service static initrd-udevadm-cleanup-db.service static instperf.service static iprdump.service disabled iprinit.service disabled iprupdate.service disabled ipsec.service disabled irqbalance.service enabled iscsi-shutdown.service static iscsi.service enabled iscsid.service disabled iscsiuio.service disabled kdump.service enabled kmod-static-nodes.service static kpatch.service disabled ksm.service enabled ksmtuned.service...
  • Page 38 5 Add this line NetworkManager.service enabled nfs-blkmap.service disabled nfs-config.service static nfs-idmap.service static nfs-idmapd.service static nfs-lock.service static nfs-mountd.service static nfs-rquotad.service disabled nfs-secure-server.service static nfs-secure.service static nfs-server.service disabled nfs-utils.service static nfs.service disabled nfslock.service static ntpd.service disabled ntpdate.service disabled numad.service disabled oddjobd.service disabled packagekit-offline-update.service static packagekit.service...
  • Page 39 5 Add this line rescue.service static rhel-autorelabel-mark.service static rhel-autorelabel.service static rhel-configure.service static rhel-dmesg.service disabled rhel-domainname.service disabled rhel-import-state.service static rhel-loadmodules.service static rhel-readonly.service static rngd.service enabled rpc-gssd.service static rpc-rquotad.service disabled rpc-statd-notify.service static rpc-statd.service static rpc-svcgssd.service static rpcbind.service indirect rpcgssd.service static rpcidmapd.service static rpcsvcgssd.service static rsyncd.service...
  • Page 40 5 Add this line systemd-binfmt.service static systemd-bootchart.service disabled systemd-firstboot.service static systemd-fsck-root.service static systemd-fsck@.service static systemd-halt.service static systemd-hibernate-resume@.service static systemd-hibernate.service static systemd-hostnamed.service static systemd-hwdb-update.service static systemd-hybrid-sleep.service static systemd-importd.service static systemd-initctl.service static systemd-journal-catalog-update.service static systemd-journal-flush.service static systemd-journald.service static systemd-kexec.service static systemd-localed.service static systemd-logind.service static systemd-machine-id-commit.service...
  • Page 41 5 Add this line systemd-tmpfiles-setup.service static systemd-udev-settle.service static systemd-udev-trigger.service static systemd-udevd.service static systemd-update-done.service static systemd-update-utmp-runlevel.service static systemd-update-utmp.service static systemd-user-sessions.service static systemd-vconsole-setup.service static target.service disabled tcsd.service disabled teamd@.service static tuned.service enabled udisks2.service static unbound-anchor.service static upower.service disabled usb_modeswitch@.service static usbmuxd.service static virtlockd.service indirect virtlogd.service...
  • Page 42 5 Add this line sshd.socket disabled sssd-secrets.socket disabled syslog.socket static systemd-initctl.socket static systemd-journald.socket static systemd-networkd.socket disabled systemd-shutdownd.socket static systemd-udevd-control.socket static systemd-udevd-kernel.socket static virtlockd.socket enabled virtlogd.socket enabled anaconda.target static basic.target static bluetooth.target static cryptsetup-pre.target static cryptsetup.target static ctrl-alt-del.target disabled default.target enabled emergency.target static final.target...
  • Page 43 5 Add this line nss-lookup.target static nss-user-lookup.target static paths.target static poweroff.target disabled printer.target static reboot.target disabled remote-fs-pre.target static remote-fs.target enabled rescue.target disabled rpcbind.target static runlevel0.target disabled runlevel1.target disabled runlevel2.target static runlevel3.target static runlevel4.target static runlevel5.target enabled runlevel6.target disabled shutdown.target static sigpwr.target static sleep.target...

  • Page 44: System Load Module Information (Lsmod)

    5 Add this line 5.5 System Load Module Information (lsmod) [root@localhost contec]# lsmod Module Size Used by vfat 17411 1 65913 1 vfat 22429 0 usb_storage 66762 2 uas fuse 87741 3 xt_CHECKSUM 12549 1 ipt_MASQUERADE 12678 3 nf_nat_masquerade_ipv4 13412 1 ipt_MASQUERADE...
  • Page 45 5 Add this line iptable_mangle 12695 1 iptable_security 12705 1 iptable_raw 12678 1 ebtable_filter 12827 1 ebtables 35009 3 ebtable_broute,ebtable_nat,ebtable_filter ip6table_filter 12815 1 ip6_tables 26901 5 ip6table_filter,ip6table_mangle,ip6table_security,ip6table_nat,ip6table_raw iptable_filter 12810 1 intel_powerclamp 14419 0 coretemp 13444 0 intel_rapl 19321 0 554609 0 snd_hda_codec_hdmi 47892 1 irqbypass...
  • Page 46 5 Add this line snd_seq_device 14356 1 snd_seq snd_pcm 106416 snd_soc_core,snd_hda_codec_hdmi,snd_hda_codec,snd_hda_intel,snd_soc_sst_mfld_platform,snd_hda_core iosf_mbi 13523 1 intel_rapl pcspkr 12718 0 snd_timer 29819 2 snd_pcm,snd_seq 83432 21 snd_hda_codec_realtek,snd_soc_core,snd_hwdep,snd_timer,snd_hda_codec_hdmi,snd_pcm,snd_seq,snd_hda_codec_generic,snd_hd a_codec,snd_hda_intel,snd_soc_sst_mfld_platform,snd_seq_device,snd_compress soundcore 15047 1 snd nfsd 333626 1 auth_rpcgss 59323 1 nfsd nfs_acl 12837 1 nfsd lockd 93573 1 nfsd grace...
  • Page 47 5 Add this line i2c_algo_bit 13413 2 igb,i915 i2c_core 40756 6 drm,igb,i915,i2c_i801,drm_kms_helper,i2c_algo_bit fjes 32197 0 video 24400 1 i915 dm_mirror 22135 0 dm_region_hash 20862 1 dm_mirror dm_log 18411 2 dm_region_hash,dm_mirror dm_mod 114430 8 dm_log,dm_mirror BX-956S CentOS7.3 64bit Operational Check Manual...

  • Page 48: Irq Usage Information (/Proc/Interrupts)

    5 Add this line 5.6 IRQ Usage Information (/proc/interrupts) [root@localhost contec]# cat /proc/interrupts CPU0 CPU1 CPU2 CPU3 IO-APIC-edge timer IO-APIC-edge i8042 IO-APIC-fasteoi rtc0 IO-APIC-fasteoi acpi IO-APIC-edge i8042 23074 PCI-MSI-edge xhci_hcd 15722 54488 2222 PCI-MSI-edge 0000:00:13.0 PCI-MSI-edge enp1s0 2880 PCI-MSI-edge enp1s0-TxRx-0...

  • Page 49: I/O Port Usage Information (/Proc/Ioports)

    5 Add this line PIN: Posted-interrupt notification event PIW: Posted-interrupt wakeup event 5.7 I/O Port Usage Information (/proc/ioports) [root@localhost contec]# cat /proc/ioports 0000-006f : PCI Bus 0000:00 0000-001f : dma1 0020-0021 : pic1 0040-0043 : timer0 0050-0053 : timer1 0060-0060 : keyboard...
  • Page 50 5 Add this line d000-d01f : 0000:01:00.0 e000-e01f : 0000:00:1f.3 e020-e03f : 0000:00:13.0 e020-e03f : ahci e040-e043 : 0000:00:13.0 e040-e043 : ahci e050-e057 : 0000:00:13.0 e050-e057 : ahci e060-e063 : 0000:00:13.0 e060-e063 : ahci e070-e077 : 0000:00:13.0 e070-e077 : ahci e080-e087 : 0000:00:02.0 BX-956S CentOS7.3 64bit Operational Check Manual...

  • Page 51: Kernel Module Message Information (Dmesg)

    5 Add this line 5.8 Kernel Module Message Information (dmesg) [root@localhost contec]# dmesg 0.000000] Initializing cgroup subsys cpuset 0.000000] Initializing cgroup subsys cpu 0.000000] Initializing cgroup subsys cpuacct 0.000000] Linux version 3.10.0-514.el7.x86_64 (builder@kbuilder.dev.centos.org) (gcc version 4.8.5 20150623 (Red Hat 4.8.5-11) (GCC) ) #1 SMP Tue Nov 22 16:42:41 UTC 2016 0.000000] Command line: BOOT_IMAGE=/vmlinuz-3.10.0-514.el7.x86_64 root=/dev/mapper/cl-root ro crashkernel=auto...
  • Page 52 0.000000] BIOS-e820: [mem 0x0000000100000000-0x000000013fffffff] usable 0.000000] NX (Execute Disable) protection: active 0.000000] SMBIOS 3.0 present. 0.000000] DMI: CONTEC BX-956SD/Aptio CRB, BIOS 5.6.5 01/20/2017 0.000000] e820: update [mem 0x00000000-0x00000fff] usable ==> reserved 0.000000] e820: remove [mem 0x000a0000-0x000fffff] usable 0.000000] e820: last_pfn = 0x140000 max_arch_pfn = 0x400000000 0.000000] MTRR default type: uncachable...
  • Page 53 0.000000] RAMDISK: [mem 0x34441000-0x36218fff] 0.000000] ACPI: RSDP 00000000000f0580 00024 (v02 CONTEC) 0.000000] ACPI: XSDT 00000000b9376080 00084 (v01 CONTEC IPC-BXPT 01072009 AMI 00010013) 0.000000] ACPI: FACP 00000000b937e178 0010C (v05 CONTEC IPC-BXPT 01072009 AMI 00010013) 0.000000] ACPI: DSDT 00000000b9376198 07FDC (v02 CONTEC IPC-BXPT 01072009 INTL 20120913) 0.000000] ACPI: FACS 00000000b98b3f80 00040...
  • Page 54 5 Add this line 0.000000] node 0: [mem 0x1f100000-0x1fffffff] 0.000000] node 0: [mem 0x20100000-0xb933ffff] 0.000000] node 0: [mem 0xb9b92000-0xb9b92fff] 0.000000] node 0: [mem 0xb9bd5000-0xb9d40fff] 0.000000] node 0: [mem 0xb9ffa000-0xb9ffffff] 0.000000] node 0: [mem 0x100000000-0x13fffffff] 0.000000] On node 0 totalpages: 1020495 0.000000] DMA zone: 64 pages used for memmap 0.000000]...
  • Page 55 5 Add this line 0.000000] PM: Registered nosave memory: [mem 0x1f000000-0x1f0fffff] 0.000000] PM: Registered nosave memory: [mem 0x20000000-0x200fffff] 0.000000] PM: Registered nosave memory: [mem 0xb9340000-0xb936ffff] 0.000000] PM: Registered nosave memory: [mem 0xb9370000-0xb937ffff] 0.000000] PM: Registered nosave memory: [mem 0xb9380000-0xb98b3fff] 0.000000] PM: Registered nosave memory: [mem 0xb98b4000-0xb9b91fff] 0.000000] PM: Registered nosave memory: [mem 0xb9b93000-0xb9bd4fff] 0.000000] PM: Registered nosave memory: [mem 0xb9d41000-0xb9ff9fff] 0.000000] PM: Registered nosave memory: [mem 0xba000000-0xbaffffff]...
  • Page 56 5 Add this line 0.000000] Kernel command line: BOOT_IMAGE=/vmlinuz-3.10.0-514.el7.x86_64 root=/dev/mapper/cl-root ro crashkernel=auto rd.lvm.lv=cl/root rd.lvm.lv=cl/swap rhgb quiet LANG=ja_JP.UTF-8 0.000000] PID hash table entries: 4096 (order: 3, 32768 bytes) 0.000000] Memory: 3737904k/5242880k available (6764k kernel code, 1160900k absent, 344076k reserved, 4433k data, 1680k init) 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 0.000000] Hierarchical RCU implementation.
  • Page 57 5 Add this line 0.009066] CPU0: Thermal monitoring enabled (TM1) 0.009075] Last level iTLB entries: 4KB 0, 2MB 0, 4MB 0 0.009078] Last level dTLB entries: 4KB 128, 2MB 0, 4MB 0 0.009081] tlb_flushall_shift: 6 0.009196] Freeing SMP alternatives: 28k freed 0.010666] ACPI: Core revision 20130517 0.022643] ACPI: All ACPI Tables successfully acquired 0.023412] ftrace: allocating 25811 entries in 101 pages...
  • Page 58 5 Add this line 0.842969] ACPI: Added _OSI(Module Device) 0.842975] ACPI: Added _OSI(Processor Device) 0.842978] ACPI: Added _OSI(3.0 _SCP Extensions) 0.842981] ACPI: Added _OSI(Processor Aggregator Device) 0.845949] ACPI: EC: Look up EC in DSDT 0.861916] ACPI: Interpreter enabled 0.861954] ACPI: (supports S0 S3 S4 S5) 0.861958] ACPI: Using IOAPIC for interrupt routing 0.862022] PCI: Using host bridge windows from ACPI;...
  • Page 59 5 Add this line 1.279007] pci 0000:00:13.0: PME# supported from D3hot 1.279196] pci 0000:00:14.0: [8086:0f35] type 00 class 0x0c0330 1.279218] pci 0000:00:14.0: reg 0x10: [mem 0xd0800000-0xd080ffff 64bit] 1.279282] pci 0000:00:14.0: PME# supported from D3hot D3cold 1.279457] pci 0000:00:14.0: System wakeup disabled by ACPI 1.279526] pci 0000:00:1a.0: [8086:0f18] type 00 class 0x108000 1.279553] pci 0000:00:1a.0: reg 0x10: [mem 0xd0500000-0xd05fffff] 1.279569] pci 0000:00:1a.0: reg 0x14: [mem 0xd0400000-0xd04fffff]...
  • Page 60 5 Add this line 1.487360] ACPI: PCI Interrupt Link [LNKB] (IRQs 3 4 5 6 10 *11 12 14 15) 1.487493] ACPI: PCI Interrupt Link [LNKC] (IRQs 3 4 5 6 10 *11 12 14 15) 1.487627] ACPI: PCI Interrupt Link [LNKD] (IRQs 3 4 5 6 10 *11 12 14 15) 1.487770] ACPI: PCI Interrupt Link [LNKE] (IRQs 3 4 5 6 10 *11 12 14 15) 1.487903] ACPI: PCI Interrupt Link [LNKF] (IRQs 3 4 5 6 10 *11 12 14 15) 1.488040] ACPI: PCI Interrupt Link [LNKG] (IRQs 3 4 5 6 10 *11 12 14 15)
  • Page 61 5 Add this line 1.507297] system 00:03: [io 0x0290-0x029f] has been reserved 1.507304] system 00:03: Plug and Play ACPI device, IDs PNP0c02 (active) 1.507769] pnp 00:04: [dma 0 disabled] 1.507884] pnp 00:04: Plug and Play ACPI device, IDs PNP0501 (active) 1.508349] pnp 00:05: [dma 0 disabled] 1.508456] pnp 00:05: Plug and Play ACPI device, IDs PNP0501 (active) 1.712128] system 00:06: [mem 0xe0000000-0xefffffff] has been reserved...
  • Page 62 5 Add this line 1.721910] TCP: Hash tables configured (established 32768 bind 32768) 1.721997] TCP: reno registered 1.722023] UDP hash table entries: 2048 (order: 4, 65536 bytes) 1.722064] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes) 1.722213] NET: Registered protocol family 1 1.722255] pci 0000:00:02.0: Boot video device 1.722621] PCI: CLS 64 bytes, default 64 1.722714] Unpacking initramfs...
  • Page 63 5 Add this line 2.602704] input: Power Button as /devices/LNXSYSTM:00/LNXPWRBN:00/input/input1 2.602710] ACPI: Power Button [PWRF] 2.604063] GHES: HEST is not enabled! 2.604246] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled 2.624890] 00:04: ttyS0 at I/O 0x3f8 (irq = 4) is a 16550A 2.645602] 00:05: ttyS1 at I/O 0x2f8 (irq = 3) is a 16550A 2.646386] hpet: number irqs doesn't agree with number of timers 2.646527] Non-volatile memory driver v1.3...
  • Page 64 5 Add this line 2.651316] hub 2-0:1.0: USB hub found 2.651333] hub 2-0:1.0: 1 port detected 2.651609] usbcore: registered new interface driver usbserial 2.651623] usbcore: registered new interface driver usbserial_generic 2.651640] usbserial: USB Serial support registered for generic 2.651700] i8042: PNP: No PS/2 controller found. Probing ports directly. 2.653980] serio: i8042 KBD port at 0x60,0x64 irq 1 2.653993] serio: i8042 AUX port at 0x60,0x64 irq 12 2.654185] mousedev: PS/2 mouse device common for all mice...
  • Page 65 5 Add this line 2.683744] systemd[1]: Detected architecture x86-64. 2.683752] systemd[1]: Running in initial RAM disk. 2.683814] systemd[1]: Set hostname to <localhost.localdomain>. 2.761381] systemd[1]: Reached target Swap. 2.761411] systemd[1]: Starting Swap. 2.761806] systemd[1]: Created slice Root Slice. 2.761829] systemd[1]: Starting Root Slice. 2.761950] systemd[1]: Listening on udev Control Socket.
  • Page 66 5 Add this line 3.175384] usb 1-2: Manufacturer: Logitech 3.179697] FUJITSU Extended Socket Network Device Driver - version 1.1 - Copyright (c) 2015 FUJITSU LIMITED 3.181112] input: Logitech USB Optical Mouse as /devices/pci0000:00/0000:00:14.0/usb1/1-2/1-2:1.0/input/input2 3.181430] hid-generic 0003:046D:C05A.0001: input,hidraw0: USB HID v1.11 Mouse [Logitech USB Optical Mouse] on usb- 0000:00:14.0-2/input0 3.216082] dca service started, version 1.12.1 3.218735] pps_core: LinuxPPS API ver.
  • Page 67 5 Add this line 3.281651] Console: switching to colour dummy device 80x25 3.281831] i915 0000:00:02.0: irq 99 for MSI/MSI-X 3.281849] [drm] Supports vblank timestamp caching Rev 2 (21.10.2013). 3.281852] [drm] Driver supports precise vblank timestamp query. 3.290690] vgaarb: device changed decodes: PCI:0000:00:02.0,olddecodes=io+mem,decodes=io+mem:owns=io+mem 3.293340] pps pps1: new PPS source ptp1 3.293349] igb 0000:02:00.0: added PHC on eth1 3.293353] igb 0000:02:00.0: Intel(R) Gigabit Ethernet Network Connection...
  • Page 68 5 Add this line 3.573231] Raw EDID: 3.573236] 00 ff ff ff ff ff ff 00 0d 12 11 75 70 03 00 00 3.573240] 05 17 01 04 95 2b 1d 78 e2 80 42 ac 51 30 b4 25 3.573244] 10 50 53 00 00 00 01 01 01 01 01 01 01 01 01 01 3.573248]...
  • Page 69 5 Add this line 3.936276] usb 1-5: New USB device strings: Mfr=0, Product=0, SerialNumber=0 3.936719] hub 1-5:1.0: USB hub found 3.936786] hub 1-5:1.0: 3 ports detected 4.332066] Console: switching to colour frame buffer device 128x48 4.337631] i915 0000:00:02.0: fb0: inteldrmfb frame buffer device 4.360193] sd 0:0:0:0: [sda] 62915328 512-byte logical blocks: (32.2 GB/30.0 GiB) 4.360346] sd 0:0:0:0: [sda] Write Protect is off 4.360353] sd 0:0:0:0: [sda] Mode Sense: 00 3a 00 00...
  • Page 70 5 Add this line 7.746095] snd_hda_intel 0000:00:1b.0: irq 100 for MSI/MSI-X 7.767598] sd 0:0:0:0: Attached scsi generic sg0 type 0 7.929095] alg: No test for __gcm-aes-aesni (__driver-gcm-aes-aesni) 7.939374] snd_hda_codec_realtek hdaudioC0D0: ALC892: SKU not ready 0x00000100 7.941842] snd_hda_codec_realtek hdaudioC0D0: autoconfig for ALC892: line_outs=4 (0x14/0x16/0x15/0x17/0x0) type:line 7.941850] snd_hda_codec_realtek hdaudioC0D0: speaker_outs=0 (0x0/0x0/0x0/0x0/0x0) 7.941854] snd_hda_codec_realtek hdaudioC0D0:...
  • Page 71 5 Add this line 14.119897] Netfilter messages via NETLINK v0.30. 14.140366] ip_set: protocol 6 23.105846] tun: Universal TUN/TAP device driver, 1.6 23.105852] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com> 23.126582] device virbr0-nic entered promiscuous mode 23.598979] virbr0: port 1(virbr0-nic) entered listening state 23.599004] virbr0: port 1(virbr0-nic) entered listening state 23.599095] IPv6: ADDRCONF(NETDEV_UP): virbr0: link is not ready 23.776942] virbr0: port 1(virbr0-nic) entered disabled state...
  • Page 73 //www.contec.co.jp/ English http: //www.contec.com/ Chinese http: //www.contec.com.cn/ No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. [06302017] [06302017] Management No. NA05756 Parts No. LYVD341...
