IPC Series

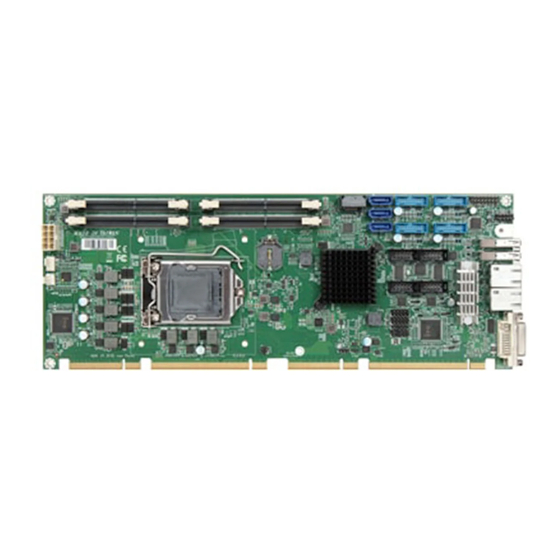

PICMG 1.3 Single Host Board
GSPI-Q3700-LLVA
User's Manual
CONTEC CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IPC Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Contec IPC Series

Summary of Contents for Contec IPC Series

  • Page 1 IPC Series PICMG 1.3 Single Host Board GSPI-Q3700-LLVA User’s Manual CONTEC CO., LTD.

  • Page 2: Check Your Package

    SATA III cable Dual-head COM port cable with bracket The user's manual for this product is available as a PDF file through CONTEC’s Web site. The user's manual provides such information as hardware settings, functions for each component, and BIOS settings.

  • Page 3: Copyright

    No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document.

  • Page 4: Table Of Contents

    Table of Contents Check Your Package ..........................ii ◆Product Configuration List ......................ii ◆Product Configuration Image ....................ii Copyright ............................iii Trademarks ............................iii Certification ............................iii Technical Support ..........................iii Table of Contents ..........................iv 1. INTRODUCTION About the Product ..........................6 ◆Features.............................
  • Page 5 5．SYSTEM RESOURCES Intel Coffee lake-S PCH ........................26 Main Memory ............................ 26 Installing the Single Board Computer ....................26 ◆Chipset Component Driver ..................... 26 ◆Intel® HD Graphics 630 ......................27 ◆Intel LAN I210AT/I219LM Gigabit Ethernet Controller ............27 6．BIOS SETUP Introduction ............................

  • Page 6: Introduction

    1. Introduction About the Product ® GSPI-Q3700-LLVA, a PICMG 1.3 Single Host Board (SHB), with Intel generation Processor which supported from Core i7/i5/i3 to Celeron and Pentium. GSPI-Q3700-LLVA implements flexible PCI Express Gen 3 expansion with dedicated processor SKU. GSPI-Q3700-LLVA adopts Intel Q370 PCH, providing up to 128GB DDR4-2133 SO-DIMM system memory ®...

  • Page 7: Customer Support

    You can download updated driver software and differential files as well as sample programs available in several languages. ■Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery time, or estimate information. Limited One-Year Warranty CONTEC products are warranted by CONTEC CO., LTD.

  • Page 8: Liability

    Liability The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor be liable for any incidental or consequential damages due to such defect or consequences that arise from inexperienced usage, misuse, or malfunction of this device. Safety precaution Understand the following definitions and precautions to use the product safely.
  • Page 9 To prevent corruption of files, always shutdown the OS before turning off this product. CONTEC reserves the right to refuse to service a product modified by the user. In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power cord immediately and contact your retailer.

  • Page 10: 2．System Reference

    2 ． System Reference Specification Table 2.1. Functional specification Model GSPI-Q3700-LLVA 8th/ 9th Gen Intel® Core™/Celeron/ Pentium 35~65W processors ® Chipset Intel Q370 PCH System BIOS AMI UEFI BIOS Up to 128 GB non-ECC DDR4 on four so-DIMM sockets. Supports dual System memory channel DDR4 2133 MHz SDRAM Graphics...

  • Page 11: Mechanical Dimensions

    Mechanical Dimensions Mainboard Dimension Figure 2.1. GSPI-Q3700-LLVA dimension (Front) Figure 2.2. GSPI-Q3700-LLVA dimension (Back) GSPI-Q3700-LLVA User’s Manual...

  • Page 12: Block Diagram

    Block Diagram DDR4 SODIMM*2 2133MT/s DP 1.2 ASM1442K HDMI 1.4a Non-ECC Up to 32GB COFFEE DDR4 SODIMM*2 2133MT/s DP 1.2 CH7517 LAKE-S Non-ECC Up to 32GB DVI-I Refresh DP 1.2 IT6561FN DVI-D Quad Core PCIe*16 PICMG BP Dual Core Rear Up to 95W LGA1151 DMI Gen3...

  • Page 13: 3．Hardware Setup

    3 ． Hardware setup Jumpers and Connectors This Chapter indicates the locations of jumpers, headers and connectors. Users may find useful information related to hardware settings in this chapter. Figure 3.1. Jumpers and I/O panel Orientation GSPI-Q3700-LLVA User’s Manual...

  • Page 14: Jumpers Setting

    Jumpers Setting For users to customize GMB-AC2460-LLVA features. In the following sections, Short means covering a jumper cap over jumper pins; Open or N/C (Not Connected) means removing a jumper cap from jumper pins. Users can refer to Figure 3.1. Jumpers and I/O panel Orientation for jumper positions and table 3.1. to 3.4. for jumper functions and signal descriptions.

  • Page 15: Connector Settings

    Table 3.4. JP6: AT/ATX Mode Select PIN No. Signal Description 1-2, Short AT mode 1-2, Open ATX mode Connector Setting Connector Allocation I/O peripheral devices are connected to the interface connectors Table 3.5. Connector Function List Connector Function Remark Front Panel Pin Header Header 8Px2/2.54mm J2/J3/13/14 USB 2.0/ 3.1 connector...
  • Page 16 Table 3.6. J1: Front Panel Connector PIN No. Description PIN No. Description PWR_LED (+) PWR_LED (-) I219_LAN (+) I219_LAN (-) BUZZER I210_LAN (-) Ground I210_LAN (+) Power Button Signal HDD_LED (+) Reset Signal HDD_LED (-) Ground Table 3.7. J2/J3/13/14: USB 2.0/ 3.1 Connector PIN No.
  • Page 17 Table 3.9. J5: HDMI Connector PIN No. Description PIN No. Description HDMI_D0_P Ground HDMI_D0_N HDMI_D1_P Ground HDMI_D1_N HDMI_D2_P Ground HDMI_D2_N HDMI_D3_P Ground HDMI_D3_N HDMI_DDC_CLK HDMI_DDC_DATA Ground 5V_HDMI HDMI_HPD Table 3.10. J9: Audio Pin Header PIN No. Description PIN No. Description Ground MIC_IN Ground...
  • Page 18 Table 3.12. J16/J19: USB 2.0/ 3.1 (Gen2) Connector PIN No. Description 5VDual USB2_N USB2_P Ground USB3_RX_N USB3_RX_P Ground USB3_TX_N USB3_TX_P Table 3.13. J17/J18/J23/J24: COM1/Com2/COM3/COM4 Pin Header PIN No. Description PIN No. Description DCD# RXD# TXD# DTR# Ground DSR# RTS# CTS# Table 3.14.
  • Page 19 Table 3.15. J21: RJ45 Connector for I210 PIN No. Description PIN No. Description MDI0_P MDI0_N MDI1_P MDI1_N LAN_CT1 LAN_CT2 MDI2_P MDI2_N MDI3_P MDI3_N LED_100 LED_1000 LED_LINK#/ACT# ACT_LED Table 3.16. J22: System FAN PIN No. Description PIN No. Description DIO_GP1 DIO_GP2 DIO_GP3 DIO_GP4 DIO_GP5...
  • Page 20 Table 3.19. J27: SMBus Pin Header PIN No. Description Clock Ground Data Table 3.20. J28: Keyboard/ Mouse Connector PIN No. Description PIN No. Description Mouse Data Keyboard Date Ground Ground PS2 Power PS2 Power Mouse Clock Keyboard Clock Table 3.21. J29: DVI-I Connector PIN No.
  • Page 21 Table 3.22. J31: M22 Key-M Slot PIN No. Description PIN No. Description Ground 3.3V Ground 3.3V RX3_N RX3_P Ground LED# TX3_N 3.3V TX3_P 3.3V Ground 3.3V RX2_N 3.3V RX2_P Ground TX2_N TX2_P Ground RX1_N RX1_P Ground TX1_N DEVSLP TX1_P Ground RX0_N/SATA_B+ RX0_P/SATA_B- Ground...
  • Page 22 3.3V PEDET 3.3V Ground 3.3V Ground Ground GSPI-Q3700-LLVA User’s Manual...

  • Page 23: 4．Signal Description

    4 ． Signal Description Watch-Dog Signal #Define WDTCFG 0x06 // WDT Timer Coutrol Register #Define WDTMIN 0x07 // WDT Timer Counter Register (Minute) #Define WDTSEC 0x08 // WDT Timer Counter Register (Second) #Define EC_IOPort 0xE300 // Default, reference to BIOS configuration VOID Write_EC_SRAM(UINT8 Offset,UINT8 Value){ IoWrite8(EC_IOPort+Offset,Value);...

  • Page 24: Gpio Signal

    // Enable WDT 10min, 20sec Write_EC_SRAM(WDTSEC,20); Write_EC_SRAM(WDTSEC,10); Write_EC_SRAM(WDTCFG,0x03); //Bit0: WDT Enable, BIT1: 1:Minute Mode } GPIO Signal #Define GPCR 0x2B // GPIO Coutrol Register, Bit7 = GPO3, Bit6 = GPO2, ..., // Bit3 = GPI3, Bit2 = GPI2, ..., // 0: Output; 1: Input #Define GPDR 0x2C // GPIO Status Register, Bit7 = GPO3, Bit6 = GPO2, ..., // Bit3 = GPI3, Bit2 = GPI2, ...,...
  • Page 25 Temp = Read_EC_SRAM(GPDR); //Bit3-0: GPI3-0 status // Set GPO4 Output & High Temp = Read_EC_SRAM(GPDR); Write_EC_SRAM(GPDR,Temp|0x80); //Bit7-4: Set GPO3-0 status, 0: Low 1: High GSPI-Q3700-LLVA User’s Manual...

  • Page 26: 5．System Resources

    5 ． System Resources Intel Coffee lake-S PCH Intel® Q370 Chipset Main Memory GSPI-Q3700-LLVA provides 4 x 260-pin SO-DIMM sockets which supports DDR4 non-ECC memory. The maximum memory can be up to 128GB. Memory clock and related settings can be detected by BIOS via SPD interface.

  • Page 27: Intel® Hd Graphics 630

    ◆Intel® HD Graphics 630 GSPI-Q3700-LLVA has integrated Intel® HD Graphics 630 which supports DirectX 12、OpenCL 2.0、 OpenGL 4.5. It is the most advanced design to gain an outstanding graphic performance. GSPI-Q3700- LLVA supports VGA+DVI-D by DVI-I connector on bracket, and onboard HDMI display output. This combination makes GSPI-Q3700-LLVA an excellent performance hardware.

  • Page 28: 6．Bios Setup

    6 ． BIOS Setup Introduction The following section describes the BIOS setup program. The BIOS setup program can be used to view and change the BIOS settings for the module. Only experienced users should change the default BIOS settings. BIOS Setup Power on the computer and the system will start POST (Power on Self Test) process.

  • Page 29: Configuration

    ◆Configuration Use this menu to set up the items of special enhanced features CPU Configuration CPU Configuration Parameters GSPI-Q3700-LLVA User’s Manual...
  • Page 30 Feature Option Description Enabled Enable/Disable CPU Flex Ratio CPU Flex Ratio Override Disabled Programming Number of cores to enable in each Active Processor Cores processor package. Enabled Enable or Disable Hyper-Threading Disabled Hyper-Threading Technology Max Non-Turbo Performance Select the performance state that Boot performance mode Max Battery the BIOS will set starting from...
  • Page 31 Enabled Package C State Demotion Package C-State Demotion Disabled Enabled Package C State Un-demotion Package C-State Un-demotion Disabled Disable – Sets bit 30 of Enabled C State Pre-Wake POWER_CTL MSR(0x1FC) to Disabled 1 to disable the C state Pre-Wake When set, will map IO_read Enabled instructions sent to IO registers IO MWAIT Redirection...
  • Page 32 Chipset Configuration Configuration chipset feature Feature Option Description Enabled VT-d VT-d Capability Disabled Enable/Disable above 4GB Above 4GB MMIO Enabled MemoryMappedIO BIOS assignment BIOS assignment Disabled This is enabled automatically when Aperture Size is set to 2048MB Enabled Control Detection of the HD-Audio HD Audio Disabled device...
  • Page 33 AMT Configuration Configure Intel® Active Management Technology Parameters Feature Option Description When disable AMT BIOS Features are no Enabled longer supported and user is no longer able AMT BIOS Features Disabled to access MEBx Setup. Note: This option does not disable Manageability Features in FW ME Unconfig.
  • Page 34 Graphic Configuration Configuration graphic settings Feature Option Description Auto Select which of IGFX/PEG/PCI Graphics IGFX Primary Display device should be Primary Display Or select SG for Switchable Gfx. PCIe Auto Keep IGFX enable based on the Internal Graphics Enabled setup options. Disabled 128M 160M...
  • Page 35 512M, 1024M 1536M 2048M, 24M, 44M, 256M Select DVMT5.0 Total Graphic Memory DVMT Total Gfx Mem 128M size used by the Internal Graphics Device GSPI-Q3700-LLVA User’s Manual...
  • Page 36 Power Control Configuration System Power Control Configuration Parameters Feature Option Description Enables or Disables System ability to Enabled Enable Hibernation Hibernate (OS/S4 Sleep State). This Disabled option may be not effective with some OS. Select the highest ACPI sleep state the S3 (Suspend to RAM) ACPI Sleep State system will enter when the SUSPEND...
  • Page 37 PCI/ PCIe Configuration PCI, PCI-X and PCI Express Settings Feature Option Description 1x16 PEG Port Land Width Set PEG port Lane width 1x8+2x4 GSPI-Q3700-LLVA User’s Manual...
  • Page 38 PC Express Root Port7, Port9, Port21 Feature Option Description PCI Express Root Enabled Control the PCI Express Root Port. Port 7/9/21 Disabled Auto Set the ASPM Level: Force L0s – Force all links to L0s State ASPM 7/9/21 AUTO-BIOS auto configure L0sL1 DISABLE –...
  • Page 39 LAN Configuration Configuration on Board LAN device. Feature Option Description Enabled PCH LAN Controller Enable or disable onboard NIC Disabled Enabled Enable or disable integrated LAN to Wake on LAN Disabled wake the system. Enabled Intel I210 LAN Controller Intel I210 LAN Controller. Disabled Enabled Enable or disable integrated LAN to...
  • Page 40 Enabled Support to Enable/Disable IPSEC IPSEC Certificate Disabled certificate for Ikev Wait time in seconds to press ESC key to PXE boot wait time abort the PXE boot Number of times the presence of media Media detect count will be checked SATA Configuration SATA device options settings.
  • Page 41 Serial ATA Port 0~5 Enabled Port 0~5 Enable or Disable SATA Port Disabled Enabled Hot Plug Designates this port as Hot Pluggable Disabled Hard Disk Drive Identify the SATA port is connected to SATA Device Type Solid State Drive Solid State Drive or Hard Disk Drive USB Configuration USB Configuration Parameters Feature...
  • Page 42 TPM Configuration Trusted Computing Setting Feature Option Description Enables or Disables BIOS support for security Enabled device. O.S. will not show Security Device. Security Device Support Disabled TCG EFI protocol and INT1A Interface will not be available. Enabled SHA-1 PCR Bank Enables or Disables SHA-1 PCR Bank Disabled Enabled...
  • Page 43 Select the TCG2 Spec Version Support TCG_1_2 TCG_1_2: The Compatible mode for Win8/Win10 TPM2.0 UEFI Spec Version TCG_2 TCG_2: Support new TCG2 protocol and event format for Win10 or later Physical Presence Select to Tell O.S. to Support PPI Spec Spec Version Version 1.2 or 1.3 TPM 1.2 will restrict support to TPM 1.2 devices,...
  • Page 44 Serial Port 1 Configuration Set Parameters of Serial Port 1 (COM A) Feature Option Description Enabled Serial Port Enable or Disable Serial Port (COM) Disabled Enabled Enable/Disable RS-485 Auto RS-485 Auto Flow Control Disabled Flow Function Auto IO=3F8h; IRQ=4 IO=240h; IRQ=3,4,5,6,7,10,11,12 Select an optimal setting for Super Change Settings IO Device...
  • Page 45 Serial Port 2 Configuration Set Parameters of Serial Port 2 (COM B) Feature Option Description Enabled Serial Port Enable or Disable Serial Port (COM) Disabled Enabled Enable/Disable RS-485 Auto RS-485 Auto Flow Control Disabled Flow Function Auto IO=2F8h; IRQ=3 Select an optimal setting for Super IO=240h;...
  • Page 46 Serial Port 3 Configuration Set Parameters of Serial Port 3 (COM C) Feature Option Description Enabled Serial Port Enable or Disable Serial Port (COM) Disabled RS-232 RS-232/422/485 Serial port 3 RS-232/422/485 RS-485 HALF DUPLEX Control Option Control Option RS-422 FULL DUPLEX Enabled Enable/Disable RS-485 Auto Flow RS-485 Auto Flow Control...
  • Page 47 Serial Port 4 Configuration Set Parameters of Serial Port 4 (COM D) Feature Option Description Enabled Serial Port Enable or Disable Serial Port (COM) Disabled RS-232 RS-232/422/485 Serial port 3 RS-232/422/485 RS-485 HALF DUPLEX Control Option Control Option RS-422 FULL DUPLEX Enabled Enable/Disable RS-485 Auto Flow RS-485 Auto Flow Control...
  • Page 48 H/W Monitor Monitor hardware Status Feature Option Description Enabled Smart CPU Fan Function Enable or Disable Smart CPU Fan Disabled Thermal Cruise™ Mode Fan Speed Cruise™ CPU Fan Mode Smart Fan Mode Select Smart Fan™ III Mode CPU Tolerance Temp CPU Fan Tolerance Temperature CPU Start Target Temp CPU Start Fan Target Temperature.
  • Page 49 System Start Fan Target System Start Target Temp Temperature. System Full Target Temp System Full Fan Target Temperature. Serial Port Console Redirection Serial Port Console Redirection Feature Option Description Enabled Console Redirection Console Redirection Enable or Disable Disabled GSPI-Q3700-LLVA User’s Manual...
  • Page 50 Console Redirection Settings Feature Option Description A parity bit can be sent with the data bits to detect some transmission errors. Even: parity bit is 0 if the num of 1’s in ANSI the data bits are even. Odd: parity bit is 0 if VT100 num of 1’s in the data bits is odd.
  • Page 51 None Even Enable VT-UTF8 Combination Key Support Parity for ANSI/VT100 terminals Mark Space With this mode enabled only text will be sent. Stop Bits This is to capture Terminal data. None Flow Control Enables or disables extended terminal resolution Hardware RTS/CTS VT-UTFB Combo Enabled Select FunctionKey and KeyPad on Putty...

  • Page 52: Security

    ◆Security Feature Option Description [Setup] check password when enter setup screen. Setup Password Check Mode [Power on] check password on every Power on time system power on. Administrator Password Set Administrator Password GSPI-Q3700-LLVA User’s Manual...

  • Page 53: Boot

    ◆Boot Feature Option Description Number of seconds to wait for setup activation Setup Prompt Timeout key. 65535(0xFFFF) means indefinite waiting. Bootup NumLock State Select the keyboard NumLock state Enabled CSM Support Enable/Disable CSM support Disabled Do not launch Controls the execution of UEFI and Network UEFI Legacy Network 0pROM...
  • Page 54 UEFI and Legacy This option controls Legacy/UEFI Boot option UEFI only ROMs priority Legacy only Enabled Enables or disables Quiet Boot option and Full Screen LOGO Disabled Full screen Logo. Enabled Post Report Post Report Support Enabled/Disabled Disabled Enabled Summary Screen Summary Screen Support Enabled/Disabled Disabled UEFI...

  • Page 55: Save And Exit

    ◆Save and Exit Feature Option Description Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes. Restore/Load Default values for all the Restore Defaults setup options. Reset the system after saving the changes. UEFI: Built-in EFI Shell (Boot option filter: UEFI only) Attempts to Launch EFI Shell application...

  • Page 56: 7．Troubleshooting

    7 ． Troubleshooting This section provides a few useful tips to quickly get GSPI-Q3700-LLVA running with success. This section will primarily focus on system integration issues, in terms of BIOS setting, and OS diagnostics. ◆Hardware Quick Installation ATX Power Setting Unlike other Single board computer, GSPI-Q3700-LLVA supports ATX only.

  • Page 57: Bios Setting

    It is recommended to do this so you can be sure the system is running with the BIOS setting that Contec has highly endorsed. As a matter of fact, users can load the default BIOS setting at any time when system appears to be unstable in boot up sequence.
  • Page 58 GSPI-Q3700-LLVA User’s Manual CONTEC CO.,LTD July 2020 Edition 3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan Japanese http://www.contec.com/jp English http://www.contec.com/ Chinese http://www.contec.com/cn All rights reserved. This product and this document are protected by copyright law. Unauthorized copying, duplication, reproduction, and tampering are prohibited.
