Component Function

LED: POWER, ACCESS, STATUS

There are 3 LED in front of this product.

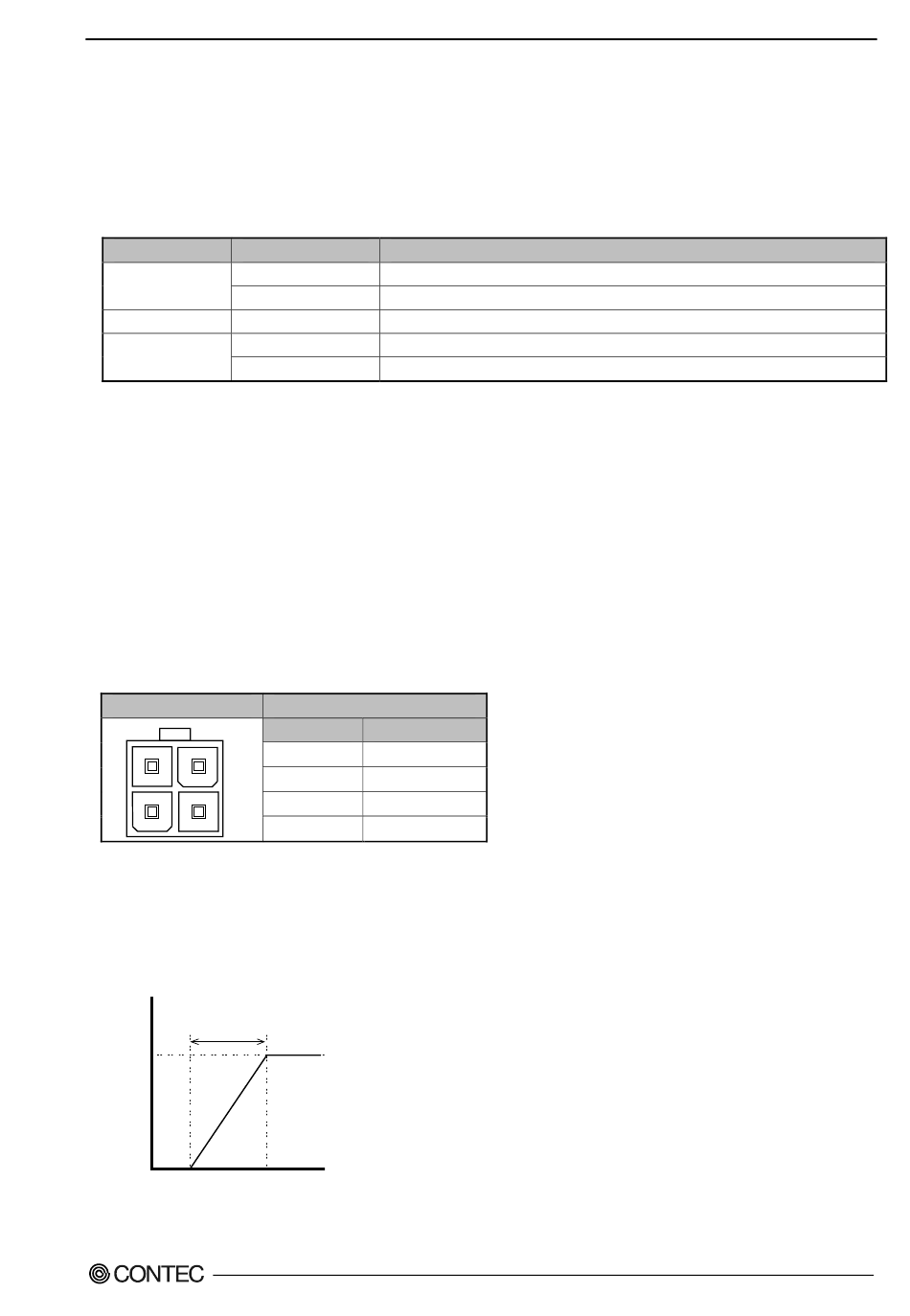

Table 4.2. Display Contents of LED
LED name
POWER LED OFF
ON (Green)
ACCESS LED ON (Orange)
STATUS LED OFF
Flashing, ON (Red)
*1 CONTEC Manager that controls STATUS LED is available. (It is already installed for the product OS pre-installed
type when shipped from the factory)
CONTEC Manager can be downloaded through the CONTEC's Web site. For more detailed information, contact your
retailer.

DC Power Input Connector: DC-IN

To supply the power, always use the power supply listed below.
Rated input voltage
Range of input voltage
Power capacity (PT-956SLX-DCxxxxxx)
Power capacity (PT-956SHX-DCxxxxxx) : 12V 3.5A or more, 24V 1.9A or more
Table 4.3. DC Power Connector
Connector type
4 3
2 1
Applicable connector on the connector side
Housing : 9357-04(mfd. by ALEX) or 5557-04R (mfd. by MOLEX)
Contact : 4256T2-LF(AWG18-24) (mfd. by ALEX) or 5556 (AWG18-24) (mfd. by MOLEX)
Applicable connector on the connector side
Voltage
2 - 30mS
12V
Figure 4.3. Graph of Rise Time of Power Supply
PT-956SxX Series User's manual
State
Indicates that this product is switched off.
Indicates that this product is switched on.
Indicates that the SATA device is being accessed.
You can control the behavior of LED from the user application. *1
You can control the behavior of LED from the user application. *1
: 12 - 24VDC
: 10.8 - 31.2VDC
: 12V 3.6A or more, 24V 1.9A or more
9360-04P(mfd. by ALEX)
Pin No. Signal name
1 GND
2 GND
3 12 - 24V
4 12 - 24V
Time
4. Each Component Function
Display contents
