3. Hardware Setup
When using an installation panel with round mounting holes (PT-956SHX-DCxxxxxx)
(1) Cut out a panel according to the following dimensions to mount the main unit.
Panel thickness range 1.6 - 7mm

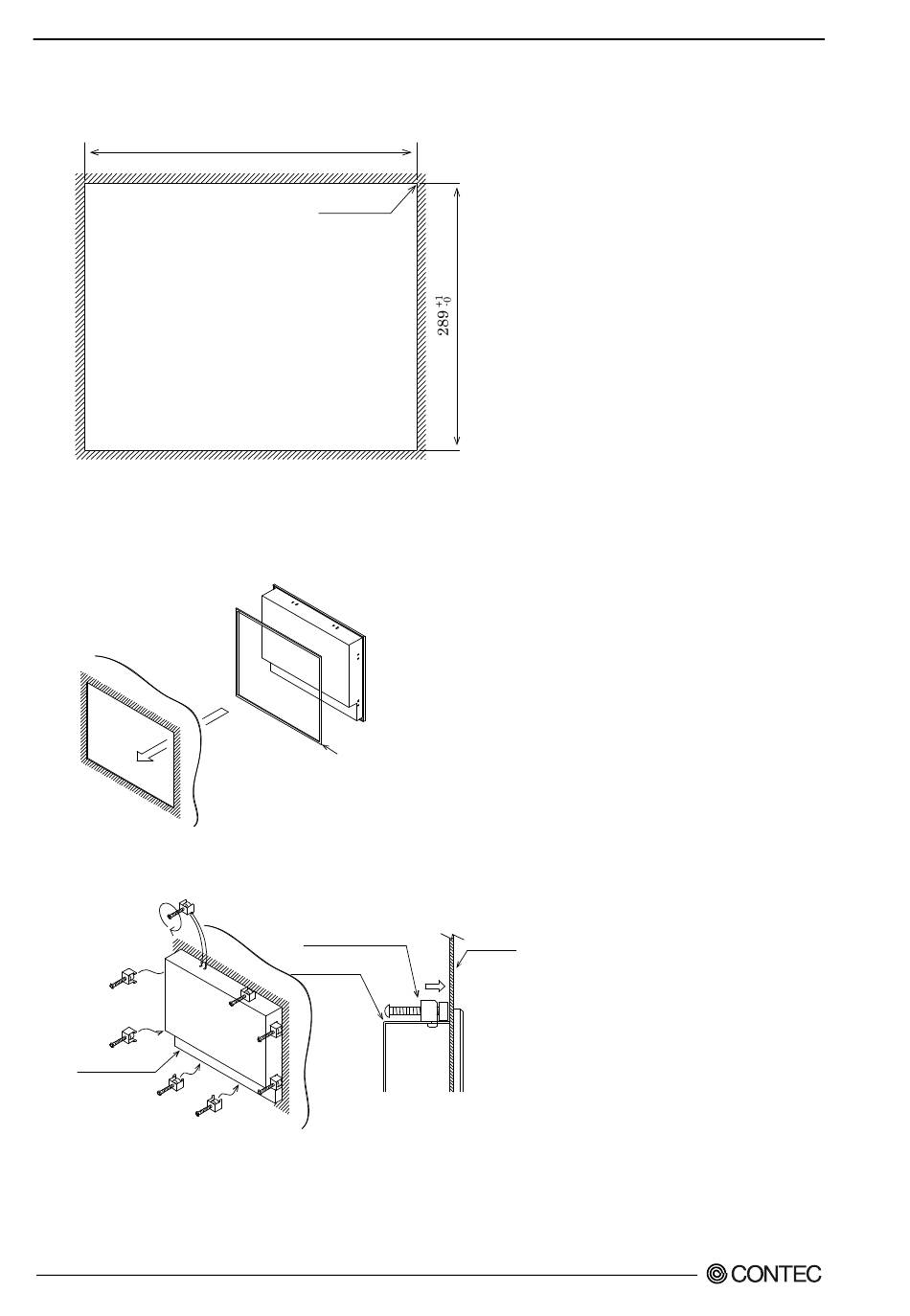

Figure 3.7. Dimensions of Panel Opening (PT-956SHX-DCxxxxxx)
Place the waterproof packing in the groove on the front face of the main body and insert the main body into the panel
(2)
from the external side.
Figure 3.8. Attaching the waterproof packing (PT-956SHX-DCxxxxxx)
(3) Hold the attachment fittings from the inside of the panel and fixed them with screws.
Main body
Overtighteing screws may result in damage.
Proper tightening torque for splash-proof is
2.5 - 3.0kgf·cm.
Figure 3.9. Hardware Setup (PT-956SHX-DCxxxxxx)
20
358
+1
-0
R1 or less
[mm]
Wateproof packing
(supplied)
Metal fittings
Main body
Panel
