4. Each Component Function
USB 3.0 Ports: USB3.0
This product is equipped with 1 port for USB 3.0 interface.

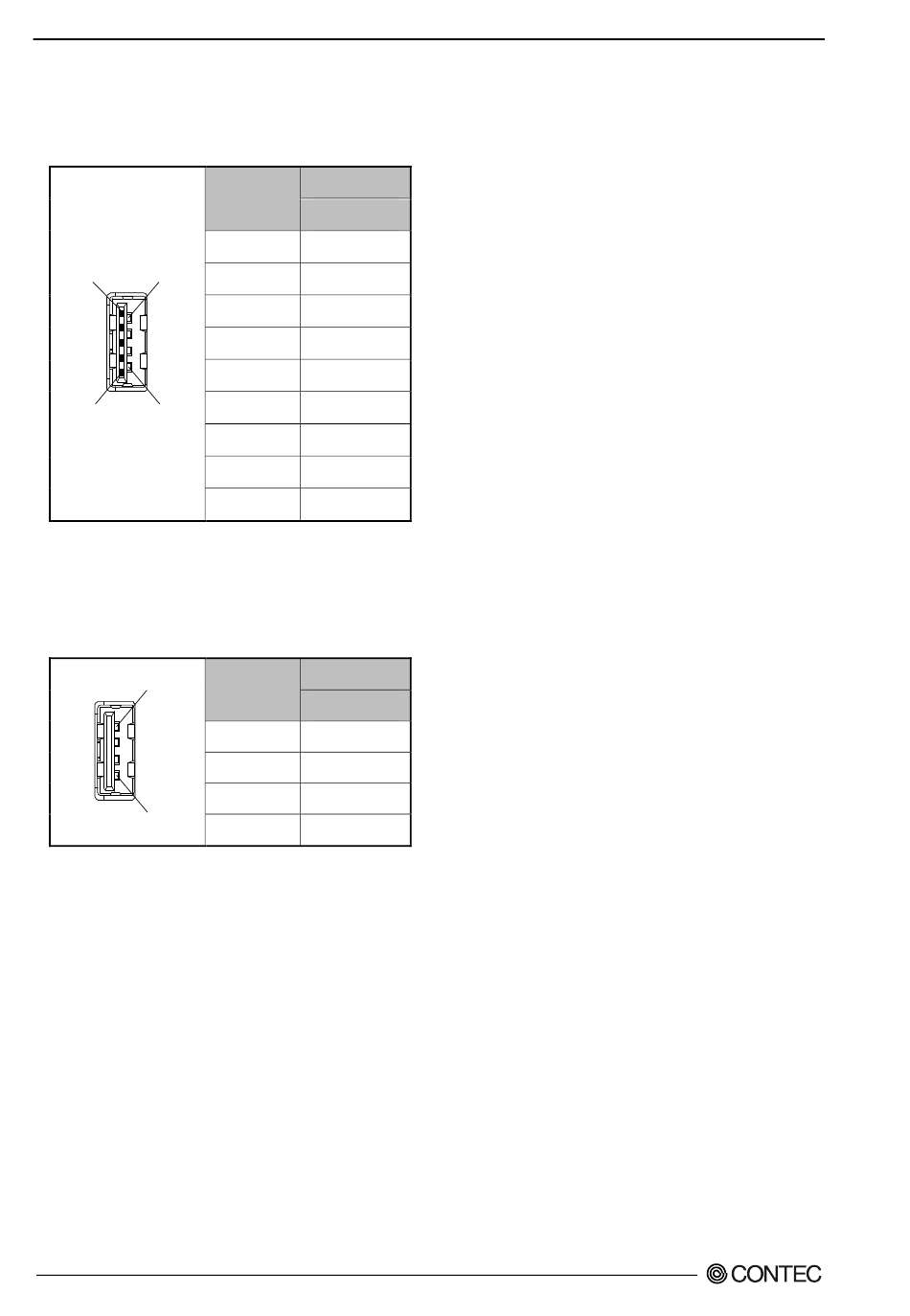

Table 4.5. USB 3.0 Connector
5
4
9
1
USB 2.0 Ports: USB2.0
This product is equipped with 3 port for USB 2.0 interface.
Table 4.6. USB 2.0 Connector
4
1
30
Function
Pin No.
USB3.0
1
USB_VCC
2
DATA-
3
DATA+
4
USB_GND
5
SSRX-
6
SSRX+
7
USB_GND
8
SSTX-
9
SSTX+
Function
Pin No.
USB2.0
1
USB_VCC
2
DATA-
3
DATA+
4
USB_GND
PT-956SxX Series User's manual
