AUMA SAV 07.2 Operation Instructions Manual

Multi-turn actuators
Hide thumbs Also See for SAV 07.2:
Table of Contents

Advertisement

Quick Links

Download this manual

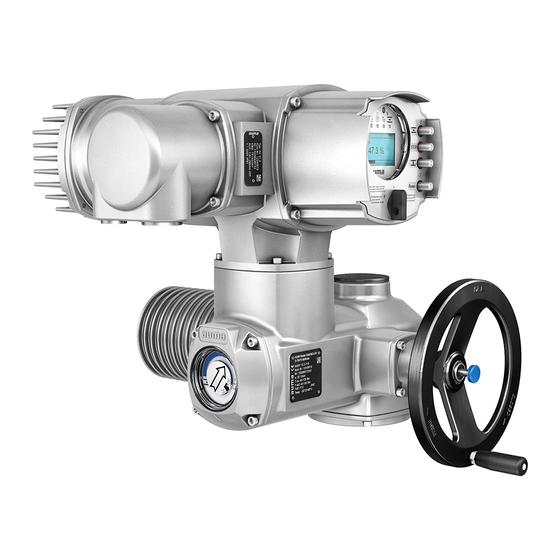

Multi-turn actuators
SAV 07.2
SAV 16.2
SARV 07.2
SARV 16.2
Control unit: electronic (MWG)
with actuator controls
ACV 01.2 Non-Intrusive
Control
Parallel
Profibus DP
Modbus RTU
Modbus TCP/IP
EtherNet/IP
Foundation Fieldbus
HART
Operation instructions
Assembly and commissioning

Advertisement

Table of Contents
loading

Related Manuals for AUMA SAV 07.2

Summary of Contents for AUMA SAV 07.2

  • Page 1 Multi-turn actuators SAV 07.2 SAV 16.2 SARV 07.2 SARV 16.2 Control unit: electronic (MWG) with actuator controls ACV 01.2 Non-Intrusive Control Parallel Profibus DP Modbus RTU Modbus TCP/IP EtherNet/IP Foundation Fieldbus HART Operation instructions Assembly and commissioning...
