Wiring Method P6 - SMC Networks ITV1000-IL Series Operation Manual

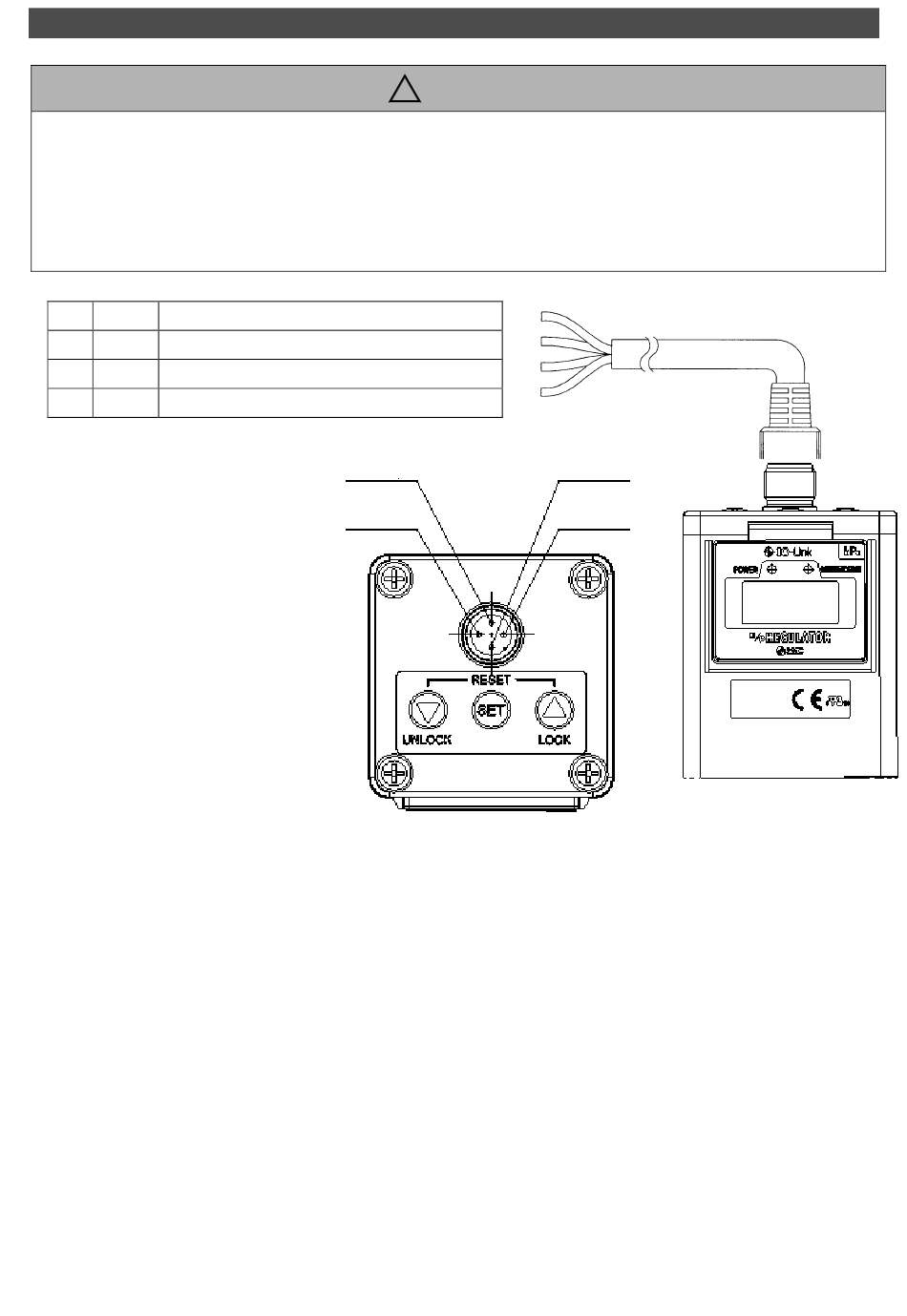

Wiring method
①
Proceed carefully, as incorrect wiring can cause damage.
②
Use DC power supply with sufficient capacity and a low ripple.
③
Turn off the power supply to remove and insert the connector.
④
Never turn the right angled type connector as it is not designed to turn.
1 Brown
White
2
3 Blue
4
Black IO-Link communication data (C/Q)
Note) The wire color is for
when optional
cable is used.
!
Power supply（L+）
No Connect
GND (L-)
3:Blue
4:Black
Caution
1:Brown
2:White
