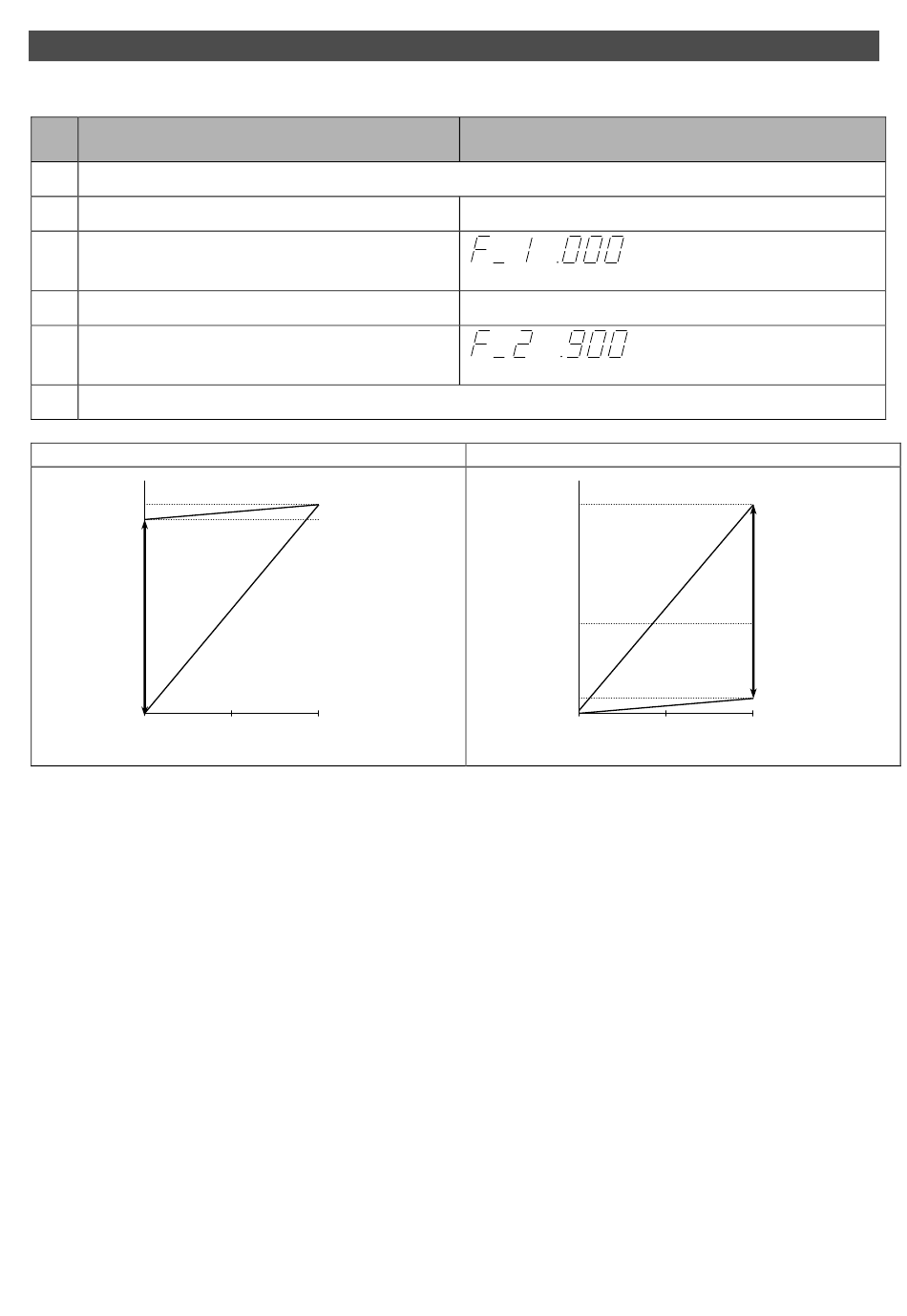

Setting of min. pressure, max. pressure
Interlocking with an IO-Link parameter.
Key operation
No
(1) Deactivate the key lock if necessary (see page 22).
(2) Press S-key
Set the minimum pressure by using the △
(3)
and ▽ keys.
(4) Press S-key
Set the maximum pressure by using the
(5)
△ and ▽ keys.
(6) Activate the key lock if necessary (see page 22).
Minimum pressure (F_1) adjusting range
100%
90%
0%
0
(Note 1): F_1 is adjustable in a range from 0% to 90% of the rated value.
(DEFAULT VALUE: 0%)
(Note 2): The pressure of less than 0% is not output, even if F_1 is adjusted to less than 0%.
(Note 3): F_2 is adjustable in a range from 10 to 120% of the rated value.
(DEFAULT VALUE: 100%)
(Note 4): Do not input the signal as like output the pressure of more than 100%.
Please use in a range of rating.
(Note 5): The difference between F_1 and F_2 is adjustable in a range of 10% of the rated value.
(Note 6): The adjustment like making the relation of F_1>F_2 is not available.
50
100%
LED Display
*Adjusting range: Refer to note 1 to 6
*Adjusting range: Refer to note 1 to 6
Maximum pressure (F_2) adjusting range
120%
100%
10%
0%
0
- 23 -
(displayed alternately)
(displayed alternately)
50
100%
