Gain Setting P27 - SMC Networks ITV1000-IL Series Operation Manual

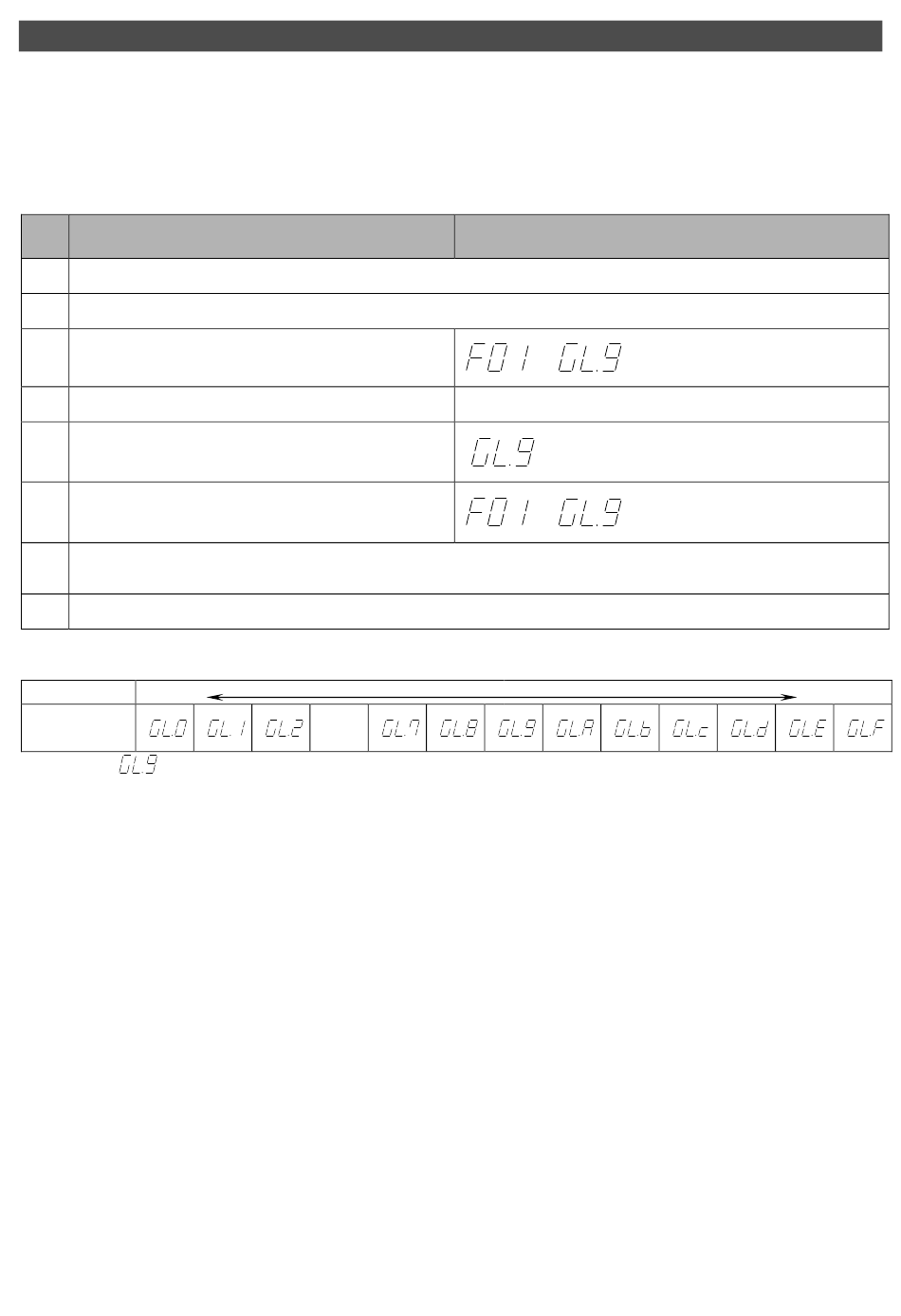

Gain setting
Interlocked with the IO-Link parameter.
Normal operation does not require the adjustment of gain.
This product can change the response with this gain setting.
When the gain is changed to larger, the response become quickly, but there is a possibility that
stability is lost.
Key operation
No
(1) Deactivate the key lock if necessary (see page 22).
(2) Press S-key for 2 seconds or more, then go to detail setting mode.
(3) To "F01" by using the △ and ▽ keys.
(4) Press S-key.
(5) Set the GAIN by using the △ and ▽ keys.
(6) Press S-key.
Press S-key for 2 seconds or more, then go out from detail setting mode.
(7)
(Select the menu with △ or ▽ keys, then jump to another item.)
(8) Activate the key lock if necessary (see page 22).
Relation between setting of gain and response time
Response Slow
Setting of
GAIN
* Default:
to
- 27 -
LED Display
⇔
(displayed alternately)
(blink and change the rightest digit)
⇔
(displayed alternately)
Quick
