F_1=0x0665（40%）
50%
The set pressure output 50% when the process date input 50%
120%
F_1=0x0666（40%）
100%
F_1=0x0665(40%)
80%
60%
60%
40%
20%
0%
0% 20%
The set pressure output 45% when the process date input 50%
F_2=0x0999（60%）
50%
Process data(Input)
45%
50%
40% 60%
Process data(Input)

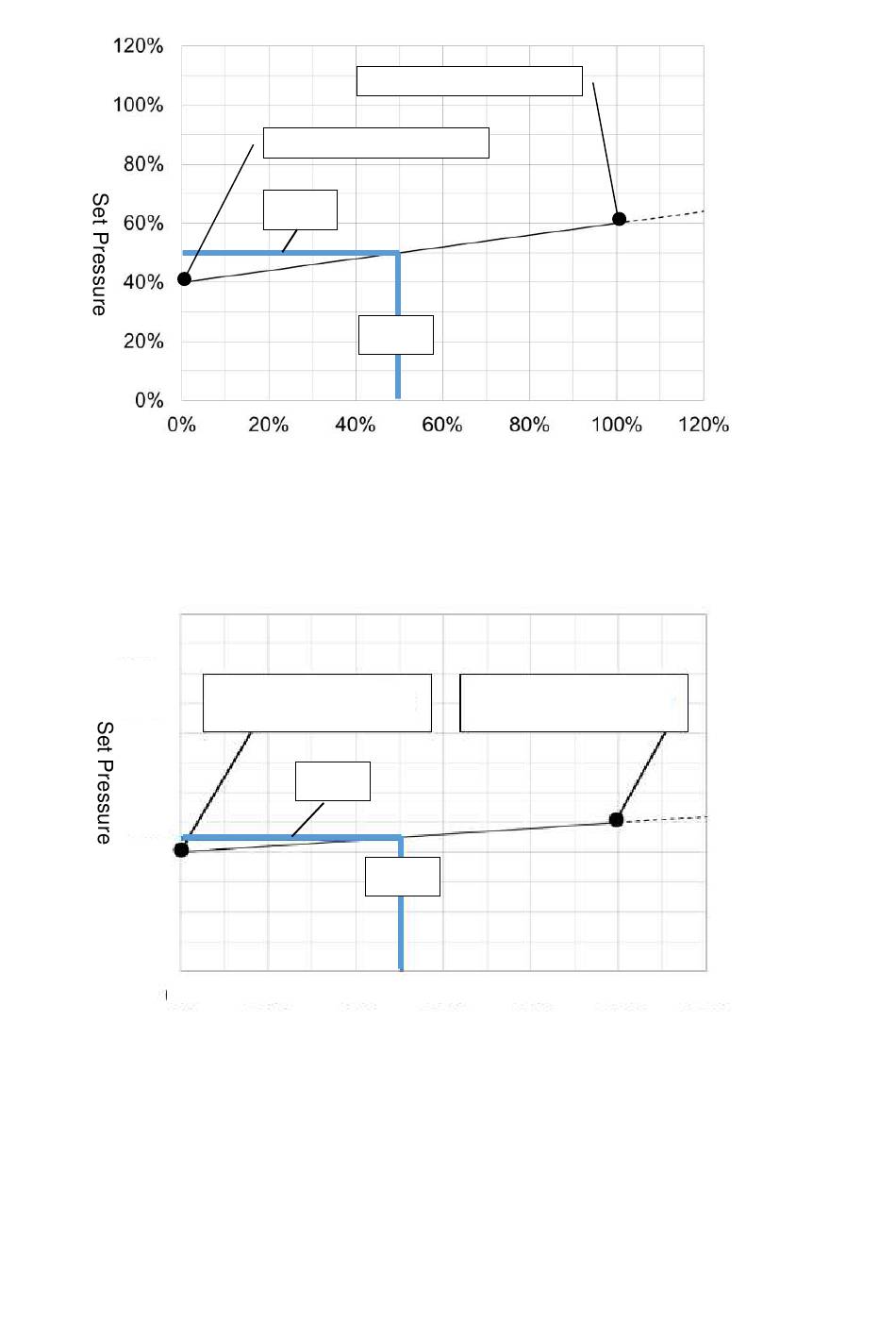

Fig.3 F_1 and F_2 usage example
