Wiring method and LED indication
① Proceed carefully, as incorrect wiring can cause damage.
② Use a DC power supply with sufficient capacity and a low ripple.
Example: Class 2 voltage source. UL1310 compliant.
③ Turn off the power supply to remove and insert the connector.
④ Never rotate the right angled type connector as it is not designed to rotate.
⑤ Attached bus adaptor is a part of the product. Please use it putting it on the
connector for the communication.
⑥ For communication master (PLC), we recommend using a product for CC-Link
communication with SELV circuit which is compliant to IEC 60950-1, electrical
safety standard.
⑦ The communications cable recommends the use of our company
PCA-1567720 (IN side) and PCA-1567717 (OUT side).
The line color is when the optional cable is used.
■Connection to external equipment

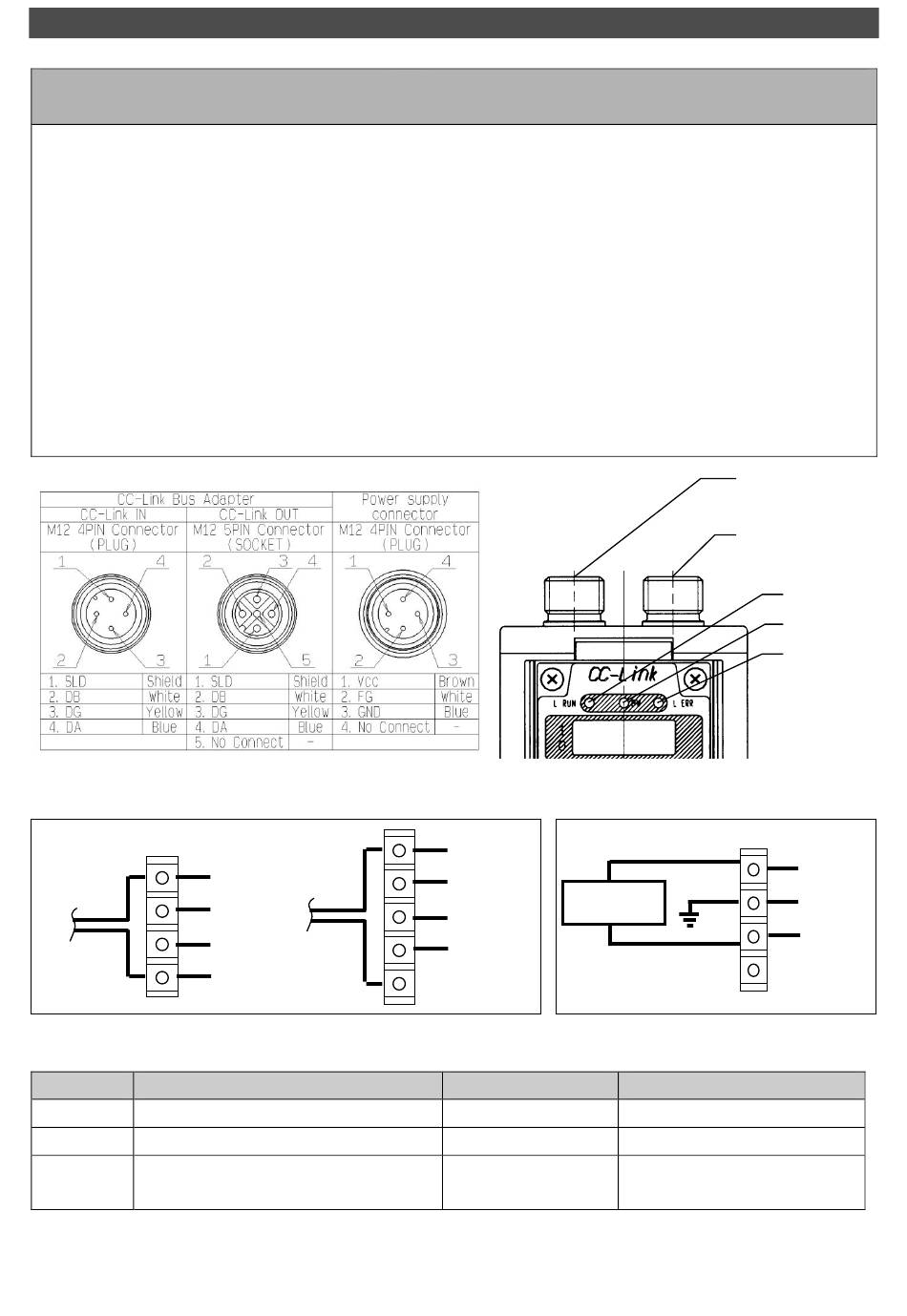

Communication wiring diagram
CC-Link
In
■ LED indication
Item
Power
L RUN
L ERR Communication error(Red)
Switch setting error(Red)
△
1:SLD
2:DB
3:DG
CC-Link
OUT
4:DA
Turning ON
Power ON
Normal(Red)
CAUTION
！
Power supply wiring diagram
1:SLD
2:DB
3:DG
4:DA
5:N.C.
Turning OFF
Power OFF
Abnormal
Normal
- 6 -
○
＋
Power
DC24V
○
－
Blinking
―
―
The switch setting has
changed at online.
Connector for
Communication
Connector for
Power supply
L RUN LED
PW LED
L ERR LED
1:+24V
2:F.G.
3:GND
4:N.C.
