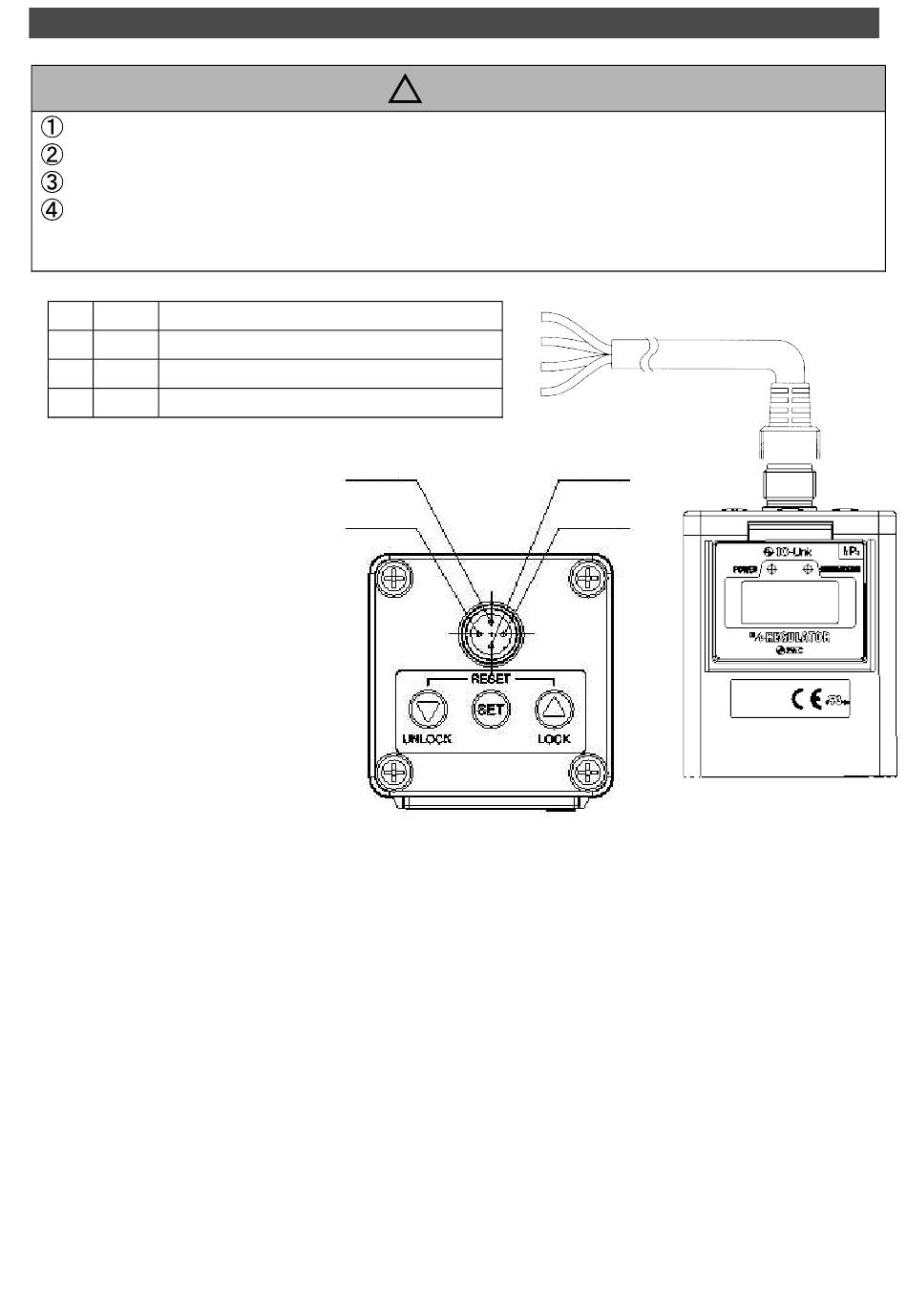

Wiring method
Proceed carefully, as incorrect wiring can cause damage.
Use DC power supply with sufficient capacity and a low ripple.
Turn off the power supply to remove and insert the connector.
Never turn the right angled type connector as it is not designed to turn.
1
Brown
2 White
3 Blue
4
Black IO-Link communication data (C/Q)
Note) The wire color is for
when optional
cable is used.
Caution
!
Power supply(L+)
No Connect
GND (L-)
3:Blue
4:Black
1:Brown
2:White
