Wiring method [Monitor output]
When the monitor output is not being used, prevent it from touching the other wires as this
can cause a malfunction.

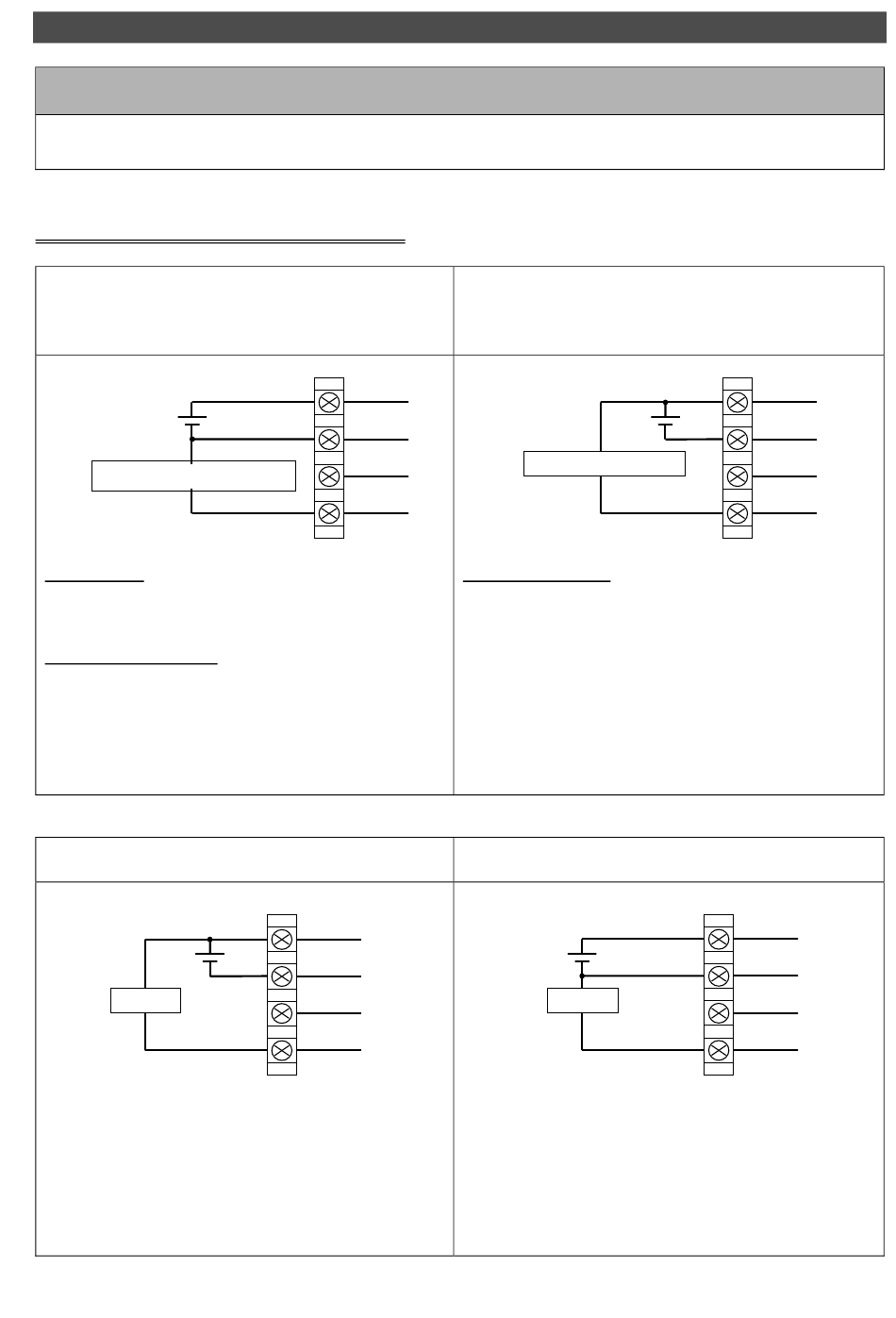

Wiring diagram (Monitor output)
Analogue output・Voltage type
(ITV****-*1)
Analogue output・Current (Source) type
(ITV****-*5)
○
-
Monitor output voltage/Current
○
+
Voltage type
Only use equipment with a minimum load
impedance of 100kΩ.
Current (Source) type
Please use the load impedance of the instrument
to be connected within the following range.
50~600Ω (ITV***0 24VDC)
50~300Ω (ITV***1 12 to 15VDC)
Switch output・NPN type
(ITV****-*2)
Load
When a current of approx.150mADC or more is
applied, the over current circuit is archived, "Er.5"
is displayed and the operation stops.
Please use with installing the load that the output
current becomes to 80mADC or less.
Caution
!
1 :
Brown
3 :
Blue
2 :
White
4 :
Black
Current (sink) type
Only use equipment with a maximum load
impedance of 250Ω.
1 :
Brown
3 :
Blue
2 :
White
4 :
Black
When a current of approx.150mADC or more is
applied, the over current circuit is archived, "Er.5" is
displayed and the operation stops.
Please use with installing the load that the output
current becomes to 80mADC or less.
- 6 -
Analogue output・Current (sink) type
(ITV****-*4)
○
+
Monitor output current
○
-
Switch output・PNP type
(ITV****-*3)
Load
1 :
Brown
3 :
Blue
2 :
White
4 :
Black
1 :
Brown
3 :
Blue
2 :
White
4 :
Black
