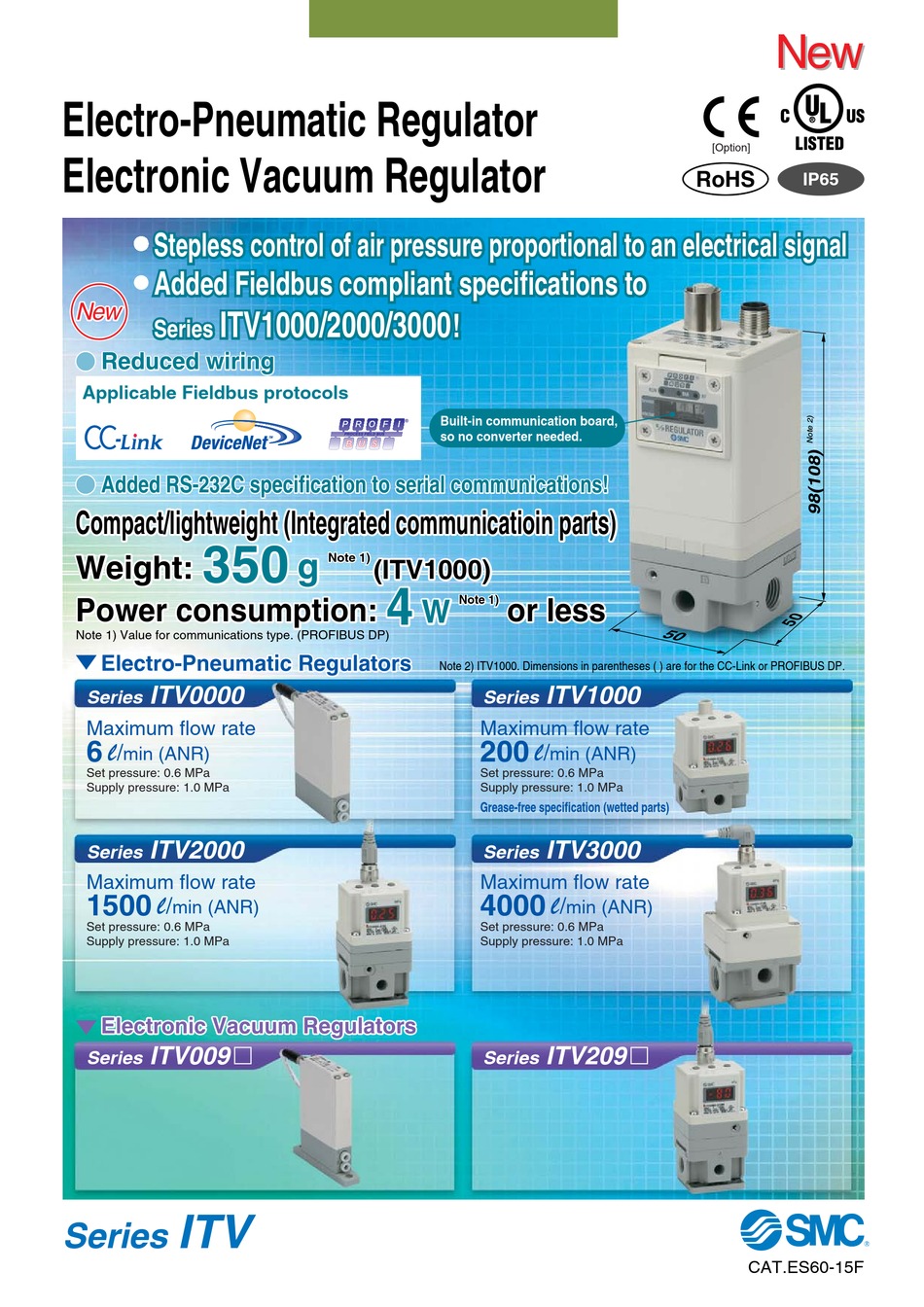

Electro-Pneumatic Regulator
Electronic Vacuum Regulator
Stepless control of air pressure proportional to an electrical signal
Stepless control of air pressure proportional to an electrical signal
Added Fieldbus compliant specifications to
New
ITV1000/2000/3000
Series
Reduced wiring
Applicable Fieldbus protocols
Added RS-232C specification to serial communications!
Added RS-232C specification to serial communications!
Compact/lightweight (Integrated communicatioin parts)
Compact/lightweight (Integrated communicatioin parts)
350
Weight:
Power consumption:
Note 1) Value for communications type. (PROFIBUS DP)
Electro-Pneumatic Regulators

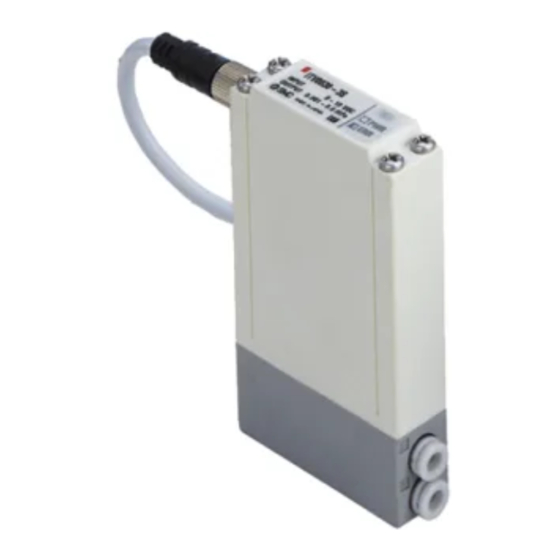

ITV0000
Series
Maximum flow rate
6
l
/
min (ANR)
Set pressure: 0.6 MPa
Supply pressure: 1.0 MPa
ITV2000
Series
Maximum flow rate
1500
l
/
min (ANR)
Set pressure: 0.6 MPa
Supply pressure: 1.0 MPa
Electronic Vacuum Regulators
ITV009
Series
ITV
Series
!
Built-in communication board,
so no converter needed.
g
Note 1)
(ITV1000)
4
Note 1)
Note 1)
W
Note 2) ITV1000. Dimensions in parentheses ( ) are for the CC-Link or PROFIBUS DP.
or less
ITV1000
Series
Maximum flow rate
200
l
/
min (ANR)
Set pressure: 0.6 MPa
Supply pressure: 1.0 MPa
Grease-free specification (wetted parts)
ITV3000
Series
Maximum flow rate
4000
l
/
min (ANR)
Set pressure: 0.6 MPa
Supply pressure: 1.0 MPa
ITV209
Series
New
New
[Option]
RoHS
IP65
CAT.ES60-15F
