4.1 Pre-installation

4.1.2 Foundation requirements

Requirements
• The foundation must weigh not less than three times the combined weight of the pump, driver,
baseplate and auxiliaries.
• Provide a flat, substantial concrete foundation in order to prevent strain and distortion when you
tighten the foundation bolts.

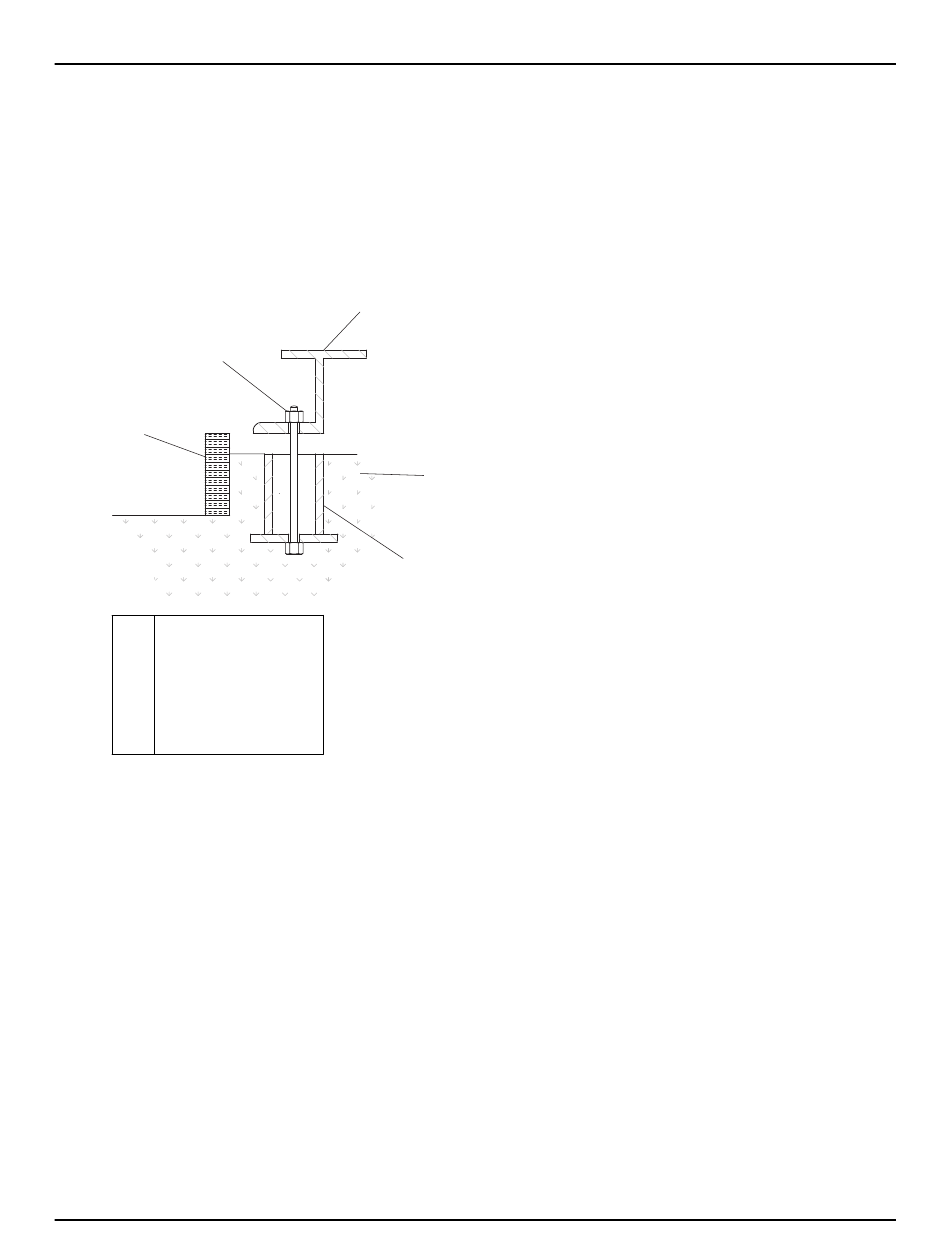

Sleeve-type bolts
5
4
Item Description
1. Baseplate
2. Foundation
3. Sleeve
4. Dam
5. Bolt
Figure 7: Sleeve type bolts
20 3610 i-FRAME API 610 11th Ed/ISO 13709 2nd Ed, API Type BB1 Single-Stage, Axially-Split, Between-Bearing IOM
1
2
3
