Nameplate types
Nameplate
Pump casing
Pump
ATEX

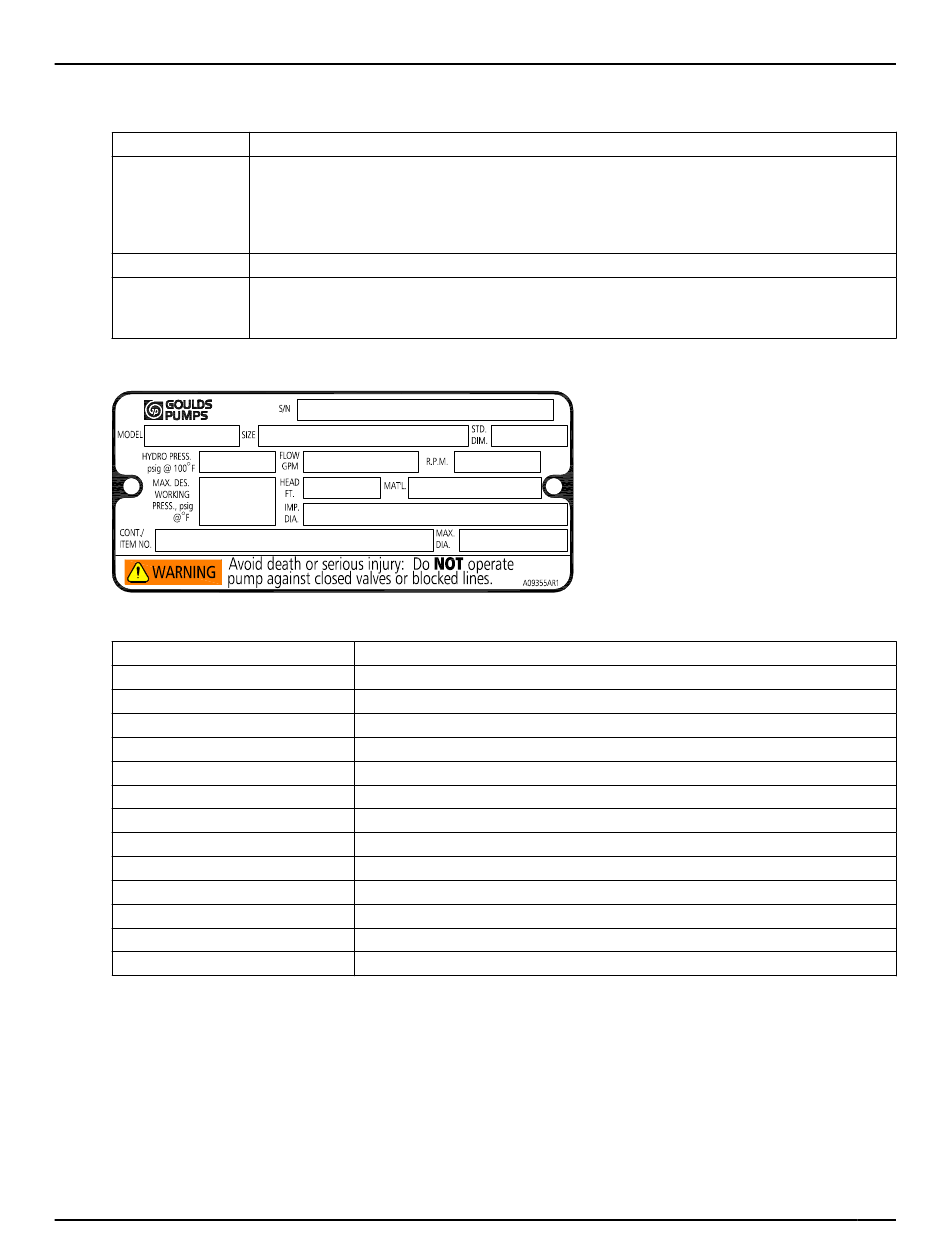

Nameplate on the pump casing using English units
Figure 4: Nameplate on the pump casing using English units
Nameplate field
MODEL
SIZE
FLOW
HEAD
RPM
HYDRO PRESS
MAX. DES. WORKING PRESS
S/N
CONT./ITEM NO.
IMP. DIA.
MAX. DIA.
STD. DIM.
MAT'L
3610 i-FRAME API 610 11th Ed/ISO 13709 2nd Ed, API Type BB1 Single-Stage, Axially-Split, Between-Bearing IOM
Description
Provides information about the hydraulic characteristics of the pump.
The formula for the pump size is: Discharge x Suction - Nominal Maximum Impeller Diameter in
inches.
(Example: 2x3-8)
Provides information about the lubrication system used.
If applicable, your pump unit might have an ATEX nameplate affixed to the pump, the base-
plate, or the discharge head. The nameplate provides information about the ATEX specifica-
tions of this pump.
Explanation
Pump model
Size of the pump
Rated pump flow, in gallons per minute
Rated pump head, in feet
Rated pump speed, in revolutions per minute
Hydrostatic pressure at 100°F, in pounds per square inch
Maximum working pressure at temperature °F, in pounds per square inch
Serial number of the pump
Customer contract or item number
Rated impeller diameter, inches
Maximum impeller diameter, inches
Standard ANSI dimensional code
Material of construction
3.3 Nameplate information
17
