5.5 Bearing lubrication
1.
Fill the oil reservoir in the bearing frame:
a)
Fill the bearing chamber through the main body of the Watchdog until it reaches the optimum
fluid level visible in the bullseye sight.
b)
Fill the watchdog reservoir using a funnel.
c)
Verify o-ring is on the Watchdog oiler spout.
d)
Place your thumb over the reservoir spout. Invert and insert the spout into the internal threaded
boss on the main body.
e)
Tighten reservoir. Do not over-tighten.
f)
Verify that proper oil level is maintained per the following diagram.
NOTICE:
Do not fill the oil reservoir of the bearing frame through the plug at the top.
2.
Check that the oil level is correct. The correct oil level is centered in the bullseye sight glass, when
the pump is not in operation. During operation, bullseye sight gives a false oil level reading. Shown
is general schematic. Oil level is below outer race of bearing.
1 Shaft rotation - CCW
Item
1.
2.
3.

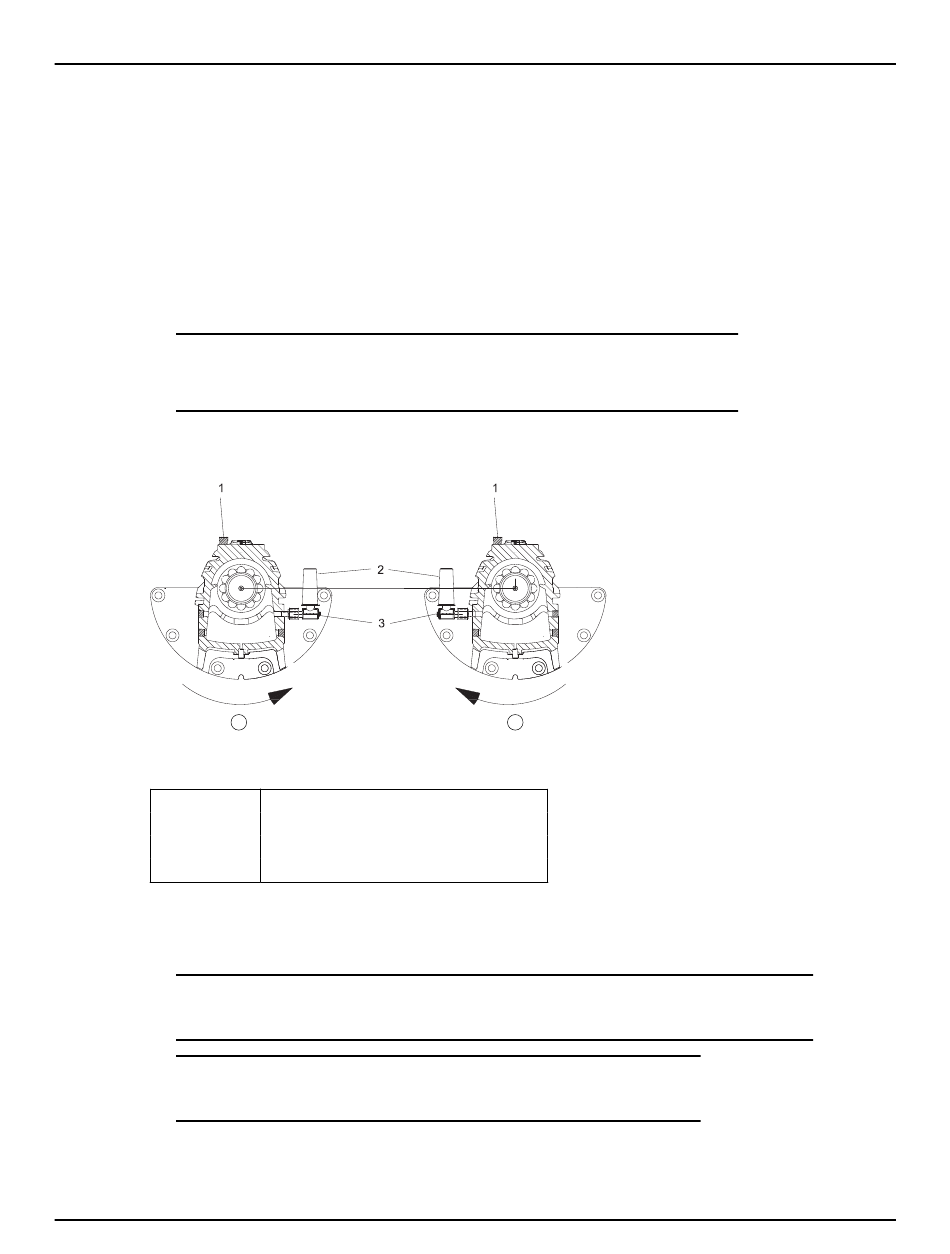

Figure 29: Correct oiler location based on pump rotation

5.5.6 Convert to oil-mist lubrication

NOTICE:
Make sure that pipe threads are clean and apply thread sealant to plugs and fittings.
NOTICE:
In both housings install bearing end cover (160) designed for oil mist.
You can convert from ring-oil lubrication to oil-mist lubrication in pumps with ball bearing construction.
The radialDrive End and Non Drive End bearing housings (134) have pre-drilled connections for oil mist:
1/4 in. NPT connection on the inboard side of each housing (133H)
50
3610 i-FRAME API 610 11th Ed/ISO 13709 2nd Ed, API Type BB1 Single-Stage, Axially-Split, Between-Bearing IOM
1
2 Shaft rotation - CW
Description
Plug
Reservoir
Main body
2
