1
Item Description
1.
Driver
2.
Annular groove

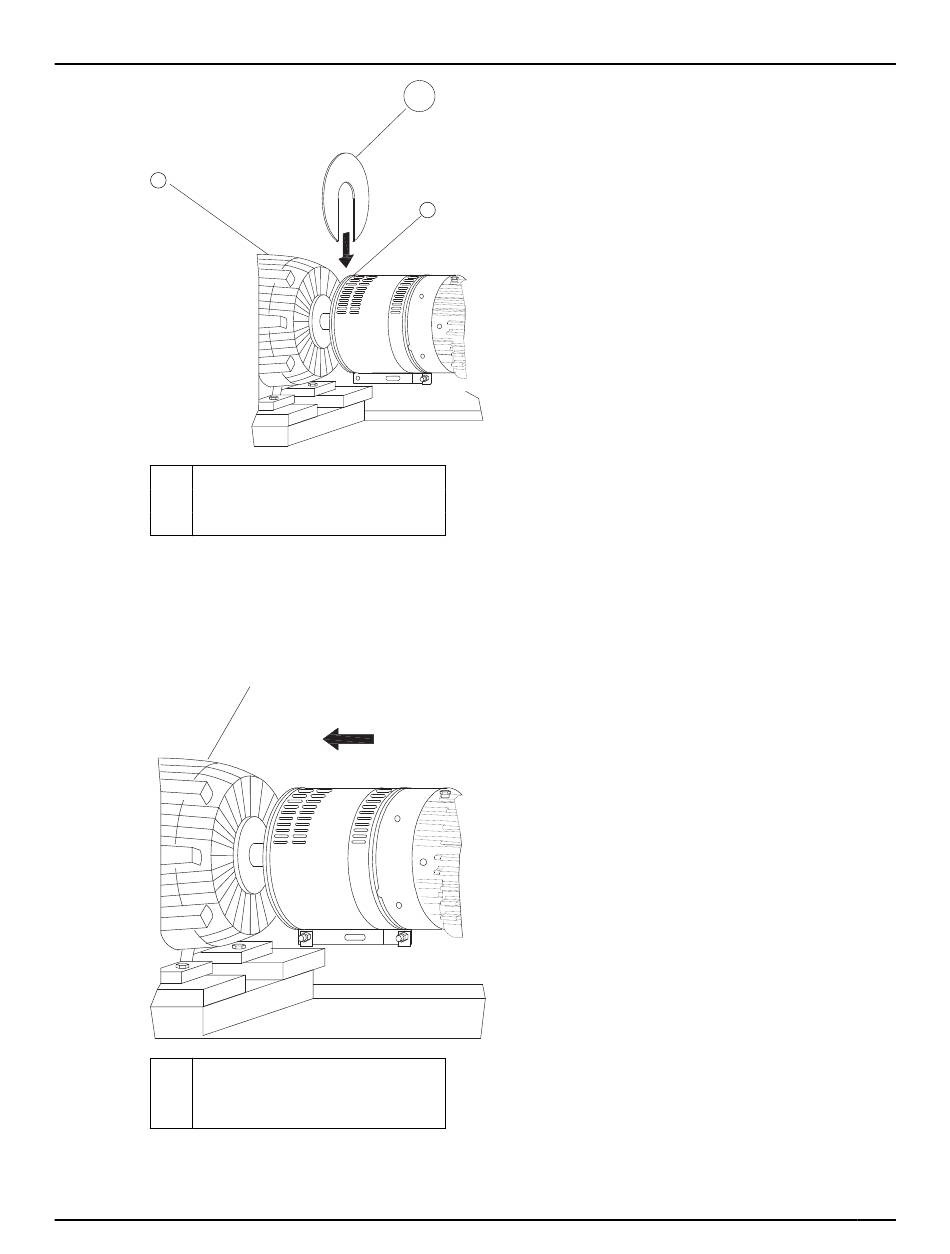

Figure 23: Align driver end guard half with annular groove in endplate
8.
Repeat Steps 3. through 5. for the rear end of the coupling guard half, except that you hand tighten
the bolt.
9.
Slide the rear coupling guard half towards the motor so that it completely covers the shafts and cou-
pling.
Item Description
1.
Driver
2.
Slide to fit
Figure 24: Slide to fit
10. Repeat Steps 3. through 5. for the center slots in the coupling guard.
11.
Firmly tighten all bolts (569E) on the guard assembly.
3610 i-FRAME API 610 11th Ed/ISO 13709 2nd Ed, API Type BB1 Single-Stage, Axially-Split, Between-Bearing IOM
234B
2
1
2
5.4 Couple the pump and driver
