d) Remove the outboard end cover (160) bolts (371D).
e) Align the pump cover (234A) to the outboard end cover (160) so the holes in the pump cover
align with the holes in the outboard end cover.
f) Replace the four outboard end cover bolts (371D) and torque to the value shown in the Assem-
bly referencesThis section contains reference information for reassembly procedures..
g) Align the end plate to the thrust bearing end cover so that the holes in the end plate align with
the holes in the end cover.
h) Replace the coupling hub (if removed) and the spacer portion of the coupling.
Refer to the instructions from the coupling manufacturer for assistance.
Complete any coupling adjustments before you proceed with the coupling guard assembly.
2. Slightly spread the opening of the coupling guard half (501B) and place it over the pump end plate
(234A).
The annular groove in the guard is located around the end plate.
Position the opening (flange) so that it does not interfere with the piping but still allows for access
when you install the bolts.
501B
1
Item Description
1. Driver
2. Annular groove
3. Pump endplate

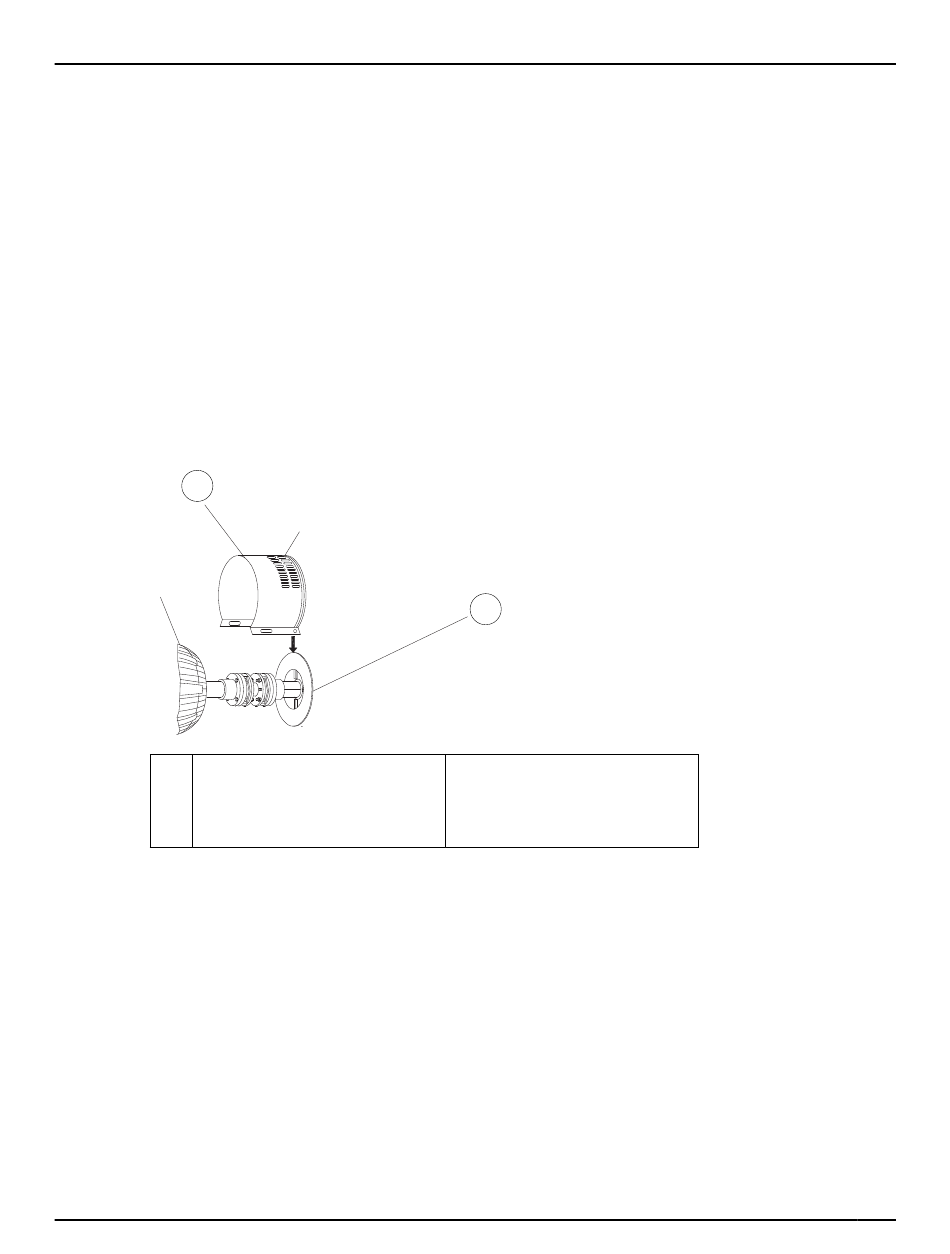

Figure 20: Align pump end guard half with annular groove
3. Place one washer (534A) over the bolt (569E) and insert the bolt through the round hole at the front
end of the guard half.
