Prepare For Disassembly - ITT 3610 i-FRAME Manual

Table of Contents

Advertisement

Drill
Feeler gauges
Hex wrenches
Induction heater
Lifting sling
Micrometers (inside and outside)
Open end wrenches
Press
Soft face hammer
Spanner wrench
Spanning type puller
Tap
Torque wrench with sockets
Lifting eyebolt (dependent on pump / motor size)

6.4.3 Prepare for disassembly

NOTICE:
Use insulated gloves to handle coupling hub. Coupling hub will get hot and can cause physical
injury.
1.
Close the isolation valves on the suction and discharge sides of the pump.
2.
Drain the liquid from the piping; flush the pump if necessary.
3.
Disconnect all auxiliary piping, tubing, and equipment that will interfere with the removal of the head
and the rotor.
4.
Remove the oil drain plugs (408A) from the bottom of the bearing housings (134, 134A) and drain
the oil.
Dispose of the oil in accordance with applicable regulations.
234B

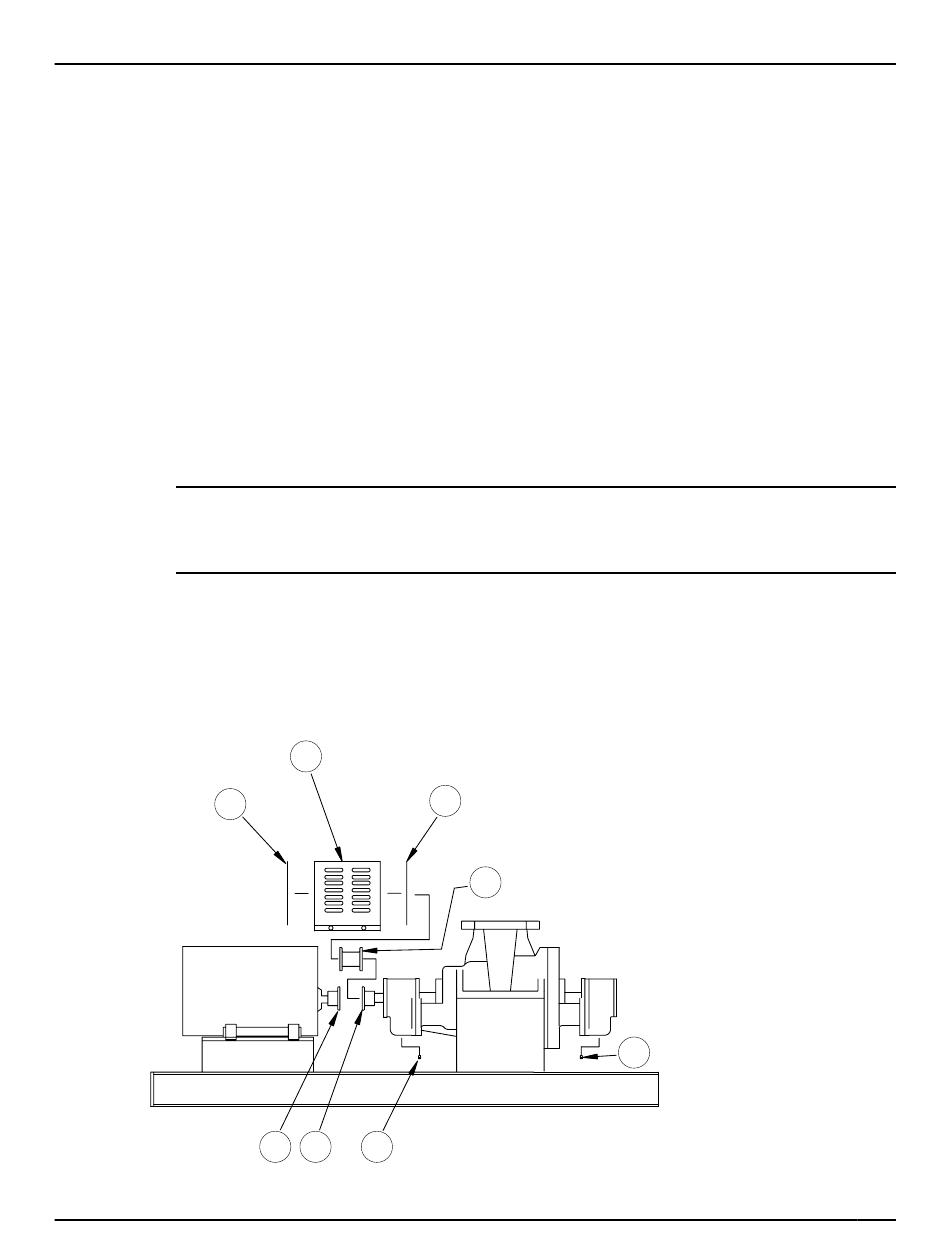

Figure 40: Coupling guard disassembly
3610 i-FRAME API 610 11th Ed/ISO 13709 2nd Ed, API Type BB1 Single-Stage, Axially-Split, Between-Bearing IOM
501B
234A
232
233
408A
235B
408A
