5.4 Couple the pump and driver
Parts required
Part No.
Description
569E
Hex head bolt (Qty 3)
501B
Guard (Qty 2)
234A
Cover pump
570E
U-nut (Qty 3)

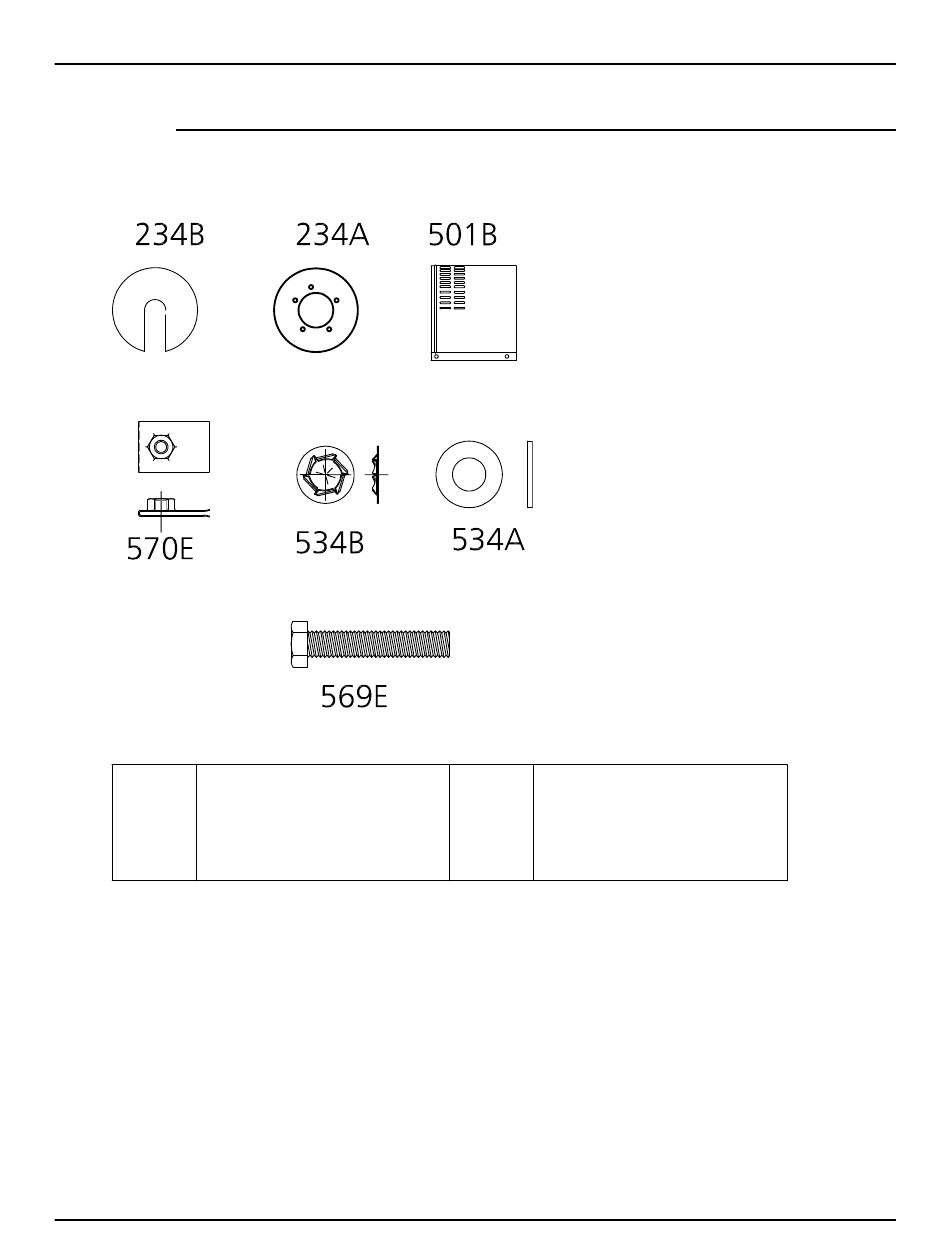

Figure 19: Coupling guard required parts
5.4.1.1 Install the coupling guard
1.
Is the pump cover (234A) already installed?
If yes: Make any necessary coupling adjustments and then proceed to Step 2..
If no: Complete these steps:
a)
Remove the spacer portion of the coupling.
Refer to the instructions from the coupling manufacturer for assistance.
b)
If the coupling hub diameter is larger than the diameter of the opening in the end plate, then
remove the coupling hub.
c)
Remove the thrust bearing end-cover screws.
42
3610 i-FRAME API 610 11th Ed/ISO 13709 2nd Ed, API Type BB1 Single-Stage, Axially-Split, Between-Bearing IOM
Refer to driver/coupling/gear manufacturer's installation and operation manuals
(IOM) for specific instructions and recommendations.
Part No.
Description
534A
Washer (Qty 4)
534B
Retainer (Qty 3)
234B
Cover driver
