6.6 Reassembly
h) When you have achieved the proper bearing assembly, set the lockwasher tab in the slot in the
locknut.
361A

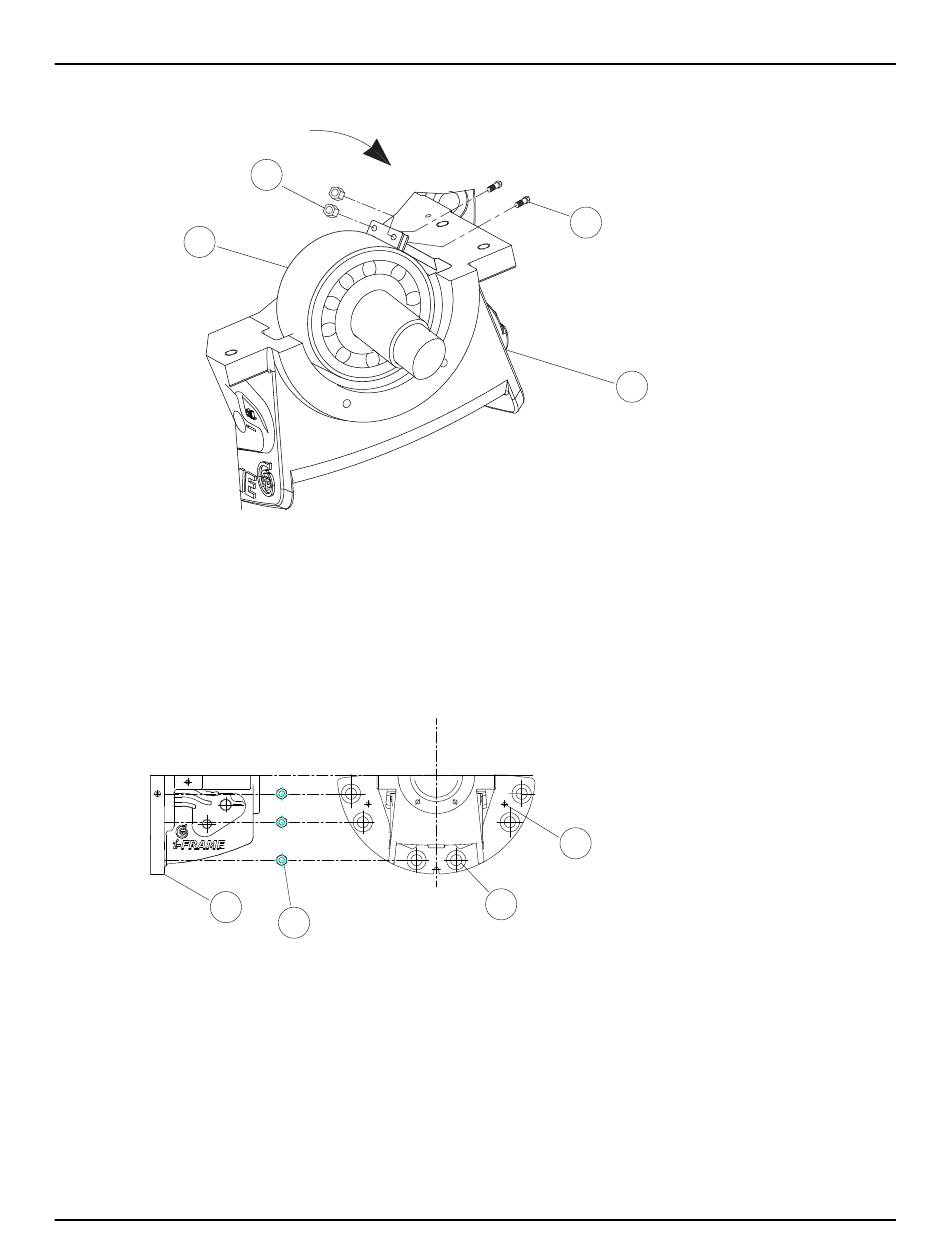

Figure 78: Installation of bearing retainer
7. Install the thrust bearing retainer (361A). Secure the retainer with the screws (469Y) and nuts
(813F). Position the retainer tab into the lower bearing frame (134A) slot.
8. Lift the lower half of the bearing housing (134A) into place, positioning the sleeve bearing oil ring
(114) in the bearing housing groove.
9. Install head-to-bearing housing studs (371T).
10. Place the installed inboard labyrinth seal (333A) in the lower housing.
11. Finger tighten the lower housing to the head-bearing flange with the head-to-bearing housing studs
(371T) and nuts (427J).
134A
Figure 79: Assemble the thrust bearing housing lower half
12. Install the sleeve bearing (117):
a) Apply Lucas Heavy Duty Oil Stabilizer, or equivalent lubricant to the lower half of the sleeve
bearing. Place the lower half of the sleeve bearing (117) onto the shaft (122) and slide it around
the shaft into the lower bearing housing, moving the oil ring accordingly.
b) Tighten the nuts (427J) on the bearing housing to the casing studs (371T).
c) Apply Lucas Heavy Duty Oil Stabilizer, or equivalent lubricant to the upper half of the sleeve
bearing. Place the upper half of the sleeve bearing (117) on the shaft, moving the oil ring (114)
aside. When the bearing top half is in place, move the oil ring back into the bearing housing
and sleeve groove.
