Mounting The Monitors - StarTech.com ARMSLIMDUAL2USB3 User Manual

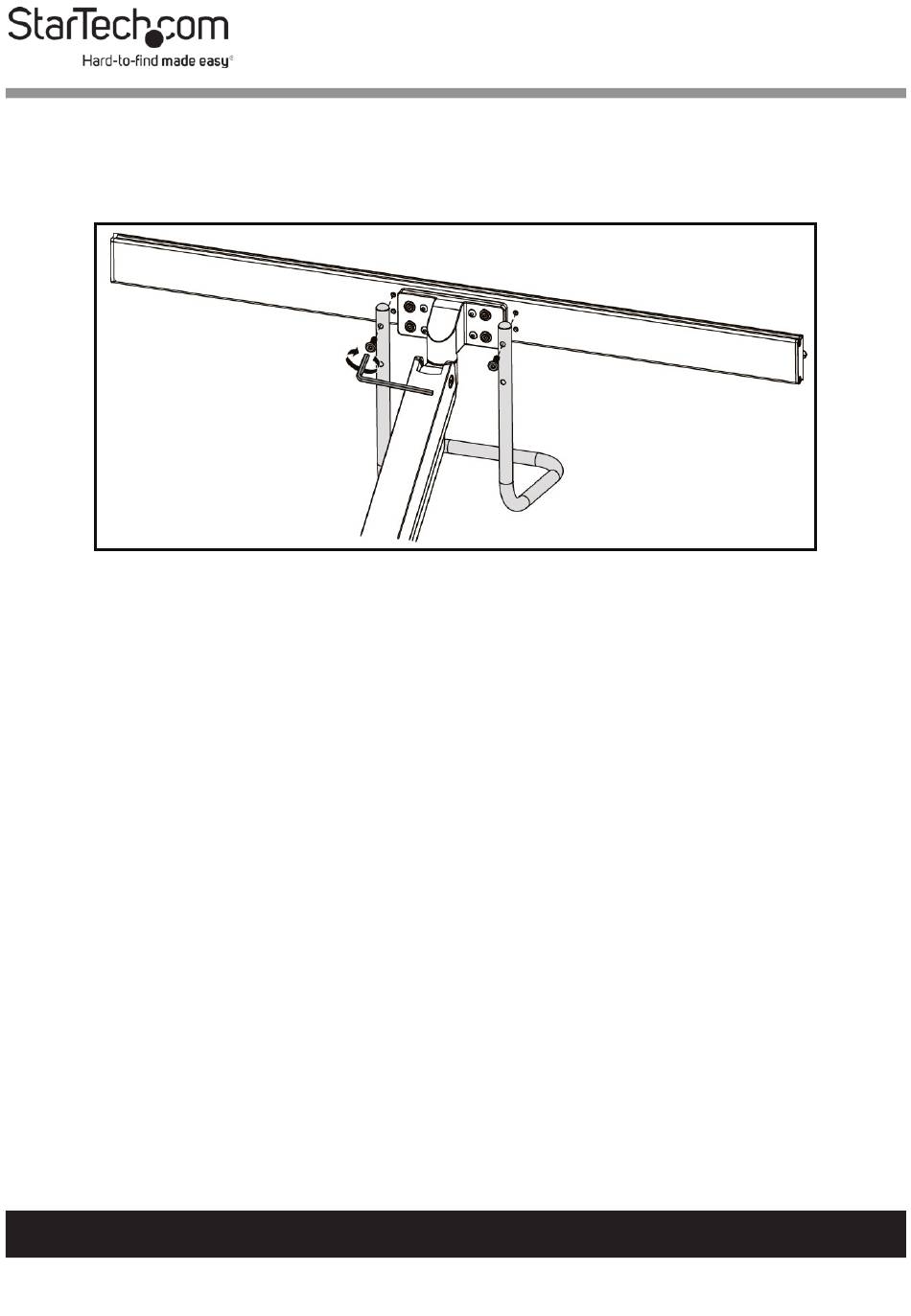

Using the 4 mm Hex Key, tighten the two Flat Head Hex
22.
Screws, being careful not to over-tighten.

Mounting the Monitors

Place the Monitor screen side down on a flat, clean surface.
1.
(Optional) Remove any Screws or Place Holders from the
2.
VESA Mounting Holes on the back of the Monitor.
Note: Be careful not to remove any of the Screws holding
the Monitor's Casing together.
Align the Screw Holes on the VESA Mount with the VESA
3.
Mounting Holes on the back of the Monitor. The VESA
Mount can support 75 x 75 or 100 x 100 mounting pattern.
Note: When attached, the Notch on the VESA Mount
should be along the bottom edge of the Monitors.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
Installing the Grab Handle
