- Page 1 Horizontal Dual-Monitor Stand - Silver Actual product may vary from photos User Manual SKU#: ARMDUOSS For the latest information and specifications visit www.startech.com/ARMDUOSS Manual Revision: 03/29/2019...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 3: Safety Statements
• Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 4: Warning Statements
Personen oder Schäden an Geräten führen. Dieses Produkt ist für folgendes Gewicht geeignet: 8 kg per monitor. • Das Produkt darf nicht bedient werden, wenn Teile fehlen oder beschädigt sind. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 5 Dit product ondersteunt het volgende gewicht: 8 kg per monitor. • Gebruik dit product nooit als er onderdelen ontbreken of beschadigd zijn. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 6 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 取り扱いを誤 った場合に、 傷害を負う恐れや物的損害が発生する恐れがあります。 • 取り付けるモニターの重量が、 本製品で定められた最大積載重量を超えな いようにして下さい。 最大積載重量をオーバーした場合、 傷害を負う恐れや モニターや本製品に損害が発生する恐れがあります。 本製品は、 モニター1 台あたり10kgまで支持できます。 • 本製品で使用している部品の一部が紛失していたり損傷している状態で使 用するのは絶対に止めて下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 7: Table Of Contents
Attach the Monitors ..........................8 Adjusting the Monitors .................10 Tilt Adjustment ............................10 Swivel Adjustment ............................ 11 Adjusting the VESA Mount ........................11 Route the Cables ............................12 Warranty Information ................14 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Diagram

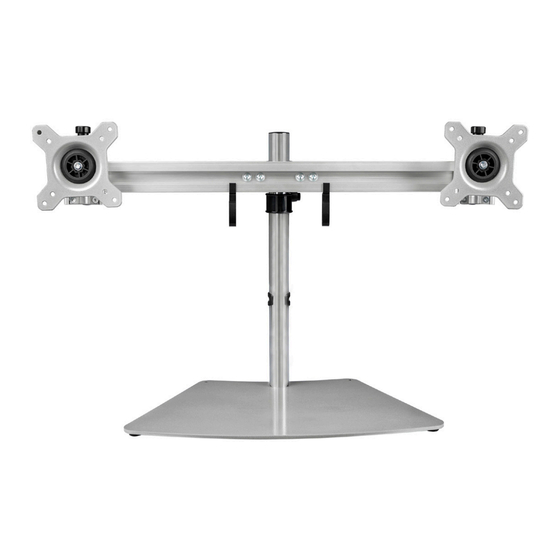

Product Diagram Front View VESA Monitor Mount Cable-Management Clip (Crossbar) Pole Baseplate To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Rear View
Rear View Pole Cap Crossbar Height-Adjustment Ring Cable-Management Clip (Pole) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 10 Side View Height-Adjustment Screw End Cap Plate Thumbscrew To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 11: Product Information
Product Information Package Contents Cable- Pole Baseplate M6x15 mm Management Screws Clip (Pole) Qty: One Qty: One Qty: Three Qty: One Height- VESA Monitor Adjustment Pole Cap Crossbar Mounts Ring Qty: One Qty: One Qty: Two Qty: One M4x12 mm M4x30 mm Plastic Spacers M3 Hex key... -
Page 12: Assembly
Use the M4 Hex Key and turn the M6x15 mm Screws clockwise to tighten. Figure 1 Pole Baseplate M6x15 mm Screw M4 Hex Key To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Attach The Crossbar
Push the Pole Cap down into the top of the Pole (Figure 2). Use the M3 Hex Key and turn the Set Screws in the Crossbar clockwise to tighten it and prevent it from moving (Figure 3). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 14 Figure 3 Crossbar Set Screw Height-Adjustment Ring M3 Hex To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Attach The Monitors
Warning! ARMDUOSS is designed to display two Monitors between 15 and 24 inches in size. The maximum weight capacity of ARMDUOSS is a total of 35.2 lb. (16 kg), with each Monitor Mount able to hold 17.6 lb. (8 kg). - Page 16 Monitors. Slide each of the VESA Monitor Mounts into the Plates on the Crossbar. Warning! Lifting and moving ARMDUOSS is a two-person job. Do not attempt to complete this task by yourself. Tipping hazard! ARMDUOSS is free-standing and when you attach Monitors to it, you increase the tipping hazard.
-
Page 17: Adjusting The Monitors
Place both of your hands on either side of the Monitor and apply light pressure either downward or upward. The Monitor will tilt to a maximum of 15 degrees in either direction (Figure 9). Figure 9 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 18: Swivel Adjustment
Swivel Adjustment The Monitors can be adjusted on a 360-degree swivel. • Place both of your hands on either side of the Monitor and apply light pressure either left or right. The Monitor will swivel 360 degrees. Adjusting the VESA Mount If the Monitors are not staying in place, the Hex Screw on the back of the VESA Monitor Mount will need to be tightened. -
Page 19: Route The Cables
Figure 10 Route the Cables ARMDUOSS comes with Cable-Management Clips that you can use to direct the Monitor Cables along the Crossbar and down the Pole so that they are out of your way. Note: Make sure that the Cables you are routing are unplugged before you complete the following steps. - Page 20 Cables and onto the Pole. You can place the Cable-Management Clip (Pole) on the front or back of the Pole, depending on your preference or setup. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 21: Warranty Information
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 22 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
