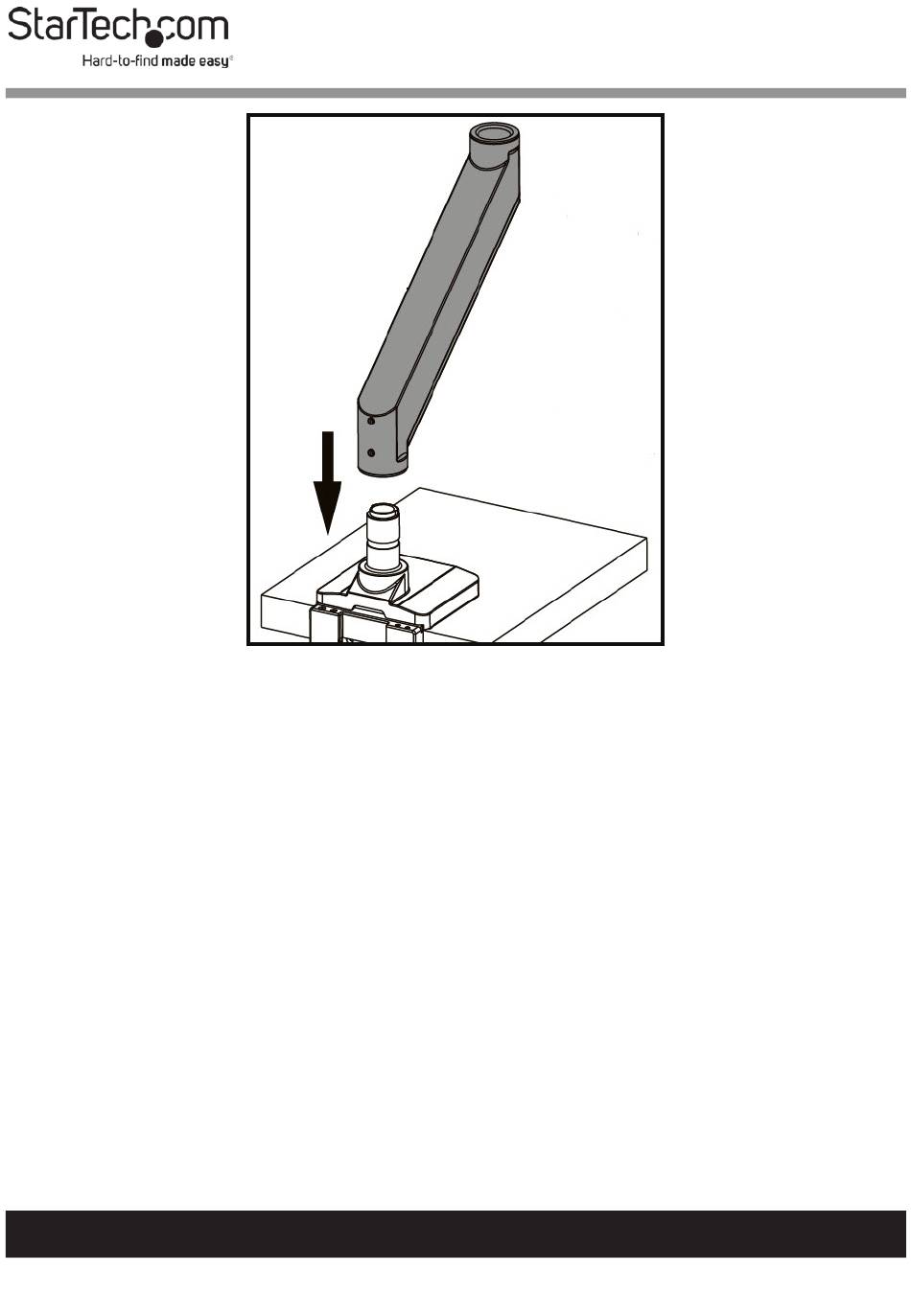

Installing the Lower Arm onto the Base
Use the Flat Head Screwdriver End on the 3 mm Hex Key
12.
to tighten the Screws on the Lower Arm. Tighten only the
bottom Screw to allow the arm to rotate + or - 180
. Tighten
0
both Screws to allow the arm to rotate + or - 90
.
0
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
35
