Align the bottom of the Lower Arm with the Mounting Peg
16.
on the Base.
Insert the bottom of the Lower Arm onto the Mounting
17.
Peg.
Use the Flat Head Screwdriver End on the 3 mm Hex Key
18.
to tighten the Screws on the Lower Arm. Tighten only the
bottom Screw to allow the arm to rotate + or - 180
both Screws to allow the arm to rotate + or - 90
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

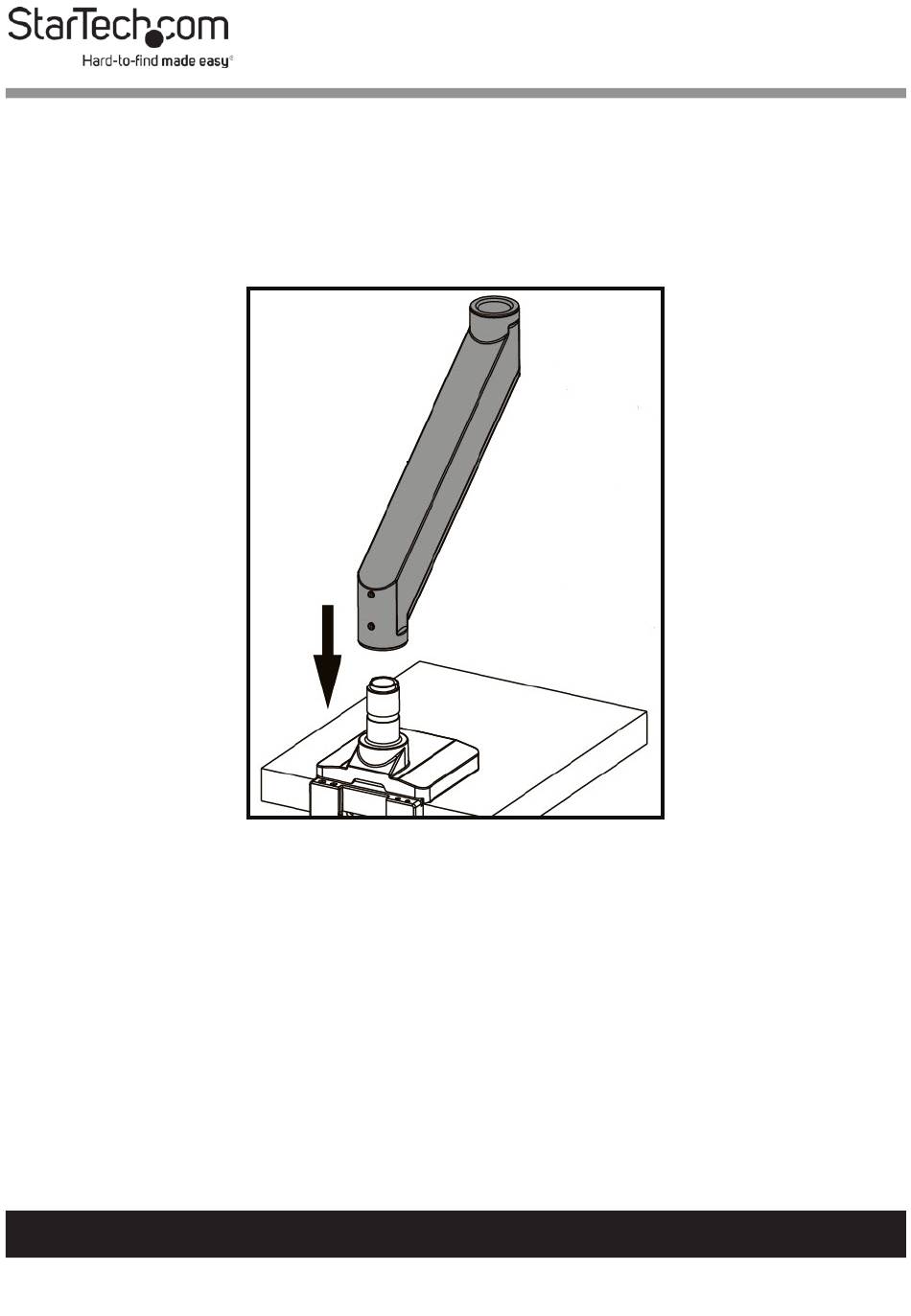

Installing the Lower Arm onto the Base
