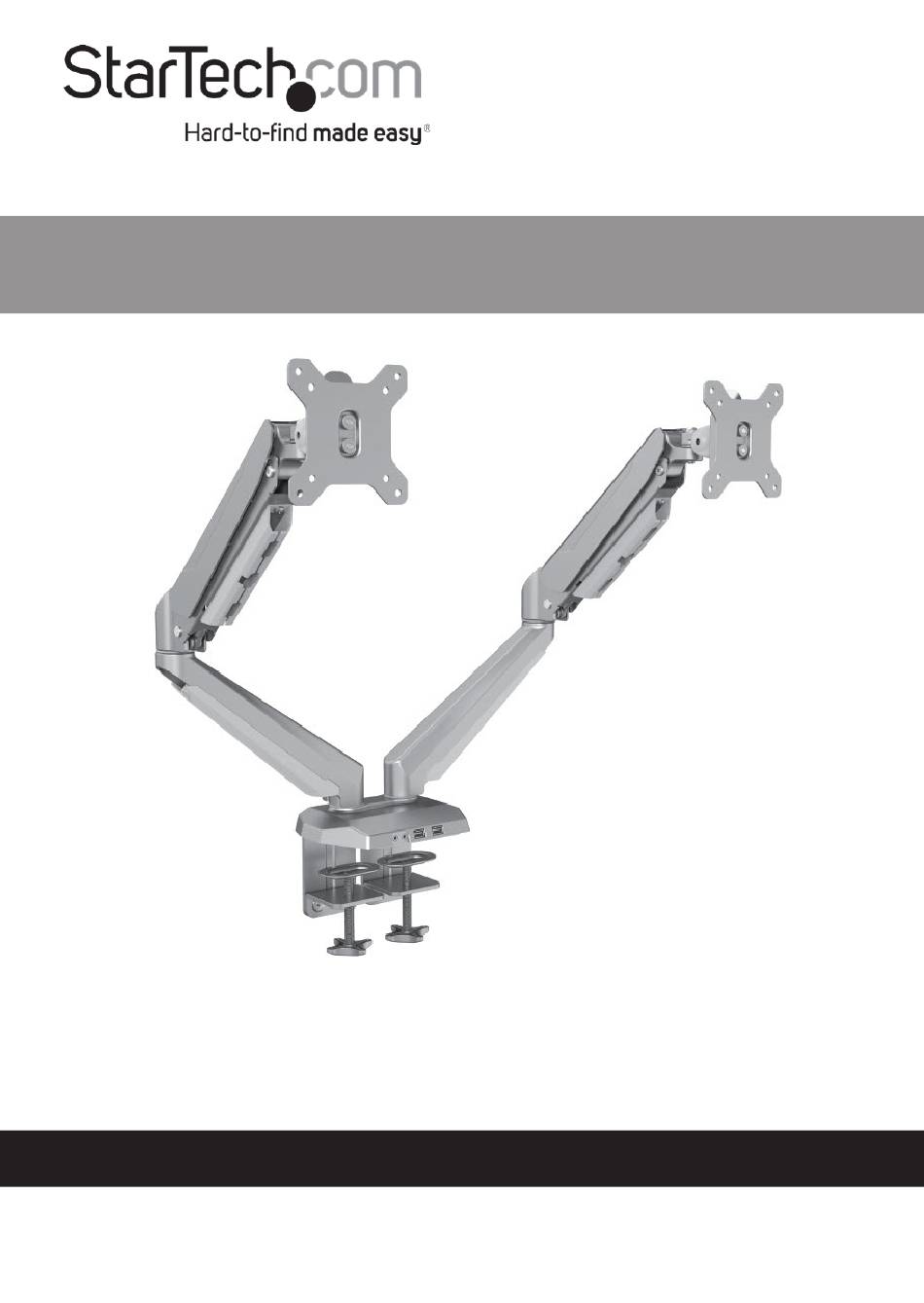

- Page 1 Dual Monitor Mount with Built-in 2-port USB Pass-Through | Silver Actual product may vary from photos User Manual SKU#: ARMSLIMDUOS For the latest information and specifications visit www.startech.com/ARMSLIMDUOS Manual Revision: 12/18/2019...
- Page 2 This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual...
-
Page 3: Warning Statements
• Ne dépassez pas la capacité pondérale du produit. Une surcharge du produit peut entraîner des blessures ou des dommages matériels. Ce produit peut supporter (2 x 8 kg). • Ce produit est uniquement destiné à une utilisation en intérieur et ne doit pas être utilisé à l’extérieur. Warnhinweise • Beachten Sie bei der Montage dieses Produkts die Montageanweisungen. • Überschreiten Sie nicht die Tragkraft dieses Produkts. Ein Überladen dieses Produkts kann zu Verletzungen oder zur Beschädigung des Produkts führen. Dieses Produkt ist für folgendes Gewicht geeignet: (2 x 8 kg). • Dieses Produkt ist nur zum Gebrauch in Innenräumen vorgesehen und sollte nicht im Freien verwendet werden. Dichiarazioni di avvertenza • Assicurarsi di Assemblare il prodotto secondo le istruzioni. • Non superare la capacità di carico del prodotto. Il sovraccarico del prodotto potrebbe causare danni o lesioni. Il prodotto è in grado di supportare i seguenti pesi: (2 x 8 kg). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 • El uso de este producto es solo para interiores y no debe utilizarse en exteriores. Waarschuwingen • Zorg dat u dit product volgens de instructies in elkaar zet. • Overschrijd de maximale capaciteit van dit product niet. Overbelasting van dit product kan letsel of materiële schade veroorzaken. Dit product ondersteunt het volgende gewicht: (2 x 8 kg). • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 • 本製品で定められた最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした 場合、 怪我をする恐れや器物破損の恐れがあります。 本製品は、 モニター1台あたり (2 x 8kg)まで 支持できます。 • 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 5: Safety Statements
Mesures de sécurité • Les câbles (y compris les câbles d’alimentation et de chargement) doivent être placés et acheminés de façon à éviter tout risque électrique, de chute ou de sécurité 安全対策 • ケーブル （電源ケーブルと充電ケーブルを含む） は、 適切な配置と引き回し を行い、 電気障害やつまづきの危険性など、 安全上のリスクを回避するよう にしてください。 Misure di sicurezza • I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza. Säkerhetsåtgärder • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Table Of Contents
Adjusting the Tilt ............................22 Adjusting the Swivel ..........................23 Routing the Cables .................25 Using the 3.0 USB Passthough Ports ...........27 Using the 3.5 mm Audio Port ...............28 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Diagram
Product Diagram VESA Holder Lower Arm Upper Spring Arm USB Ports and 3.5 mm Audio Ports Cable Cover C-Clamp Cable Clip To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Dimensions
Product Dimensions Note: The measurements displayed are maximum measure- ments and are in mm/inches, unless otherwised specified. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Information
Product Information Package Contents Arm Assembly Upper Clamps Qty: 1 Qty: 2 Lower Clamps VESA Mounts Qty: 2 Qty: 2 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 10 Rubber Pads M4 x 12 mm Screws Qty: 2 Qty: 8 M4 x 30 mm Screws Plastic Spacers Qty: 8 Qty: 8 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 11 4 mm Hex Key 5 mm Hex Key Qty: 1 Qty: 1 M6 x 12 mm Screws M8 x 12 Screws Qty: 8 Qty: 4 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 12: Product Specifications
75 x 75 100 x 100 VESA - 360 to + 360 Rotation - 90 to + 85 Tilt 17.6 lb (2 x 8 kg) Total Weight (two monitors) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 13: Requirement
Phillips Head Screwdriver x 1 • Displays 15” to 32” Displays x 2 • Optional USB Cables x 2 • USB Compatible Devices x 2 • 3.5 mm Headset • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 14: Assembling The Monitor Mount
Holes on the Upper Clamps and into the Screw Holes on the bottom of the Base. Using the 4 mm Hex Key, tighten the M6 x 12 mm Screws, being careful not to over-tighten. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 15 Upper Clamps covering the M6 x 12 mm Screws. Align the two Screw Holes on the Lower Clamps with two Screw Holes on the bottom of the Upper Clamps. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 16 Lower Clamps and into the Screw Holes in the Upper Clamps. Using the 5 mm Hex Key, tighten the M8 x 12 mm Screws, being careful not to over-tighten. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 17 From underneath the Mounting Surface, tighten the two Thumb Screws at the bottom of the C-Clamp Assembly. Tighten the Thumb Screws until the C-Clamp Plate is pressed tightly against the bottom of the Mounting Surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 18: Mounting The Monitors
Align the Screw Holes on the VESA Mount with the VESA Mounting Holes on the back of the Monitor. The VESA Mount can support 75 x 75 or 100 x 100 mounting pattern. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 19 (Optional) For recessed surface mounting, align the four Spacers with the VESA Mounting Holes on the back on the Monitor, prior to securing the VESA Mount to the Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 20 Note: It is recommended that two people mount the Moni- tors. Pull the VESA Clip on the VESA Holder back towards the Spring Arm. Pulling back the VESA Clip To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 21: Adjusting The Monitor Mount
Use the 5 mm Hex Key to rotate the Adjustment Screw located at the base of the Spring Arm, clockwise (decreasing tension) or counter clockwise (increasing tension). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 22 Adjusting the Spring Arm Tension Correct Spring Arm Position To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 23: Adjusting The Tilt
VESA Holder (the hex screw closest to the back of the Monitor). Loosening the Tilt Adjustment Screw Use your hand to adjust the tilt of the Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 24: Adjusting The Swivel
Use the 5 mm Hex Key to loosen the Swivel Adjustment Screw located at the back of the VESA Holder (the hex screw closest to the Spring Arm). To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 25 Loosening the Swivel Adjustment Screw Use your hand to adjust the swivel of the Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 26: Routing The Cables
Run the Monitor Cables along the inside of the Spring Arm. Gently push the Monitor Cables into the Cable Clip located along the inside of the Spring Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 27 Replace the Screw removed in step 4, securing the Cable Cover to the Lower Arm, being careful not to pinch the Monitor Cable between the Cable Cover and Lower Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 28: Using The 3.0 Usb Passthough Ports
Ports on the Host Computer. Connect a USB Cable to the USB Ports on the front of the Base and the other end to a compatible USB Device. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 29: Using The 3.5 Mm Audio Port
Monitor Mount Base into the Microphone Port on the Host Computer. Plug the Cable from the Microphone into the Microphone Port (pink) on the base of the Monitor Mount. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 30 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 31 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
