Align the C-Clamp Assembly with the edge of the
10.
Mounting Surface.
Slide the C-Clamp Assembly over the edge of the
11.
Mounting Surface.
From underneath the Mounting Surface, tighten the two
12.
Thumb Screws at the bottom of the C-Clamp Assembly.
Tighten the Thumb Screws until the C-Clamp Plate is
pressed tightly against the bottom of the Mounting
Surface.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

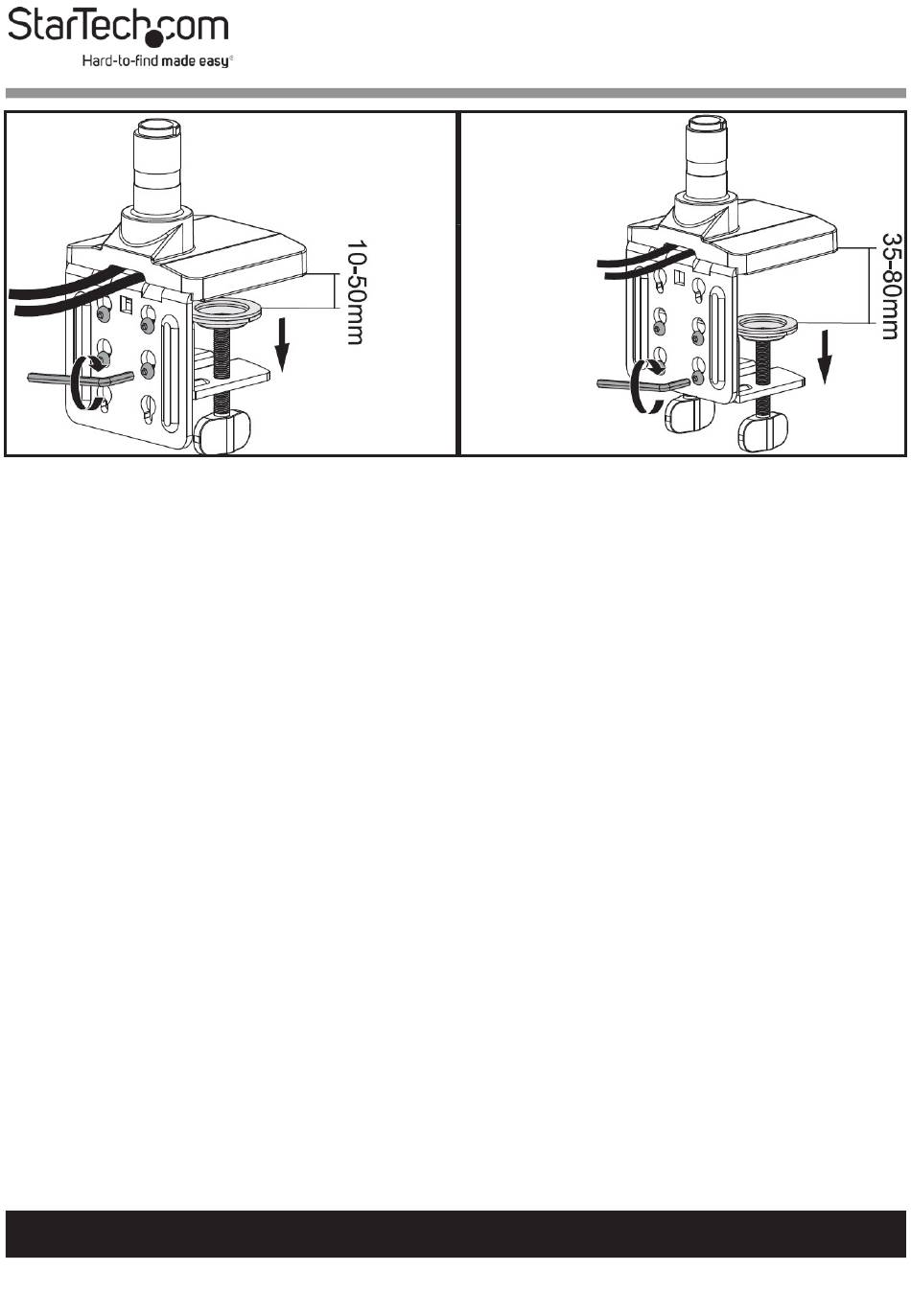

C-Clamp Dimensions
20
