StarTech.com ARMSLIMDUAL2USB3 User Manual page 34

Align the Grommet Hole on the bottom of the Base with
6.
the Grommet Hole on the Mounting Surface.
From underneath the Mounting Surface, align the center
7.
hole on the Grommet Plate with the Grommet Hole on the
Base.
Insert the Grommet Screw through the Grommet Plate and
8.
Grommet Hole and into the Grommet Hole on the Base.
Use the 6 mm Hex Key to tighten the Grommet Screw until
9.
the Grommet Plate is pressed tightly against the bottom of
the Mounting Surface.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

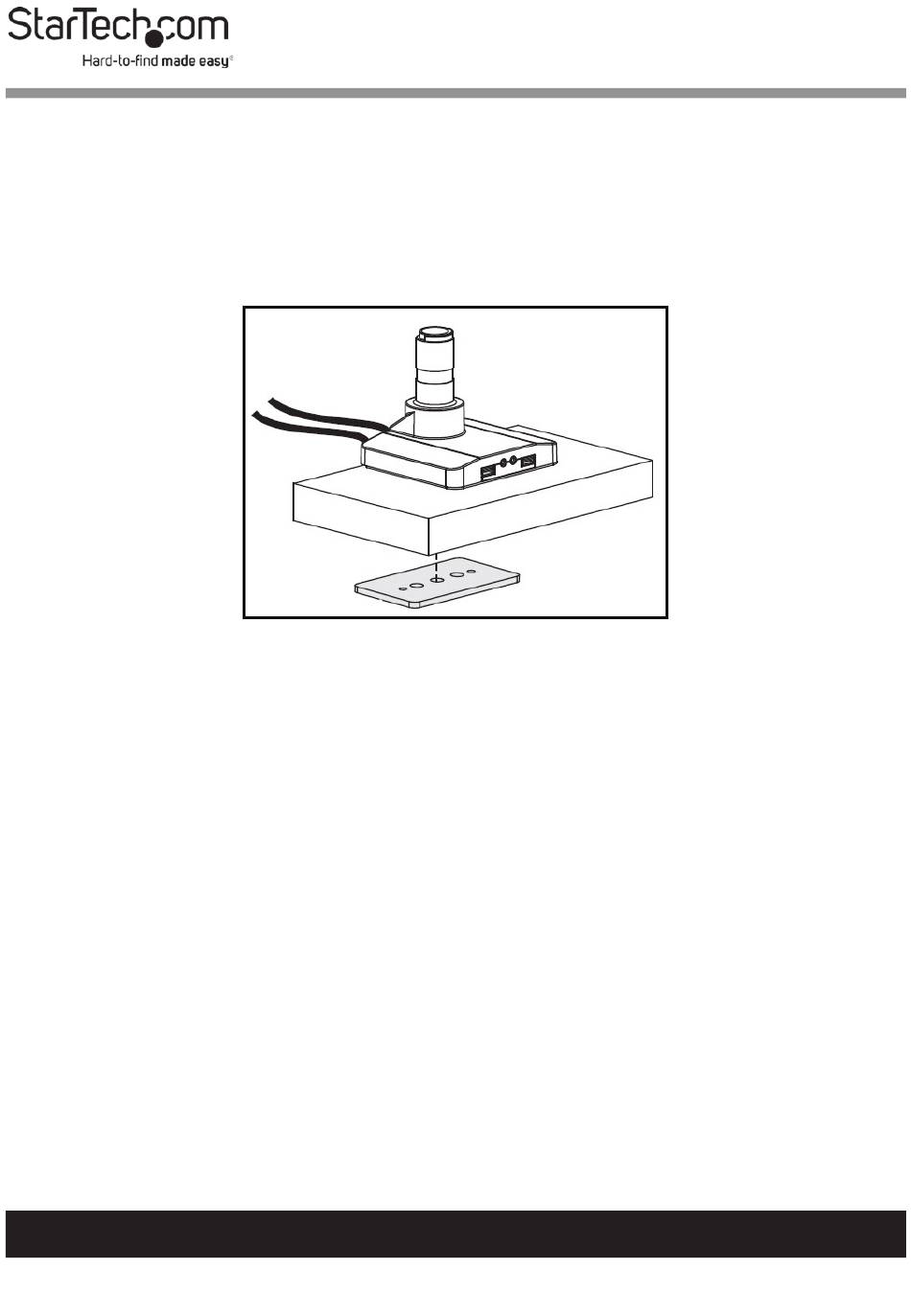

Aligning the Grommet Plate
