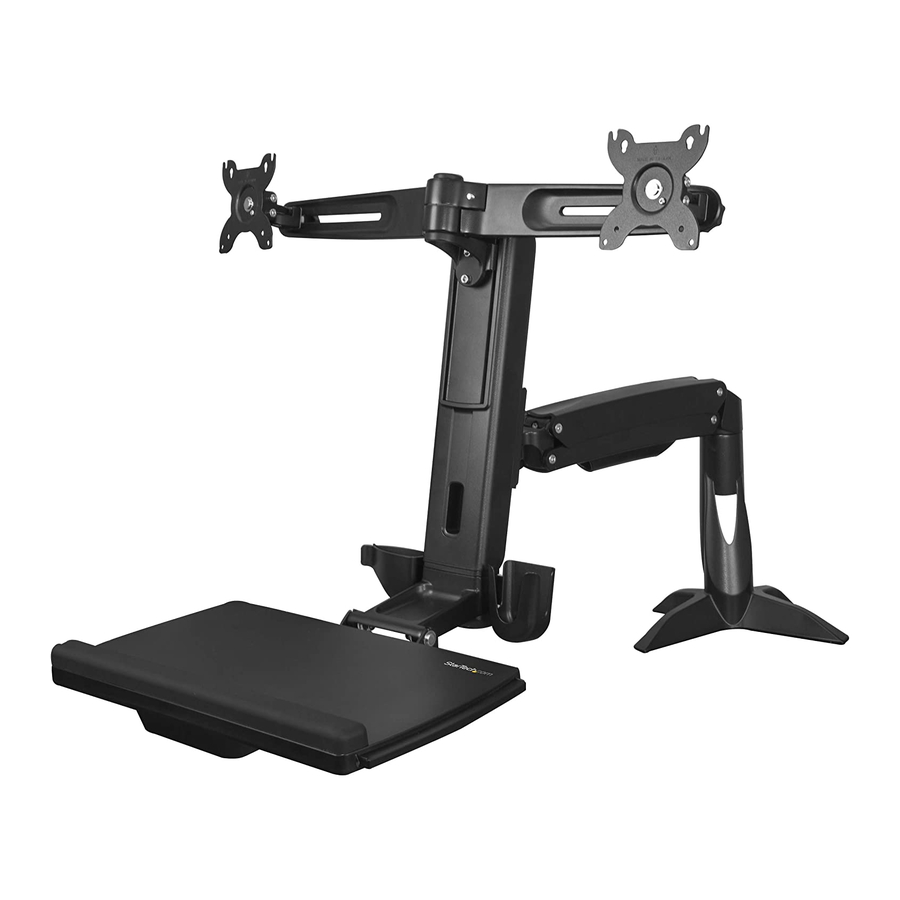

Sit-Stand Arm - Dual Monitor
ARMSTSCP2
*actual product may vary from photos
FR: Guide de l'utilisateur - fr.startech.com
DE: Bedienungsanleitung - de.startech.com
ES: Guía del usuario - es.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
IT: Guida per l'uso - it.startech.com
JP: 取扱説明書 - jp.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 09/18/2018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARMSTSCP2 and is the answer not in the manual?

Questions and answers

Related Manuals for StarTech.com ARMSTSCP2

Summary of Contents for StarTech.com ARMSTSCP2

  • Page 1 DE: Bedienungsanleitung - de.startech.com ES: Guía del usuario - es.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com IT: Guida per l’uso - it.startech.com JP: 取扱説明書 - jp.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 09/18/2018...
  • Page 2 StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby...
  • Page 3 Warning statements Dichiarazioni di avvertenza Make sure that you assemble this product according to the instructions. Assicurarsi di Assemblare il prodotto secondo le istruzioni. Read the entire manual and make sure that you understand the instructions before you start to assemble Leggere l’intero manuale e assicurarsi di aver compreso tutte le istruzioni prima di iniziare ad assemblare and use this product.
  • Page 4 注意 必ず取扱説明書に従って本製品の組み立てを行って下さい。 最初に取扱説明書を最後まで読み、 本製品の組み立て方をすべて理解してから組み立て作業を 始めて下さい。 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 本製品は、 二人がかりでの組み立てを想定しています。 手助けなしに単独で組み立てと設置を行 わないで下さい。 モニタの重量が本製品の最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした場 合、 怪我をする恐れや器物破損の恐れがあります。 グロメッ ト固定方式を使用した場合のモニタアームの耐荷重 : 2-8 kg. グロメッ ト固定方式を使用した場合のキーボードトレイの耐荷重 : 2.5 kg. クランプ固定方式を使用した場合のモニタアームの耐荷重 : 2-8 kg. クランプ固定方式を使用した場合のキーボードトレイの耐荷重 : 1.5 kg. 反動注意 ！ 本製品には、 リフト機構が組み込まれており、 積載した装置を取り外すと反動で急激に上昇 する可能性があります。 装置を取り外す前に、 本製品を最も高い位置に移動させて下さい。 この操作を 怠ると怪我をする恐れや器物破損の恐れがあります。...

  • Page 5: Table Of Contents

    Attach the monitors to the crossbars ....................40 Attach the adhesive strip ........................45 Route cables ..............................46 Remove monitors from the ARMSTSCP2 ..........47 Adjusting the ARMSTSCP2..............48 Adjust the height of the monitors ...................... 48 Adjust the tilt angle of the monitor ....................49 Adjust the tilt angle of the keyboard tray ..................
  • Page 6 Adjust the swivel effort of the monitor arm ..................52 Extend the keyboard tray ........................53 Clean the keyboard tray ................54 Technical support ...................55 Warranty information ................55 Instruction manual...

  • Page 7: Product Dimensions

    Product dimensions 896 mm (35.3 in.) 285 mm (11.2 in.) 124 mm (4.9 in.) 88 mm (3.5 in.) 98 mm (3.8 in.) 105.5 mm (4.1 in.) Instruction manual...
  • Page 8 Max 940 mm (37 in.) 397 mm to 576 mm 363 mm (14.3 in.) (15.6 in. to 22.7 in.) 120 mm (4.7 in.) 32.5 mm (1.3 in.) 8 to 50 mm (0.3 in. to 1.9 in.) 672 mm (26.4 in.) Max 715 mm (28.1 in.) Max 600 mm (23.6 in.) Instruction manual...
  • Page 9 8 to 217 mm 8 to 217 mm 449 mm (17.7 in.) (0.3 in. to 8.5 in.) (0.3 in. to 8.5 in.) 668 mm (26.3 in.) 100 mm (3.9 in.) 75 mm (2.9 in.) 52 mm (2 in.) 4.5 mm (0.2 in.) Instruction manual...

  • Page 10: Product Diagram

    Product diagram Grommet feature pictured VESA monitor mount VESA monitor mount Crossbar Crossbar Monitor arm Column Keyboard tray Base Instruction manual...

  • Page 11: Technical Specifications

    Technical specifications Type of measurement Measurement 75 x 75 mm 100 x 100 mm VESA 0° to 30° Tilt (monitor) 0° to +90° Tilt (keyboard) 360° Pivot (monitor) +/-90° Swivel (monitor arm) +/-15° Swivel (monitor) Instruction manual...
  • Page 12 Type of measurement Measurement 24 in. or less Supported monitor size 4.4 to 17.6 lb. (2 to 8 kg) Supported weight of the monitor arm when you use the desk clamp 3.3 lb. (1.5 kg) Supported weight of the keyboard tray when you use the desk clamp 4.4 to 17.6 lb.

  • Page 13: Package Contents

    Package contents Monitor arm Keyboard tray Qty: One Qty: One Column Vesa Monitor Mount Keyboard tray cap Qty: One Qty: Two Base Adhesive strip Qty: One Qty: One Instruction manual...
  • Page 14 Socket driver 6 mm hex key Qty: One Qty: One M6x10 mm screws M8x20 mm screw Qty: Five Qty: One Metal Washer Plastic Washer Qty: One Qty: One Instruction manual...
  • Page 15 Base crews M6x25mm screws Qty: Four Qty: Two 5 mm hex key M6x12 mm screws Qty: One Qty: Four M4x10mm screws Crossbar washers Qty: Eight Qty: Two Instruction manual...
  • Page 16 Knobs Wrench Qty: Two Qty: One Clamp screws Base plate Qty: Four Qty: One Grommet plate M8x65 screw Qty: One Qty: One Instruction manual...
  • Page 17 Keyboard tray cap Clamp L bracket Qty: One Qty: One Clamp screw assembly Base pad Qty: One Qty: One Crossbars Crossbar mount Qty: Two Qty: One Instruction manual...

  • Page 18: Requirements

    User manual Qty: One Requirements • Monitors that are compatible with one of the VESA mounting hole patterns that ARMSTSCP2 supports • Phillips type screwdriver • ¹/₄ inch drive ratchet Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ARMSTSCP2.

  • Page 19: Assembly

    • At least 0.3 inches (8 mm) of clearance between the table or desk and the wall • Monitors that weigh between 4.4 and 17.6 lb. (2 to 8 kg) Note: When you use the desk clamp assembly to attach the ARMSTSCP2, the keyboard tray supports up to 3.3 lb. (1.5 kg) of weight.

  • Page 20: Assemble The Base Attachment

    Assemble the base attachment Based on your setup, follow the steps to attach the grommet assembly or the desk clamp. Attach the grommet assembly 1. Line up the base plate with the assembly holes on the underside of the base. 2.
  • Page 21 4. Remove the adhesive backing from the base pad and affix the base pad to the underside of the base. (figure 2) figure 2 Base Base pad Instruction manual...
  • Page 22 5. Position the base over the grommet hole in your desk or table. 6. Thread the M8x65 screw up through the underside of the grommet plate. 7. Place the grommet plate and screw assembly against the grommet hole on the underside of your desk or table.
  • Page 23 Attach the desk clamp to a desk or table against a wall To attach the desk clamp to a desk or table that is against a wall, you need at least 8 mm of space between the edge of the surface that you’re attaching the ARMSTSCP2 to and the wall.
  • Page 24 4. Remove the adhesive backing from the base pad and affix the base pad to the underside of the clamp L bracket. (figure 5) figure 5 Base Base pad Clamp L bracket Instruction manual...
  • Page 25 5. Slide the base between the desk or table and the wall. (figure 6) figure 6 Base Min 8 mm Instruction manual...
  • Page 26 6. Line up the clamp screw assembly with the assembly holes in the clamp L bracket. (figure 7) figure 7 Clamp screw assembly Clamp L bracket Instruction manual...
  • Page 27 7. Insert the four clamp screws through the clamp screw assembly and into the clamp L bracket. 8. Use the 5 mm hex key to tighten the screws. (figure 8) figure 8 Clamp screws 5 mm hex key Instruction manual...
  • Page 28 9. Use the 6 mm hex key to tighten the screws in the clamp screw assembly until the plates are tight against your desk or table. (figure 9) figure 9 Plate Screw 6 mm hex key Instruction manual...
  • Page 29 Attach the desk clamp to a desk or table 1. Line up the clamp L bracket with the assembly holes on the underside of the base. 2. Insert the four base screws through the base plate and into the base. (figure 10) 3.
  • Page 30 4. Remove the adhesive backing from the base pad and affix the base pad to the underside of the base. (figure 11) figure 11 Base Base pad Clamp L bracket Instruction manual...
  • Page 31 5. Line up the clamp screw assembly with the assembly holes in the clamp L bracket. 6. Insert the four clamp screws through the clamp screw assembly and into the clamp L bracket. 7. Use the 5 mm hex key to tighten the screws. (figure 12) figure 12 Base Clamp L bracket...
  • Page 32 8. Slide the assembly over the edge of your desk or table. (figure 13) figure 13 Base 8 and 50 mm Instruction manual...
  • Page 33 9. Use the 6 mm hex key to tighten the screws in the clamp screw assembly until the plates are tight against your desk or table. (figure 14) figure 14 Plate Screw 6 mm hex key Instruction manual...

  • Page 34: Attach The Monitor Arm To The Base

    Attach the monitor arm to the base 1. Place the monitor arm onto the projection on the base. 2. Place the plastic washer into the joint in the monitor arm. 3. Place the metal washer onto the plastic washer. 4. Insert the M8x20 mm screw through the washers and into the joint in the monitor arm.

  • Page 35: Attach The Column To The Keyboard Tray

    Attach the column to the keyboard tray 1. Position the column with the cutout at the bottom half of the column. 2. Line up the assembly holes on the bottom of the column with the assembly holes between the holders on the keyboard tray. (figure 16) figure 16 Column Holder...
  • Page 36 3. On the underside of the keyboard tray, insert the four M6x12 mm screws through the keyboard tray and into the column. (figure 17) 4. Use the 5 mm hex key to tighten the screws in place. figure 17 5 mm hex key M6x12 mm screw Keyboard tray Instruction manual...
  • Page 37 5. On the underside of the keyboard tray, place the keyboard tray cap over the assembly holes. 6. Insert the two M6x25 mm screws into the keyboard tray cap and keyboard tray. (figure 18) 7. Use the 5 mm hex key to tighten the screws in place. figure 18 5 mm hex key M6x25 mm screw...

  • Page 38: Attach The Column To The Monitor Arm

    Attach the column to the monitor arm 1. Insert one of the M6x10 mm screws into the top hole in the plate on the back of the column. (figure 19) Note: Do not tighten the M6x10 mm screw and make sure that you leave between 4 and 5 mm of space between the plate and the screw.
  • Page 39 2. Hook the M6x10 mm screw attached to the column into the key-shaped hole at the top of the plate on the monitor arm. (figure 20) figure 20 M6x10 mm screw Key-shaped hole Monitor arm Instruction manual...
  • Page 40 3. Insert the M6x10 mm screws into the lower two holes on the plate on the monitor arm. (figure 21) 4. Use the 5 mm hex key to tighten all three of the screws. figure 21 Monitor arm M6x10 mm screw 5 mm hex key Instruction manual...

  • Page 41: Attach The Crossbars To The Column

    Attach the crossbars to the column 1. Hook the crossbar mount onto the plate on the column. (figure 22) figure 22 Crossbar mount Column Instruction manual...
  • Page 42 2. Insert two M6x10 mm screws through the holes under the crossbar mount and into the plate on the column. 3. Use the 5 mm hex key to tighten the screws in place. (figure 23) figure 23 Crossbar mount M6x10 mm screw Column 5 mm hex key Instruction manual...
  • Page 43 4. Slide the crossbars onto the crossbar mount so that the flat sides of the crossbars are against the column. (figure 24) figure 24 Crossbar Crossbar Crossbar mount Column Instruction manual...
  • Page 44 5. If the crossbars are loose, use the wrench to tighten the bolts in each of the crossbars. (figure 25) figure 25 Wrench Crossbar Crossbar Bolt Column Instruction manual...

  • Page 45: Attach The Vesa Monitor Mounts To The Crossbars

    Attach the VESA monitor mounts to the crossbars 1. Insert the rectangular projection on the back of one of the VESA monitor mounts into the slot at the front of one of the crossbars. 2. At the back of the crossbars, insert one of the knobs through one of the crossbar washers and into the back of the VESA monitor mount.

  • Page 46: Attach The Monitors To The Crossbars

    Warning! Attaching a monitor is a two-person job. Do not attempt to complete this task by yourself. ARMSTSCP2 is a designed to be used with two monitors that weigh the same. If you attach monitors that are different weights to the ARMSTSCP2, you do so at your own risk.
  • Page 47 2. Carefully slide the M4x10 mm screws into the top slots of one of the VESA monitor mounts attached to one of the crossbars. (figure 28) figure 28 M4x10 mm screw Slot Instruction manual...
  • Page 48 3. Insert two of the M4x10 mm screws into the mounting holes in the bottom two holes in the VESA monitor mount and into the monitor. 4. Use a Phillips type screwdriver to tighten all four of the screws. 5. Repeat steps 1 to 5 to attach the second monitor to the other VESA monitor mount. (figure 29) figure 29 M4x10 mm screw...
  • Page 49 Use the 75x75 VESA mounting hole pattern to attach the monitors 1. Insert two of the M4x10 mm screws into the mounting holes that are located closest to the top of one of the monitors. (figure 30) Note: Do not tighten the M4x10 mm screws, and make sure that you leave between 3 and 4 mm of space between the screws and the monitor.
  • Page 50 2. Carefully hang the M4x10 mm screws onto the keyhole-shaped holes in one of the VESA monitor mounts attached to one of the crossbars. 3. Insert two of the M4x10 mm screws into the mounting holes in the bottom of the VESA monitor mount and into the monitor.

  • Page 51: Attach The Adhesive Strip

    Attach the adhesive strip 1. If necessary, cut the adhesive strip to fit the length of your keyboard. 2. Separate the two sides of the adhesive strip. 3. Remove the backing from one half of the adhesive strip and stick it to the back of your keyboard.

  • Page 52: Route Cables

    Route cables 1. Run your cable along the column and through the slot at the bottom of the column. 2. At the top of the cable cover, squeeze the tabs and slide the cable cover up to unhook the tabs at the bottom of the cable cover from the slots in the monitor arm, and lift the cable cover off of the monitor arm.

  • Page 53: Remove Monitors From The Armstscp2

    Remove monitors from the ARMSTSCP2 Warning: Stored energy hazard! The column contains a lift mechanism that could move up quickly when you remove the monitors from the product. Before you remove the monitors, move the monitors to the highest position. Failure to do so could result in injury or property damage.

  • Page 54: Adjusting The Armstscp2

    Adjusting the ARMSTSCP2 Adjust the height of the monitors Caution! When you adjust the monitors, make sure that you move both monitors at the same time. • To adjust the height of the monitors, grasp the bottoms of both monitors and move them up or down.

  • Page 55: Adjust The Tilt Angle Of The Monitor

    Adjust the tilt angle of the monitor 1. If necessary, swivel the monitors so that you can access the two screws in the sides of each of the VESA monitor mounts. 2. Use the 5 mm hex key to loosen the two screws in the side of the VESA monitor mount that you want to adjust.

  • Page 56: Adjust The Tilt Angle Of The Keyboard Tray

    Adjust the tilt angle of the keyboard tray • Pull up or push down on the keyboard tray to adjust it from 0 to 90°. (figure 37) figure 37 Keyboard tray Instruction manual...

  • Page 57: Counterbalance The Weight Of The Workstation

    Counterbalance the weight of the workstation The ARMSTSCP2 features a one-touch height adjustment design that enables you to easily raise or lower the entire workstation, including the keyboard tray. To use the one-touch height adjustment feature, you need to counterbalance the weight of the workstation.

  • Page 58: Adjust The Swivel Effort Of The Monitor Arm

    Adjust the swivel effort of the monitor arm • To increase or decrease the swivel effort of the monitor arm, use the 6 mm hex key to turn the screw in the plate on the back of the column to the right or left. (figure 39) Caution! When you loosen the screw, make sure that you don’t remove the screw from the joint.

  • Page 59: Extend The Keyboard Tray

    Extend the keyboard tray You can adjust the keyboard tray so that it extends to the left or right. • Pull the extension to the left or right. (figure 40) figure 40 Keyboard tray Extension Extension Instruction manual...

  • Page 60: Clean The Keyboard Tray

    Clean the keyboard tray You can remove the extension and the plastic cover from the wrist rest to clean them. 1. To remove the plastic cover from the wrist rest, carefully peel it off of the keyboard tray. (figure 41) 2.

  • Page 61: Technical Support

    Limitation of liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
