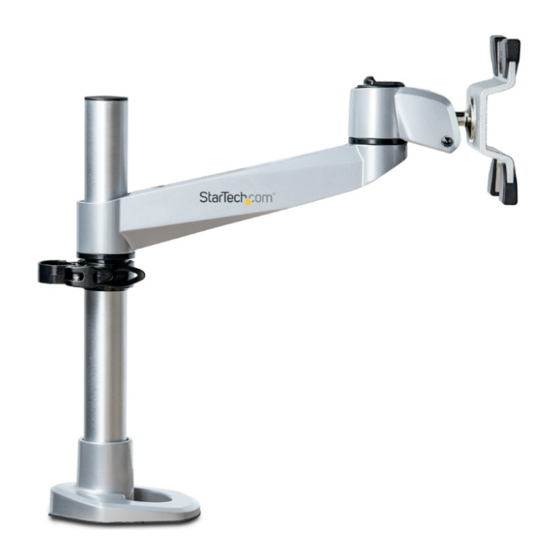

- Page 1 Desk-Mount Monitor Arm | Premium | Silver Actual product may vary from photos User Manual SKU#: ARMPIVOTB2 For the latest information and specifications visit www.startech.com/ARMPIVOTB2 Manual Revision: 09/13/2019...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Warning Statements
Il prodotto è in grado di supportare i seguenti pesi: 14 kg. • Il prodotto è destinato all’uso in ambienti interni. Se ne sconsiglia l’impiego in ambienti esterni. • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 • 本製品で定められた最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした 場合、 怪我をする恐れや器物破損の恐れがあります。 本製品は、 モニター1台あたり14kgまで支 持できます。 • 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 5: Safety Statements
Säkerhetsåtgärder • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Table Of Contents
Attaching a Monitor Using the VESA Mount ................... 19 Attaching an iMac Monitor ........................20 Attaching the Monitor Mount ......................24 Removing the Monitor Mount .............26 Adjusting the Monitor Tilt ..............26 Routing the Cables .................27 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Diagram
Product Diagram Support Pole Swivel Arm Cable-Management Monitor Mount Clip C- Clamp To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Dimensions
Product Dimensions To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Rotation
Product Rotation To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Information
75x75 100x100 Tilt +900 to -150 Screen size Maximum 30 in. (762 mm) Rotate 3600 Swivel 3600 Weight/Load Capacity 30.8 lb. (14 kg) Lift 7.87 in. (200 mm) To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 11: Package Contents
Package Contents Monitor Mount Swivel Arm Qty: One Qty: One Support Pole w/ C-Clamp Flange Mount Qty: One Qty: One To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 12 VESA Screws Torx Key Qty: Four Qty: One 3 mm Hex Key 4 mm Hex Key Qty: One Qty: One Access Card Monitor Mount Screws Qty: One Qty: Two To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 13: Installation
Use the M3 Hex Keys to remove the four Hex Screws that are holding the base of the Support Pole to the C-Clamp. Removing the Four Hex Screws To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 14 Rod on the Knob. Place the Knob through the Grommet Hole in the desk or table and into the Support Pole. Turn the Knob clockwise to tighten it. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Using The C-Clamp
Skip to step 5 if you do not have to reassemble the C-Clamp. Insert the Knob through the hole in the C-Clamp. Attaching the Knob to the C-Clamp Place a Washer onto the Knob. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 16 Turn the Desk Mount over and use one of the M3 Hex Keys to insert four Hex Screws through the C-Clamp and into the base of the Mount. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 17 Attaching the Hex Screws to the C-Clamp Using your hand, tighten the Knob until the C-Clamp is pressed tightly against the mounting surface. Securing the C-Clamp to the Mounting Surface To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 18: Mounting The Monitor Arm
Adjusting the C-Clamp Mounting the Monitor Arm Slide the Swivel Arm onto the Support Pole, so that the Swivel Arm resting on the Cable-Management Clip. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 19 Tighten the Swivel Arm using the Adjustment Screw located on the side of the Swivel Arm. Be careful not to over-tighten the Swivel Arm. The Swivel Arm should be secure but free enough to rotate. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 20: Attaching A Monitor Using The Vesa Mount
Warning! Do not over-tighten the screws. If you encounter resistance while you’re tightening the screws, stop tightening. Failure to do so could result in damage to the monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 21: Attaching An Imac Monitor
Only the Access Card should be used to disengage the lock- ing mechanism. Tilt the iMac Monitor and Insert the Access Card To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 22 While sliding the Flange overtop of the Mounting Bracket, align the center hole and the eight holes in the Flange with the eight threaded holes and alignment pin on the Mounting Bracket. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 23 Installing the Flange Slide the Plastic Caps (x 4) over the ends of the Monitor Mount, to protect the surface of the iMac Monitor. Installing the Plastic Caps To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 24 Insert the 2 Monitor Mount Screws through the Monitor Mount and into the Flange. Use the Hex Key (4 mm) to tighten the Monitor Mount Screws. Be careful not to over-tighten the Monitor Mount Screws. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 25: Attaching The Monitor Mount
Mounting Hole on the Monitor Mount with the Mounting Peg on the top Swivel Arm. Slide the Mounting Hole on the Monitor Mount over the Mounting Peg until it clicks into place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 26 Using the 4 mm Hex Key, adjust the swivel tension of the Monitor Mount by loosening or tightening the Hex Screw located on the Monitor Mount next to the Mounting Hole. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 27: Removing The Monitor Mount
Monitor but it is still adjustable. Note: The screw cap located on the opposite side of the Hex Screw is not used for tilt adjustments. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 28: Routing The Cables
Cable-Management System. Thread the Cable through the hole in the Swivel Arm. Run the Cable through the Cable-Management Clip on the side of the Support Pole. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 29 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 30 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
