Adjusting the Rotation

Using the 4 mm Hex Key, loosen the four Screws on the
1.
back of the VESA Mount.
Adjust the rotation of the Crossbar +4
2.
Use the 4 mm Hex Key to retighten the four Screws.
3.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support

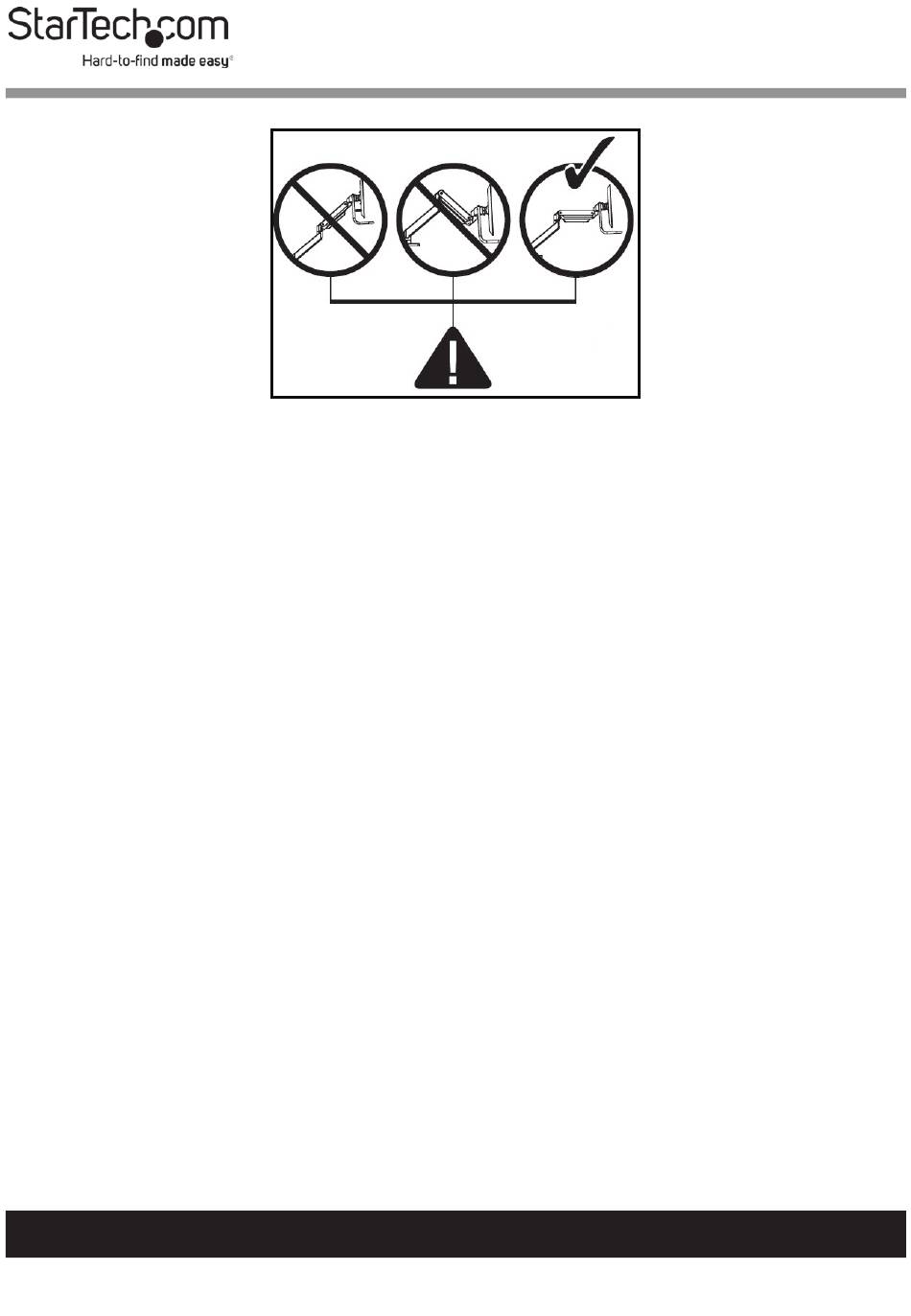

Correct Upper Arm Position
or -4
0
48
.
0
