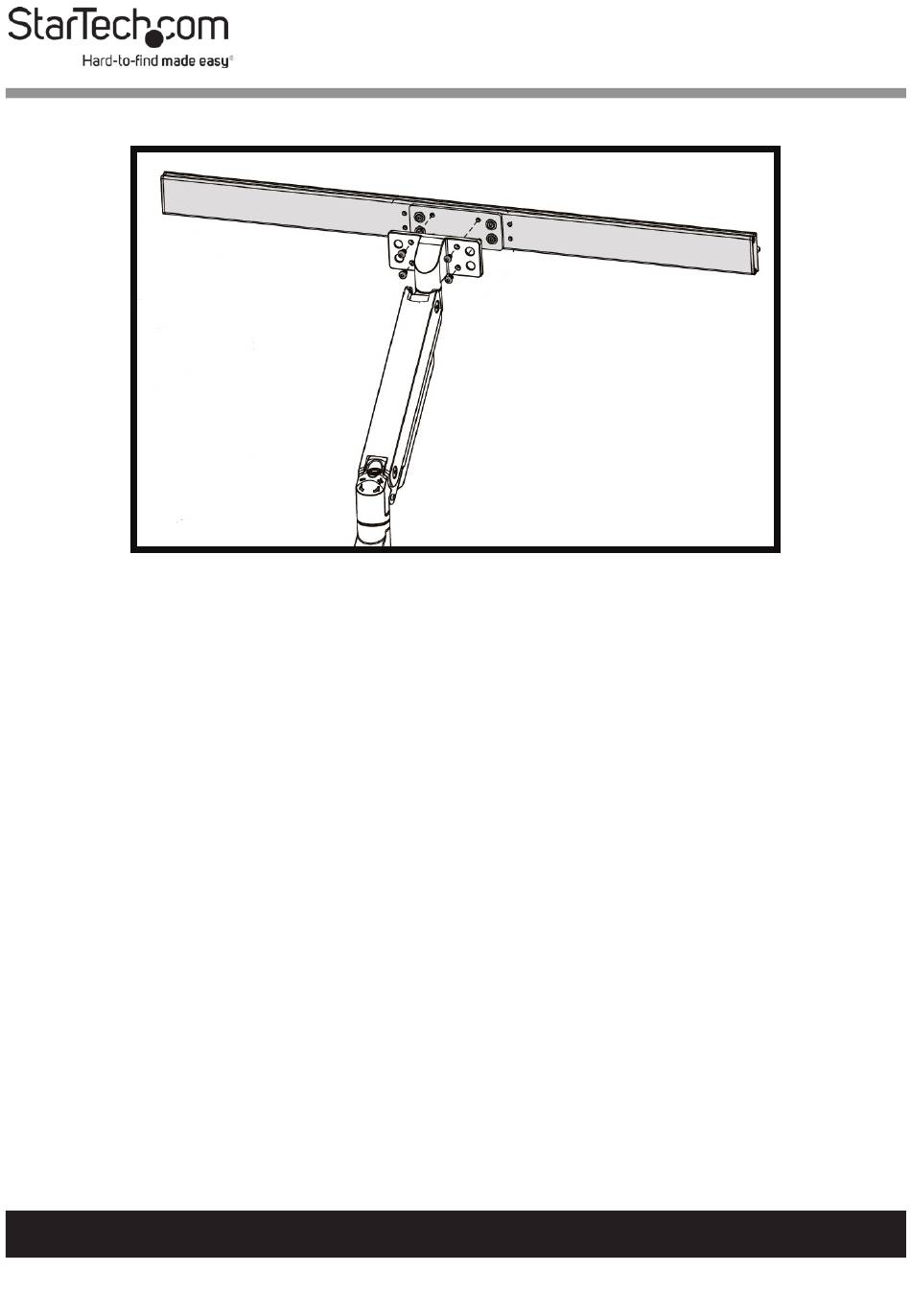

Aligning the Crossbar With the Upper Arm
Insert the Button Head Hex Screws through the Screw
23.
Holes on the Crossbar and into the Screw Holes on the
Mount.
Using the 4 mm Hex Key, tighten the Button Head Hex
24.
Screws, being careful not to over-tighten.
To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support
27
