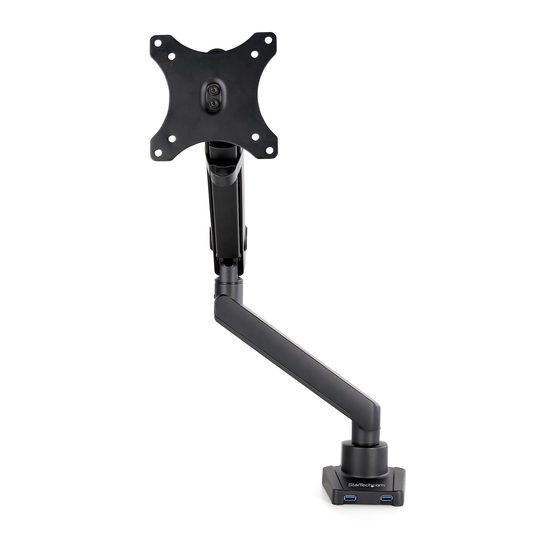

- Page 1 Slim Single Monitor Mount with USB 3.0 Ports Actual product may vary from photos User Manual SKU#: ARMSLIM2USB3 For the latest information and specifications visit www.startech.com/ARMSLIM2USB3 Manual Revision: 04/24/2020...
-
Page 2: Compliance Statements
This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual... -
Page 3: Warning Statements
• Assemblez ce produit conformément aux instructions. • Ne dépassez pas la capacité pondérale du produit. Une surcharge du produit peut entraîner des blessures ou des dommages matériels. Ce produit peut supporter 8 kg. • Ce produit est uniquement destiné à une utilisation en intérieur et ne doit pas être utilisé à l’extérieur. Warnhinweise • Beachten Sie bei der Montage dieses Produkts die Montageanweisungen. • Überschreiten Sie nicht die Tragkraft dieses Produkts. Ein Überladen dieses Produkts kann zu Verletzungen oder zur Beschädigung des Produkts führen. Dieses Produkt ist für folgendes Gewicht geeignet: 8 • Dieses Produkt ist nur zum Gebrauch in Innenräumen vorgesehen und sollte nicht im Freien verwendet werden. Dichiarazioni di avvertenza • Assicurarsi di Assemblare il prodotto secondo le istruzioni. • Non superare la capacità di carico del prodotto. Il sovraccarico del prodotto potrebbe causare danni o lesioni. Il prodotto è in grado di supportare i seguenti pesi: 8 kg. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 4 • El uso de este producto es solo para interiores y no debe utilizarse en exteriores. Waarschuwingen • Zorg dat u dit product volgens de instructies in elkaar zet. • Overschrijd de maximale capaciteit van dit product niet. Overbelasting van dit product kan letsel of materiële schade veroorzaken. Dit product ondersteunt het volgende gewicht: 8 kg. • Dit product is alleen bedoeld voor binnengebruik en mag niet buiten worden gebruikt. 注意 • 必ず取扱説明書に従って本製品の組み立てを行って下さい。 • 本製品で定められた最大積載重量を超えないようにして下さい。 最大積載重量をオーバーした 場合、 怪我をする恐れや器物破損の恐れがあります。 本製品は、 モニター1台あたり8kgまで支持 できます。 • 本製品は、 室内での使用を想定しています。 戸外では使用しないで下さい。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 5: Safety Statements
Mesures de sécurité • Les câbles (y compris les câbles d’alimentation et de chargement) doivent être placés et acheminés de façon à éviter tout risque électrique, de chute ou de sécurité 安全対策 • ケーブル （電源ケーブルと充電ケーブルを含む） は、 適切な配置と引き回し を行い、 電気障害やつまづきの危険性など、 安全上のリスクを回避するよう にしてください。 Misure di sicurezza • I cavi (inclusi i cavi di alimentazione e di ricarica) devono essere posizionati e stesi in modo da evitare pericoli di inciampo, rischi di scosse elettriche o pericoli per la sicurezza. Säkerhetsåtgärder • Kablar (inklusive elkablar och laddningskablar) ska dras och placeras på så sätt att risk för snubblingsolyckor och andra olyckor kan undvikas. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 6: Table Of Contents
Adjusting the Monitor Mount ..............31 Adjusting the Spring Arm Tension ...................... 31 Adjusting the Tilt ............................33 Routing the Cables .................34 Using the 3.0 USB Passthough Ports ...........36 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 7: Product Diagram
Product Diagram VESA Mount USB Ports Upper Arm Cable Clip Lower Arm Grommet Clamp C-Clamp To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 8: Product Dimensions
Product Dimensions To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 9: Product Rotation
Product Rotation To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 10: Product Information
Product Information Pack Contents Base Clamp Assembly Upper Arm Qty: 1 Qty: 1 Lower Arm VESA Mount Qty: 1 Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 11 Tool Clip Grommet Plate Qty: 1 Qty: 1 Grommet Screw 3 mm Hex Key Qty: 1 Qty: 1 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 12 6 mm Hex Key M4 x 12 mm Screws Qty: 1 Qty: 4 M5 x 12 mm Screws Washers Qty: 4 Qty: 4 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 13: Product Specifications
Product Specifications 75 x 75 100 x 100 VESA - 90 to + 90 Rotation - 90 to + 90 Tilt 17.6 lb (8 Kg) Weight To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 14 15” to 34” Screen Size to +90 Swivel To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 15: Requirements
Requirements Tool Phillips Head Screwdriver x 1 • Display 15” to 32” Display • Optional USB Cables x 2 • USB Compatible Devices x 2 • To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 16: Assembling The Monitor Mount Using The C-Clamp
C-Clamp Screw is located in the center of the Mounting Peg on the Base Clamp Assembly. Loosening the C-Clamp Screw Align the C-Clamp with the edge of the Mounting Surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 17 While supporting the C-Clamp under the Mounting Surface, use the 6 mm Hex Key to tighten the C-Clamp Screw until the C-Clamp Plate is pressed tightly against the bottom of the Mounting Surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 18 Mounting Peg on the top of the Base Clamp Assembly. Slide the Mounting Hole on the Lower Arm over-top of the Mounting Peg on the Base Clamp Assembly. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 19 Mounting the Lower Arm to the Base Clamp Assembly Using the Flat Head Tip on the 3 mm Hex Key, tighten the Screw on the Lower Arm securing it to the Base Clamp Assembly. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 20 Align the Mounting Peg on the bottom of the Upper Arm with the Mounting Hole on the top of the Lower Arm. Slide the Mounting Peg on the Upper Arm into the Mounting Hole on the Lower Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 21 Mounting the Upper Arm to the Lower Arm Using the Flat Head Tip on the 3 mm Hex Key, tighten the Screw on the Lower Arm securing it to the Upper Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 22: Assembling The Monitor Mount Using The Grommet Clamp
Clamp Assembly. The C-Clamp Screw is located in the center of the Mounting Peg on the Base Clamp Assembly. Once the C-Clamp Screw is removed the C-Clamp will also detach from the Base Clamp Assembly. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 23 Grommet Hole on the Mounting Surface. Insert the Grommet Screw through the center of the Mounting Peg on the Base Clamp Assembly and out the Grommet Hole on the Mounting Surface. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 24 Inserting the Grommet Screw Underneath the Mounting Surface, thread the Grommet Hole on the Grommet Plate onto the Grommet Screw. Aligning the Grommet Plate To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 25 Mounting Peg on the top of the Base Clamp Assembly. Slide the Mounting Hole on the Lower Arm over-top of the Mounting Peg on the Base Clamp Assembly. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 26 Mounting the Lower Arm to the Base Clamp Assembly Use the Flat Head Tip on the 3 mm Hex Key, to tighten the Screw on the Lower Arm securing it to the Base Clamp Assembly. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 27 Align the Mounting Peg on the bottom of the Upper Arm with the Mounting Hole on the top of the Lower Arm. Slide the Mounting Peg on the Upper Arm into the Mounting Hole on the Lower Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 28 Mounting the Upper Arm to the Lower Arm Use the Flat Head Tip on the 3 mm Hex Key, to tighten the Screw on the Lower Arm securing it to the Upper Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 29: Mounting The Monitor
Align the Screw Holes on the VESA Mount with the VESA Mounting Holes on the back of the Monitor. The VESA Mount can support a 75 x 75 or 100 x 100 mounting pattern. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 30 Screws, stop tightening. Failure to do so could result in damage to the Monitor. Pull the VESA Clip on the VESA Holder back towards the Spring Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
- Page 31 VESA Holder and the VESA Clip, once released will hold the top of the Mounting Plate in place. While holding the Monitor in place, release the VESA Clip, securing the Monitor in place. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 32: Adjusting The Monitor Mount
Use the 6 mm Hex Key to rotate the Adjustment Screw located at the back of the Spring Arm, just above the joint. Rotate clockwise to increase tension or counter clockwise to decrease tension. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 33 Adjusting the Spring Arm Tension Note: Be careful not to pinch your hand when making ad- justments to the Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 34: Adjusting The Tilt
Loosening the Tilt Adjustment Screw Use your hand to adjust the tilt of the Monitor. Note: Be careful not to pinch your hand when making ad- justments to the Monitor. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... -
Page 35: Routing The Cables
Run the Monitor Cables along the inside of the Upper Arm. Gently push the Monitor Cables into the Cable Clip located on the inside of the Upper Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 36 Replace the Cable Cover removed in step 1 by sliding it down the Lower Arm, securing the Cable Cover to the Lower Arm. Be careful not to pinch the Monitor Cable between the Cable Cover and Lower Arm. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support...
-
Page 37: Using The 3.0 Usb Passthough Ports
Ports on the Host Computer. Connect a USB Cable to the USB Ports on the front of the Base and the other end to a compatible USB Device. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.startech.com/support... - Page 38 Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product.
- Page 39 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
