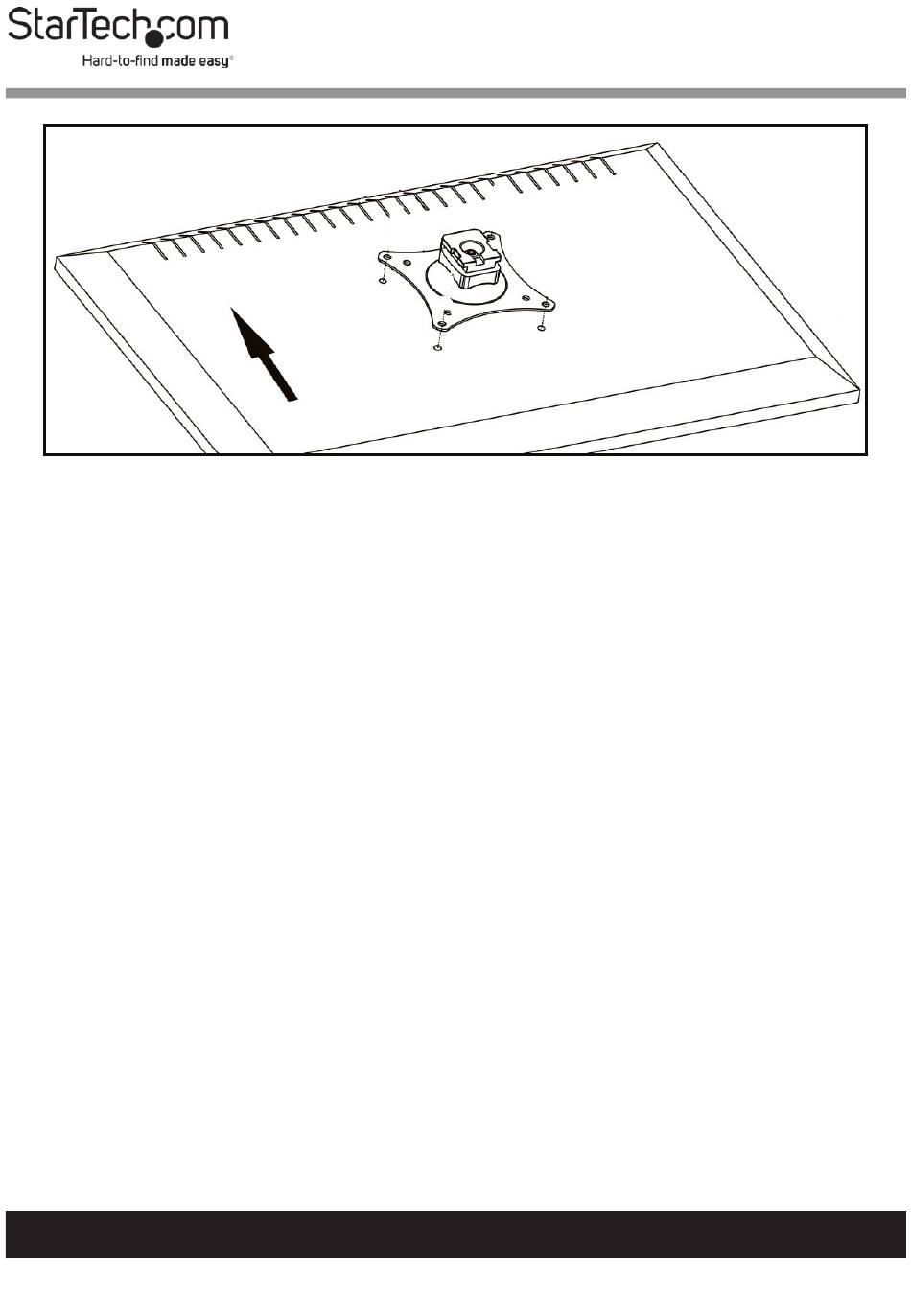

Aligning the VESA Mount with a Monitor
Select the appropriate hardware for mounting the VESA
4.
Mount to the back of the Monitor either M4 x 12 mm, M5 x
12 mm, or customer sourced screws.
Insert the appropriate Screws through the Screw Holes on
5.
the VESA Mount and into the VESA Mounting Holes on the
back of the Monitor.
Using a Phillips Head Screwdriver (or appropriate
6.
screwdriver) tighten the screws.
Note: Do not over-tighten the Screws. If you encounter re-
sistance while you're tightening the Screws, stop tightening.
Failure to do so could result in damage to the Monitor.
